Aluminum Film Backed Fleece Picnic Mats: Buyer Specs

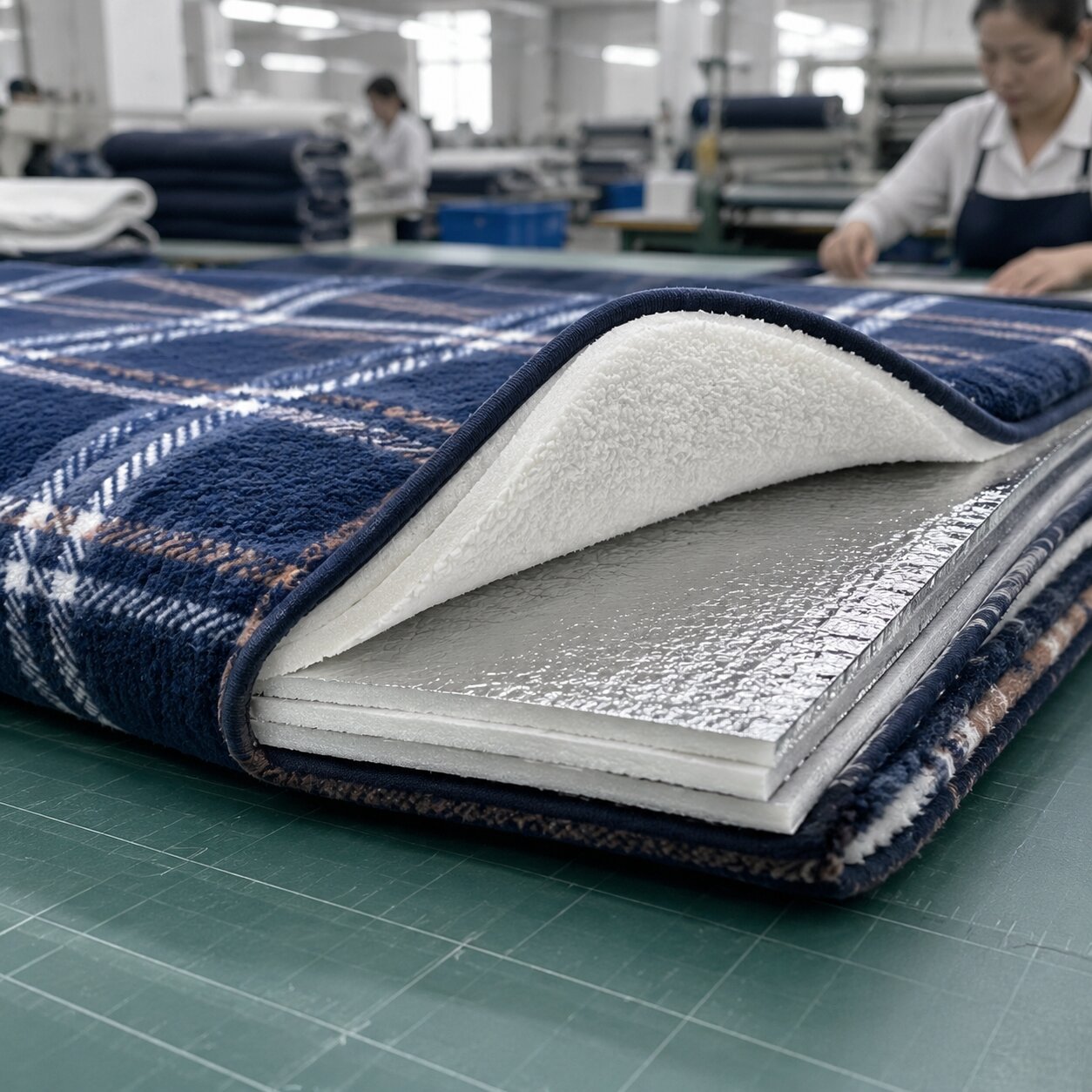

Layered aluminum film backed fleece picnic mat showing 180gsm fleece face, 3mm XPE foam core and reflective backing

Layer construction: what 180gsm fleece, 3mm foam and aluminum film actually do

A common retail construction for aluminum film backed fleece picnic mats is 180gsm polyester polar fleece on the face, a 3mm closed-cell polyethylene foam core, and a metallised film or aluminised PE/PET composite on the ground side. The fleece gives handfeel and printable colour area. The foam gives cushioning and most of the conductive thermal break. The backing film gives wipe-clean behaviour, visual shelf impact and limited radiant-reflection benefit under the right conditions.

Do not assume every “XPE” offer is identical. In China supply chains, XPE usually means chemically cross-linked polyethylene foam, but some quotations use the term loosely for IXPE or even upgraded EPE. Ask the factory to declare foam type, nominal density, thickness tolerance and whether the foam is chemically cross-linked, irradiation cross-linked or non-cross-linked EPE. For picnic mats, practical XPE density is often around 25-45kg/m³. Lower-density foam can reduce cost and weight, but it dents faster, recovers poorly after compression and makes the mat feel hollow. EPE substitution is one of the most common hidden cost-downs.

A 3mm foam layer should not be written only as “3mm”. Specify tolerance and measurement condition. A practical bulk target is 3.0mm nominal, with tolerance around ±0.3mm on incoming foam sheet and no systematic roll average below the approved sample. Thickness should be checked after lamination and after 24 hours of relaxed recovery, because hot lamination, folding pressure and cold transit can temporarily reduce apparent thickness.

For 180gsm fleece, normal commercial tolerance is often ±5% if the supplier controls knitting and brushing, but ±8% may be seen in aggressive price programs. Finished mat GSM depends on fleece, foam density, film thickness, lamination pick-up and binding. A 150 x 200cm mat may finish around 1.0-1.3kg before retail packaging; a 200 x 200cm family size may move toward 1.5-1.8kg. Put both component specs and finished weight tolerance on the PO, because a supplier can meet fleece GSM while reducing foam density or using an ultra-thin backing film.

For related foam, backing and picnic-mat construction trade-offs, see camping ground mat construction, 420D Oxford 2mm EPE foam picnic mats and 500gsm needle-punched polyester felt picnic rugs.

Buyer specification table for RFQ and PO control

Use a compact table in the RFQ so factories quote the same product. The values below are typical starting points, not universal guarantees; adjust them to retail channel, target price and test history.

Item	Recommended buyer spec	QC note
Face fleece	180gsm polyester polar fleece, commercial tolerance ±5% preferred, ±8% maximum by agreement	Check GSM by ISO 3801 or ASTM D3776 on conditioned samples; compare shade and brushing to approved sample
Foam core	3.0mm closed-cell PE foam; XPE declared by type; density commonly 25-45kg/m³	Reject EPE substitution unless pre-approved; thickness tolerance around ±0.3mm after recovery
Backing film	Metallised PET/PE or aluminised PE composite, typically 12-20micron film layer depending on handfeel and scuff target	Check pinholes, fold whitening, scuffing and delamination at hinges
Finished weight	150 x 200cm commonly around 1.0-1.3kg before packaging; set approved-sample tolerance ±5-8%	Use weight as a shortcut check for foam density or film cost-down
Finished size	State open size and folded size; practical open-size tolerance often ±2cm or ±2%, whichever is tighter	Measure after 24 hours relaxation, not immediately after tight unpacking
Odor limit	Internal 0-5 odor scale; target ≤2.0 or ≤2.5 after 24h sealed-pack conditioning	Use at least three trained inspectors; reject sharp solvent, burnt or sour foam odor
Water resistance	Backing composite target 1,000-2,000mm hydrostatic head by ISO 811 or AATCC 127 before sewing if wet-ground claim is used	Separate flat-material result from finished seam leakage risk
Seam and handle	Bound edge even, no skipped stitches; handle bar-tacks on 25mm or 38mm PP webbing	Handle pull target commonly 10-15kg static load for 10 seconds without tearing for retail picnic mats
Packing	Folded sample approved after packed-age review; carton loading fixed by PO	Avoid over-compression; define carton dimensions, pcs/carton, gross weight and moisture controls

PO clause example: “Bulk must match signed pre-production sample for fleece handfeel, foam recovery, film brightness, fold pattern and odor. Foam shall be declared XPE closed-cell PE, 3.0mm nominal, density within approved-sample range, with no EPE substitution. Finished open size 150 x 200cm ±2cm. Packed-age sample sealed for 7 days shall pass odor rating ≤2.5, no backing delamination over 10mm at fold lines, no visible pinholes under normal inspection light, and no severe fold whitening.”

Heat reflection: useful benefit, not a substitute for insulation

The shiny underside is often sold as “heat reflective”, but buyers should keep the physics precise. Aluminum film reflects radiant heat best when the reflective surface faces an air space and remains clean. On wet grass, cold soil or sand, the backing is usually pressed against the ground. In that condition, the user’s comfort comes mainly from closed-cell foam reducing conductive heat transfer, not from mirror-like reflection.

Thermal resistance is different from radiant reflection. The 3mm foam core gives a small but noticeable insulating layer because closed cells trap air and reduce conduction. The aluminum film may reduce radiant heat exchange in limited setups, but it adds little if it is dirty, scuffed, crushed against ground, covered by mud, or separated from the user by the foam and fleece layers. Avoid copy such as “keeps you warm in all conditions”. Safer retail wording is “reflective aluminum-film backing helps reduce heat loss and keeps the underside wipe-clean”.

If a retailer needs a measurable claim, use a comparative internal test rather than a broad outdoor promise. One practical method is to place equal-size samples over a controlled cold plate, apply the same load, and record fleece-side surface temperature after 10, 20 and 30 minutes. Compare aluminum-film/XPE against PEVA/EPE or Oxford/foam using the same room temperature, sample size and pressure. This does not create a universal R-value claim, but it gives a repeatable buying decision.

Film thickness and composite structure matter. Very thin metallised film can look bright at sampling, then scuff, pinhole or delaminate after repeated folding. For mainstream picnic mats, ask suppliers to declare whether the ground layer is metallised PET laminated to PE, aluminised PE, or another film composite. A practical film-layer range is often 12-20micron, with total backing laminate depending on supplier process. Thicker film can improve scuff appearance but may be noisier and less flexible.

Do not confuse aluminum-film backing with a fully waterproof fabric system. The film itself resists water, but stitch holes, edge seams and fold stress points can allow moisture ingress. If wet-ground performance is part of the selling point, specify hydrostatic head on flat backing material before sewing, for example 1,000-2,000mm by ISO 811 or AATCC 127, then inspect finished edges separately. For heavier outdoor programs, compare with waterproof picnic mat backing options, picnic blanket backing PEVA, PU and TPU and TPU-laminated suede-finish picnic mats.

Fold lines, crease memory and shelf presentation

Fold lines are the failure mode buyers notice first after carton opening. A 3mm XPE mat wants to recover, while the metallised film tends to hold a crease. If fold geometry is not engineered, the result is white stress marks on the backing, raised ridges on the fleece face, cracked-looking hinge lines and uneven folded panels. The risk rises when cartons are over-compressed to reduce CBM or when winter transit makes foam and film temporarily stiff.

Decide the fold format before quoting. Common 150 x 200cm retail mats fold to roughly 40 x 30 x 12cm, while 200 x 200cm family mats may fold to around 45 x 35 x 14cm depending on foam resilience, binding bulk and handle design. More folds reduce shelf pack size but increase hinge count and delamination risk. Fewer folds improve recovery but raise carton volume. Align fold lines so thick bound corners do not stack directly on top of each other.

Approve a packed-age sample, not only a flat counter sample. Ask the factory to fold the sample in final retail format, pack it in the proposed polybag or wrap, keep it under expected carton compression for at least 72 hours, then open it at room temperature. For higher-risk launches, a 7-day packed-age approval is better. Pass/fail thresholds can be simple: no film delamination over 10mm at any hinge, no continuous fold whitening longer than 50mm visible from 60cm under normal light, and foam thickness recovery to at least 85-90% of approved sample after 24 hours relaxed.

For mats with Velcro flap and webbing handle, place stitching so the flap does not pull across a main foam hinge. Typical webbing is 25mm or 38mm polypropylene. Flap hook-and-loop may be around 25 x 80mm, adjusted to folded thickness. Use bar-tacks at handle ends, but avoid dense needle perforation through the backing in areas likely to contact wet grass. More detail on folding and carry systems is covered in foldable picnic mats with Velcro flap and webbing handle.

Carton loading must be part of product engineering. If the buyer requests a 3mm XPE construction but pushes 24-30 large mats into a carton sized for 16-20, the mats may pass inline measurement and still arrive with permanent fold scars. For FOB Ningbo or Shanghai quotes, request unit folded size, carton size, pieces per carton, gross weight, carton compression method and a photo of the packed carton stack. For online retail, add an open-pack appearance review because consumers judge the mat within seconds of unboxing.

Odor control: material selection, airing and pass/fail limits

Odor complaints usually come from foam, adhesive, backing film ink, hot lamination residues or trapped volatiles from rushed packing. XPE foam can carry a mild processing smell soon after lamination. Adhesive lamination may add solvent or monomer odor if curing and ventilation are insufficient. Flame lamination avoids adhesive odor but needs stable heat control and can affect foam surface feel. The realistic target is not “no smell”; it is low odor after normal opening and no sharp chemical odor that causes returns.

Build odor control into the specification before bulk. Require fresh production samples to be sealed for 24 hours, opened at 20-25°C, and rated by at least three trained inspectors using a 0-5 internal scale: 0 none, 1 slight, 2 acceptable mild material odor, 3 noticeable and needs airing, 4 strong, 5 unacceptable. For most camping retail programs, set the bulk threshold at ≤2.0 or ≤2.5, depending on price tier and customer sensitivity. This is not an ISO odor certification; it is a practical receiving and pre-shipment control.

Material choices help. Specify low-odor XPE, avoid reclaimed foam unless approved by lot, and require declaration of printed versus unprinted backing film. Printed aluminum-look films can add ink odor and colour-rub risk. If the fleece is navy, black, red or other deep shade, check crocking by AATCC 8 or ISO 105-X12. Practical retail targets are often Grade 4 dry and Grade 3-4 wet, depending on colour depth and end use. Dark fleece lint can stick to the shiny backing during folding, so add vacuuming or air cleaning before final pack for premium orders.

Airing time is a real production cost. If the PO requires immediate folding after lamination to catch a vessel, odor risk rises. For stable bulk, allow 24-48 hours of open stacking or ventilated resting after lamination before final folding, especially in humid weather. If individual polybags are required, consider micro-perforated bags or a vent hole where retail hygiene rules allow. Do not use scented sachets to mask odor; they create a second odor source and can raise compliance questions for family, pet-adjacent or children’s assortments.

Pass/fail wording should be concrete. Example: “Bulk odor shall be rated ≤2.5 on the buyer’s 0-5 scale after 24h sealed conditioning. Any sharp solvent, burnt plastic, sour foam or mildew odor is rejectable regardless of numeric average. Factory shall hold laminated rolls or panels for minimum 24h ventilation before final folding unless buyer approves exception in writing.”

Backing options: aluminum film, PEVA, Oxford and TPU

Backing choice should follow channel and use case, not sample brightness. Aluminum film backing suits value-to-mid camping mats where shelf impact, wipe-clean underside and a cautious thermal story matter. PEVA is softer and often cheaper, but thin PEVA can puncture and stretch at stitch holes. Oxford with PU or PVC coating is tougher for rough ground but heavier, bulkier and more textile-like on the underside. TPU-laminated constructions can support higher waterproof expectations, but cost more and need tighter lamination control.

Use this sourcing checklist: aluminum film + 3mm XPE for family picnic mats and promotional camping sets; PEVA + foam for price-led supermarket mats; 210D or 420D Oxford + coating for parks, festivals and repeated rough-ground use; TPU-laminated fabric where softer handfeel and higher hydrostatic resistance justify the price. Compare related constructions in PU-coated 210D polyester picnic blankets, 420D Oxford 2mm EPE foam picnic mats and PFC-free water-repellent picnic blankets.

Failure modes differ by backing. Aluminum film can crease, scuff, pinhole and delaminate at fold hinges. PEVA can tear at stitch holes and become slippery. PU-coated Oxford can hydrolyse if coating quality is poor or storage is hot and humid. PVC-backed items raise weight, plasticiser and retailer compliance questions, especially for EU and California channels. TPU is more stable but expensive and less forgiving if lamination temperature is wrong.

For price comparison, hold size and packing constant. A quote for 150 x 200cm with 180gsm fleece, 3mm XPE, aluminum film backing, bound edge, Velcro flap and 25mm webbing handle is not comparable to a 145 x 180cm PEVA mat with 2mm EPE and no handle. Put exact open size, folded size, component list, edge finish, handle type, label, insert card, polybag type, carton loading and Incoterms into the RFQ. Otherwise the lowest quote often hides a smaller size, EPE substitution, lower foam density, thinner film or simplified packing.

QC inspection: AQL plan and actionable checkpoints

For export retail mats, a common inspection base is ANSI/ASQ Z1.4 or ISO 2859-1 single sampling, General Inspection Level II, with AQL 2.5 for major defects and AQL 4.0 for minor defects. Critical defects should be 0 acceptance. Some buyers use tighter AQL 1.5 for higher-price programs or safety-sensitive channels. The exact plan should match the customer’s quality manual, but the defect definitions must be written before production.

Major defects should include backing delamination, open seams, broken handle attachment, wrong size beyond tolerance, wrong material construction, severe odor, visible dirty marks, film pinholes through the backing, significant backing scuffing, and hydrostatic failure where a waterproof claim is specified. Minor defects may include small thread ends, slight fold marks within approved limit, minor colour variation within tolerance and non-functional packing wrinkles.

Add component and process checks before final inspection. Incoming fleece: GSM, width, shade, brushing consistency, pilling risk by ISO 12945-2 if required, and crocking by AATCC 8 or ISO 105-X12 for dark colours. Incoming foam: declared type, thickness, density, smell and cell uniformity. Backing film: thickness declaration, pinholes, surface scuffing and adhesion compatibility. During lamination: bonding uniformity, edge curl, trapped bubbles, scorch marks and roll tension. During sewing: stitch density, skipped stitches, binding coverage and handle bar-tacks.

Practical pass/fail thresholds help inspectors make the same decision. Delamination: no separation over 10mm at fold hinges or edges after manual flexing. Pinholes: no visible light points through backing when inspected over a light table or against strong backlight for waterproof programs. Backing scuffing: no scuff mark longer than 30mm on A-surface visible from 60cm unless approved as normal folded abrasion. Handle pull: commonly 10-15kg static load for 10 seconds without tearing, stitch burst or film ripping for retail picnic mats. Fold recovery: after 24h relaxed at room temperature, no severe panel waviness and foam thickness recovery at least 85-90% of approved sample.

For seam strength, ASTM D5034 is designed for textile breaking strength and is not always ideal for composite foam mats, but it can be referenced for fabric and seam components where applicable. For finished mat function, combine lab checks with practical pull, flex and open-pack appearance tests. For broader inspection structure, see blanket quality control inspection, AQL 2.5 inspection checklist and ASTM D5034 seam strength targets.

Packaging, shipping and storage controls

Packing pressure can ruin an otherwise acceptable mat. Define retail fold method, folded dimensions, polybag or wrap type, pieces per carton, carton size and maximum gross weight in the PO. Avoid changing carton loading after sample approval only to reduce CBM. Over-compressed cartons create permanent fold whitening, foam set, edge curl and delamination at hinge lines.

Use a packed-age sample before shipment. The sample should be folded exactly like bulk, packed in final retail packaging, placed under estimated carton pressure for at least 72 hours, then opened and inspected. For large orders or winter shipping, use a 7-day packed-age sample. Approve or reject based on odor, fold whitening, foam recovery, film scuffing, delamination and handle deformation. Keep photos with the signed sample file so final inspection can compare against the approved condition.

Carton compression should be controlled by count and by appearance, not only by export cube. As a practical rule, do not force the carton so tightly that the top flaps need heavy body pressure to close or the side panels bulge. If a carton is strapped, strapping must not cut into the mat edges. Use adequate carton board strength for the gross weight, especially if the mats are sold through e-commerce or handled by parcel networks after import. For FOB planning, ask for carton dimensions, gross weight, net weight, CBM, stacking pattern and loading photos.

Moisture control matters because fleece, paper inserts and cartons absorb humidity, while film backing can trap it. Keep finished goods off the floor, use dry cartons, avoid packing warm goods into cold containers, and consider desiccant where long sea transit or humid storage is expected. Do not pack mats with wet printing, damp inserts or freshly glued labels. Mildew odor is rejectable even if the foam itself passes odor rating.

Cold transit can temporarily stiffen film and foam. If goods arrive in winter, let cartons acclimate for 12-24 hours at warehouse temperature before open-pack judgement. Opening frozen or very cold mats and forcing them flat can exaggerate film cracking and fold whitening. This acclimation step should be written into receiving instructions so a good shipment is not incorrectly rejected, and a bad shipment is still judged consistently after recovery.

For shipping cost comparisons, keep Incoterms and packing assumptions visible. EXW hides inland freight, export handling and loading risk. FOB Ningbo or Shanghai is often clearer for factory comparison. CIF or DDP quotes must lock carton dimensions and loading quantity, otherwise a supplier may over-compress cartons to win freight cost. Related freight planning points are covered in custom blanket lead times and shipping, EXW vs FOB Ningbo costing and picnic blanket MOQ and pricing.

Sourcing red flags and PO clauses buyers should use

Red flag one: the supplier refuses to declare foam type or density. If the quote only says “3mm foam” without XPE, density and tolerance, assume the construction may change before bulk. Red flag two: the sample feels full but the bulk carton weight is lower than expected. That often points to reduced foam density, thinner film, lower fleece GSM or smaller cutting size. Red flag three: the backing looks mirror-bright but scratches with a fingernail or shows pinholes against light. This may be ultra-thin metallised film that will not survive folded retail use.

Red flag four: the factory wants to approve only flat swatches. Picnic mats fail after lamination, folding and packing, not on a flat A4 material card. Red flag five: carton loading changes after the pre-production sample. If the factory increases pieces per carton without buyer approval, fold set and odor risk usually rise. Red flag six: strong perfume, sachets or “air freshener” notes inside the bag. That is a masking method, not odor control.

Useful PO clause for material substitution: “No change to fleece GSM, foam type, foam density, foam thickness, backing film structure, lamination method, fold method, packing count or carton dimensions is permitted without buyer’s written approval and updated signed sample.”

Useful PO clause for packed-age approval: “Factory shall submit one packed-age sample from pre-production or first bulk output, held in final retail packaging for minimum 72 hours before dispatch to buyer or before video inspection. Sample must pass odor ≤2.5, no delamination over 10mm, no severe fold whitening, no visible pinholes and handle pull 10kg for 10 seconds without damage.”

Useful PO clause for waterproof backing: “Flat backing composite before sewing shall meet agreed hydrostatic head target by ISO 811 or AATCC 127. Finished product is not to be advertised as seam waterproof unless finished-seam leakage testing is separately approved.”

Useful PO clause for inspection: “Final random inspection shall follow ISO 2859-1 or ANSI/ASQ Z1.4, General Inspection Level II, AQL 2.5 major, AQL 4.0 minor, critical 0. Material substitution, severe odor, open seam, broken handle, delamination, pinholes through waterproof backing and wrong size beyond tolerance are major or critical according to buyer defect list.”

Frequently asked

Is 3mm XPE always better than 2mm EPE for picnic mats? For repeated folding and better recovery, 3mm XPE is usually stronger than 2mm low-density EPE. It also costs more. The buyer should specify foam type, density and thickness tolerance because some low quotes substitute EPE or reduce density while keeping the same nominal thickness.

Can aluminum film backing make a picnic mat waterproof? The film layer itself resists water, but finished mats can leak at stitch holes, bound edges and stressed fold lines. If wet-ground use is claimed, test the flat backing composite by ISO 811 or AATCC 127 and inspect finished seams separately.

What odor limit should buyers use for aluminum film fleece picnic mats? A practical control is a 0-5 internal odor scale after 24 hours sealed conditioning at room temperature. Many retail programs set acceptance at ≤2.0 or ≤2.5, with any sharp solvent, burnt plastic, sour foam or mildew odor rejectable regardless of average score.

What are the most common hidden cost-downs in this product? The main risks are EPE substituted for XPE, lower foam density, ultra-thin metallised film, fleece below approved GSM, smaller cutting size and increased carton compression to reduce CBM. Finished weight and packed-age sample approval catch many of these issues.

How should buyers approve folding before bulk production? Approve a sample packed in final fold format for at least 72 hours, or 7 days for higher-risk orders. After opening, check fold whitening, foam recovery, delamination, film scuffing, odor and handle deformation against written pass/fail thresholds.
