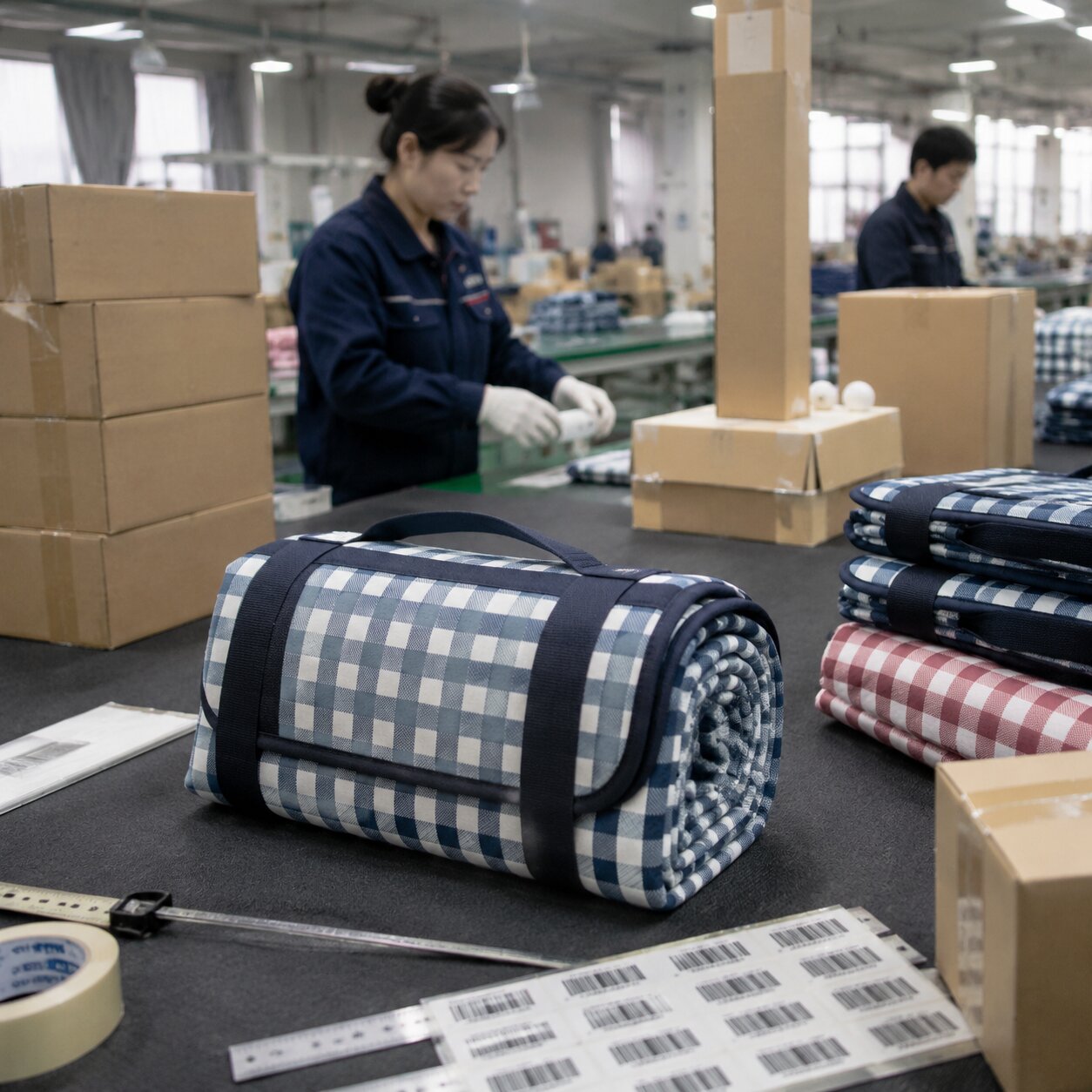

Folded 150x200cm 420D Oxford picnic mats with 2mm EPE foam stacked beside export cartons in a factory packing area

Why this construction works for seasonal retail

A 150x200cm picnic mat built as 420D Oxford face + 2mm EPE + moisture-barrier backing sits in a workable retail bracket for spring and summer programmes. It feels more substantial than a thin fleece promotion, but still packs for pallet display and store carry-out. In factory experience, a finished unit weight often lands around 0.60-1.00kg for this size, but that is not a universal standard. It can move materially with backing chemistry, backing substrate, reinforcement patches, flap size, handle width, print add-on and unit pack. As a guide, 0.60-0.75kg is more typical for a lighter PEVA-film build with restrained accessories, while 0.80-1.00kg is more common once you move into heavier woven backings, PVC-coated constructions, larger flaps or denser reinforcement. If a supplier quotes 0.85-1.20kg, check whether they are including a heavy PVC-coated backing, oversized flap, broad webbing handle, hangtag set or unusually robust accessory pack.

Buyers should separate denier from finished GSM. 420D describes yarn size, not finished fabric mass. The same '420D Oxford' label can hide meaningful differences in weave density, filament type, coating add-on and handfeel. For this category, a tighter face-fabric reference is usually more useful than a broad range: 180-200gsm finished often suits value-to-mid retail without heavy face coating; 200-220gsm is more common where you want firmer hand, slightly better abrasion feel or more print stability; 220-235gsm tends to appear when the weave is tighter and/or the back-face coating add-on is higher. If a supplier wants to quote below 180gsm or above 235gsm, ask them to declare why. Mass should be measured to ISO 3801 on the face fabric only, not on the assembled sandwich, after standard conditioning agreed in the PO, commonly 20±2°C and 65±4% RH for at least 24 hours before cutting test specimens.

This build also suits retail because it can be sold in a self-contained folded format without a separate carry bag. A sewn flap with webbing handle usually gives better shelf density than a loose pouch. The trade-off is that folded geometry becomes a cost driver. The thick corner is created by flap overlap, handle anchoring patches, edge binding turns and fold-line foam buildup. If stack direction is not controlled, those thick corners sit on top of each other and carton height drifts upward. Alternating stack direction, recessing the handle into the fold channel, trimming reinforcement patches to the minimum functional size and controlling binding overlap can improve cube efficiency without changing the open-size spec. For broader construction context, see camping ground mat construction and choosing picnic, beach and camping mat materials.

What to lock on the PO before asking for FOB pricing

A usable PO needs more than size, colour and target price. Lock the following: finished open size 150x200cm, tolerance usually ±2cm; face fabric 420D Oxford with finished GSM band; EPE thickness and density; backing construction by substrate plus coating or film; whether the product is laminated, stitched, quilted or compound-assembled; fold format; handle width and anchor method; flap size; edge binding width; print method; target net weight range; folded-unit size after rebound test; carton pack quantity; inspection standard; and shipping marks. If printed, also state artwork scale, placement tolerance, Pantone references where relevant, and whether approval is against lab dip, strike-off or production sample.

Spell out the backing correctly. 'Waterproof backing' is not a usable sourcing term. Common constructions in this category include PEVA film laminated to nonwoven or fabric substrate, PU coating applied to woven polyester backing, and PVC-coated Oxford backing. These are not interchangeable. A laminated backing means a film or coating layer is bonded to a substrate before the finished mat is sewn. A stitched assembly means the face, foam and backing are held together mainly by perimeter stitching, sometimes with spot tacks; leakage risk then shifts to edge needle holes and seam paths. A quilted or compound construction adds through-penetration by stitching or ultrasonic bonding across the panel; that can improve layer stability but may create more paths for moisture ingress or crease stress depending on the design. The quote should state substrate, coating or film type, approximate backing GSM, and assembly method. For construction comparisons, see picnic blanket backing: PEVA, PU and TPU, waterproof picnic mat backing options for retail and ultrasonic quilting for picnic blankets.

Be careful with water claims. Many picnic-mat factories do not control hydrostatic head consistently on assembled retail mats, and a nominal backing-material result does not guarantee field dryness. If a supplier quotes a backing HH figure, specify that it is for the backing material only, tested to ISO 811 or AATCC 127 as agreed. In use, water ingress is often governed more by needle holes, edge binding, quilting penetrations, fold-crease cracking and flap seams than by the nominal HH number. For retail copy, safer language is usually 'moisture-resistant backing' or 'water-resistant backing layer' unless finished-goods performance has been validated and the claim has been signed off.

Carton terms belong on the PO, not in a later email trail. State master carton dimensions with tolerance, usually ±1cm per side unless the retailer requires tighter control; whether quoted carton dimensions are outer dimensions; pack orientation; maximum gross weight; barcode label position; shipping-mark layout; and pallet assumptions if applicable. A gross-weight target of 10-12kg often suits stricter manual-handling programmes, but 13-15kg may still be accepted in some soft-goods channels. That is retailer-specific, not universal. If the carton claim is used for container planning, require the supplier to confirm the dimensions are based on an actual export-ready carton with normal top flaps, tape and packing allowance, not a hand-compressed sample stack.

For inspection terms, many buyers still use ANSI/ASQ Z1.4 or equivalent AQL 2.5 major / 4.0 minor at final random inspection. That is a baseline, not a full risk-control plan. Seasonal retail launches often need tighter pass/fail points on packed dimensions, barcode readability, handle strength, odour, delamination and carton integrity. Keep the general AQL if you like, but add specific measurable checkpoints for those high-risk items. A broader inspection framework is in blanket quality control inspection.

Material trade-offs: face fabric, foam and backing

Face fabric should be written as a construction set, not a shorthand term. A workable PO line is: 'Face fabric: 420D polyester Oxford, finished mass 190-220gsm tested to ISO 3801 on face fabric only after agreed conditioning, colour per approved standard, coating add-on if any to be declared in quotation.' That wording forces the supplier to separate denier, mass and coating. If you expect print, specify whether the face is piece dyed, screen printed or digitally printed, because heavy print paste or coating add-on can change fold bulk, handfeel and blocking risk under compression. If colourfastness matters for wipe-clean retail use, reference ISO 105-X12 for rubbing and ISO 105-C06 for domestic washing only if wash claims will be made. For print-method context, see custom blanket decoration methods and digital sublimation printing guidance.

The 2mm EPE layer needs more than a nominal thickness call-out. Thin EPE for mats is usually controlled by thickness plus density band, and sometimes by whether the foam sheet is a single extruded layer or a laminated-sheet build. A practical retail PO call-out is 2.0mm nominal thickness, tolerance ±0.2mm, density 30-45kg/m³. If you want firmer recovery and less collapse after repeated folding, tighten that to roughly 35-50kg/m³, understanding that fold bulk and cost may rise. Density matters because two 2mm foams can feel similar on first touch but perform differently after compression. A lower-density sheet may flatten more under carton load, show higher compression set after container dwell, and recover unevenly at the fold line. A higher-density sheet usually gives better rebound and less 'boardy crease memory', but it can push up packed thickness and reduce units per carton. Thickness should be measured on conditioned material using an agreed method such as ISO 5084 with stated pressure foot, and the PO should say readings are taken away from permanent fold creases.

Recovery matters more than one spot thickness reading. For rebound-tested loaded dimensions, write the protocol operationally: precondition 5 finished mats per colourway or per lot sample for 24 hours at 20±2°C and 65±4% RH; fold each unit exactly to approved retail format; stack in shipping orientation under a dead load equivalent to the approved carton fill, or under a practical proxy load of roughly 8-12kg for 24 hours; remove the load; allow 24 hours rebound in the same room conditions; then measure folded L x W x H. A sensible pass criterion is sample average not more than 5mm above approved folded thickness and no single sample more than 8mm above. If the product uses memory-prone foam or heavier PVC backing, extend the loaded dwell to 48 hours for approval samples before locking the carton plan.

For backing, write the substrate and the moisture barrier separately, and ask for the finished GSM of the backing layer or backing composite. Copy-ready examples: 'Backing: 70-90gsm PP nonwoven + 20-35gsm PEVA film lamination'; 'Backing: 90-130gsm woven polyester + PU coating add-on, finished composite 110-160gsm'; or 'Backing: 210D or 300D polyester Oxford with PVC coating, finished composite 180-260gsm'. These ranges are not identical in feel or risk. PEVA film systems can be softer and often lower odour than PVC, but lamination quality and edge delamination matter. PU-coated woven backings usually fold more cleanly, but coating uniformity, needle-hole seepage and crease whitening still govern field performance. PVC-coated systems can feel robust and economical, but buyers should control odour, low-temperature fold behaviour and restricted substances. If the programme is retail-facing in the US or EU, ask early about REACH SVHC screening, azo colourant restrictions, and where relevant CPSIA, Prop 65 and phthalates for PVC-containing constructions. Related compliance background is in textile certifications explained for buyers, OEKO-TEX Standard 100 class guidance and sustainable recycled blanket sourcing.

Add two failure modes to your review that are easy to miss on first sample approval. One is cold-crack on fold creases in coated backings after low-temperature storage or winter container transit; this shows up as micro-cracking on repeated open-close cycles, especially on PVC-heavy systems. Another is print blocking after compression, where freshly printed face panels partially mark or gloss-transfer when units are packed too soon after curing. A third, common on lower-density foam, is memory loss after container dwell, where the mat never fully recovers from a long compressed voyage and shelf presentation suffers.

Carton maths for 150x200cm mats: where FOB costs really move

For this size, FOB competitiveness is driven as much by fold thickness and carton fill efficiency as by unit price. A typical folded retail pack for a 150x200cm Oxford/EPE mat may land around 38-42 x 26-32 x 8.5-12.5cm after rebound, assuming a simple flap-and-handle format and no separate pouch. Those numbers only matter if they are measured on production-representative samples with the exact backing, foam, flap and handle construction. A nominal CAD fold is not a shipping spec.

Use explicit assumptions in the RFQ. For example: folded unit 40 x 30 x 10cm after rebound; 10 units per export carton in alternating stack direction; carton outer 52 x 42 x 62cm; net weight about 8.8kg at 0.88kg per unit; gross weight about 10.0-10.8kg depending on carton board and retail pack. That carton is about 0.135m³. On pure volume, a 20GP at roughly 28m³ usable might load around 200-205 cartons, or roughly 2,000 units. A 40HQ at roughly 68m³ usable might load around 500-505 cartons, or roughly 5,000 units. Real loading will be lower if the cartons are unstable, if palletisation is required, or if retailer carton height limits force less efficient geometry. Use these figures as planning estimates only; confirm with actual pack-out samples and the forwarder’s load assumptions.

A second worked example shows how small thickness drift changes FOB. If the same mat rebounds to 11.5cm folded thickness instead of 10.0cm, the supplier may need a carton more like 52 x 42 x 71cm for the same 10-pack. That raises carton cube to about 0.155m³, a jump of roughly 15%. On volume-limited shipments, that can cut container quantity by a similar order of magnitude. A buyer who negotiates only unit FOB price, but leaves folded height open, can lose more in freight efficiency than they save in ex-works conversion.

Normalise quote comparison by asking every supplier to fill the same pack-data checklist. Required fields: face fabric finished GSM; foam thickness and density; backing substrate, coating type and finished GSM/composite GSM; open size tolerance; folded size after rebound test; handle width, length and anchor construction; binding width; unit net weight; unit retail pack type and dimensions; carton outer size; units per carton; carton net/gross weight; carton board spec if known; test claims and methods; MOQ; and Incoterm, usually FOB named port. If you do not normalise these fields, you are comparing mixed constructions, not prices. Related commercial context is in picnic blanket MOQ and pricing, custom blanket lead times and shipping and foldable picnic mat size and stitching details.

Sample approval sequence that prevents carton surprises

For multi-supplier RFQs, use a staged approval sequence instead of jumping from artwork to bulk. A practical sequence is: 1) lab dip for solid-dyed face or backing colours where relevant; 2) strike-off or print trial for printed face approval; 3) material hanger or swatch set confirming face GSM, backing type and foam density declaration; 4) pre-production folded sample using bulk-intent construction and exact fold format; 5) pack-out sample showing approved unit pack inside the proposed master carton; and 6) sealed counter sample kept against bulk inspection. This sequence is basic discipline, but it removes much of the ambiguity that creates later claims.

The pre-production folded sample should be treated as a commercial control point, not a marketing mock-up. Approve open size, folded size, handle comfort, flap alignment, hook-and-loop engagement, barcode position and carton fit. If the sample is not made with production-intent foam and backing, do not lock carton data from it. The pack-out sample should show exact carton orientation, interleaving if any, export label placement and gross weight. A photo is not enough; ask for measured outer dimensions on the physical sample.

If the programme has a short selling window, ask for the supplier’s planned production sequence in the quote stage: fabric lead time, printing window, lamination or coating lead time, sewing capacity, inspection day and estimated ex-factory date. That makes FOB timing more realistic and exposes suppliers who quote aggressively but cannot hold the schedule. See low MOQ blanket sourcing and custom blanket lead times and shipping for adjacent planning logic.

QC checkpoints with measurable pass/fail criteria

Keep the general final inspection level, but add targeted pass/fail points for the failure modes that matter in retail. For packed dimensions, inspect at least 5 cartons per lot or per inspection sample set and verify outer dimensions are within PO tolerance, commonly ±1cm per side. For folded unit size, measure at least 5 units after the agreed rebound protocol and reject if the average or single-sample limits are exceeded. For barcode readability, require a 100% scan pass on checked samples using the retailer’s barcode symbology standard or a practical warehouse scanner equivalent. For carton condition, reject cartons with burst seams, major crush, wet damage, broken handles or tape failure.

Add construction-specific checks. For delamination on laminated backings, inspect edges and fold creases; no visible film lifting greater than about 5mm continuous length on sampled units is a workable acceptance line for many retail programmes. For coated backings, flex the main fold line repeatedly, for example 10 open-close cycles by hand, and reject samples showing cracking, coating powdering or exposed substrate on the principal fold. For hook-and-loop closure, require consistent engagement without skew that opens under normal carry. For print appearance, check for blocking, ghosting, colour migration and abrasion on the flap edge and fold ridges.

Handle risk should be converted into a buyable requirement. A practical factory control is a static load test on the finished folded unit: suspend the packed mat by its handle with a load of at least 1.5 times the unit net weight, but not less than 10kg, for 1 hour; no handle detachment, anchor tear-out or seam failure is allowed. For seam strength on the handle anchor or main carry panel, use an agreed strip or grab approach where available, or define a simple acceptance criterion such as no stitch rupture, no fabric tear and no anchor displacement over 5mm after the static test. If the buyer wants a laboratory reference, align the supplier and lab on a relevant seam-strength method before ordering rather than writing a vague 'strong handle' request.

Odour and chemistry need explicit wording, especially on PVC-coated builds. A practical PO line is: 'No abnormal or offensive odour on opening export carton at room conditions; restricted-substance compliance to buyer standard for applicable market.' If the construction contains PVC or plasticisers, ask for screening against the buyer’s phthalate list and relevant market rules. For EU-facing goods, request REACH SVHC review; for children’s positioning, tighten the screen further. Do not rely on the phrase 'eco-friendly'; ask for test scope and declaration.

Carton integrity also needs a numeric checkpoint. If transit risk is high, ask for a simple drop-test verification on the export carton after normal pack-out, such as corner/edge/face drops appropriate to carton weight and buyer protocol. Even without a formal retailer standard, insist that the packed carton arrives without burst seams, major panel collapse or barcode loss. For care and consumer-use instructions, align claims with what the construction can actually tolerate; related guidance is in blanket care and washing guidance.

Copy-ready PO wording and RFQ checklist

A concise spec line can save several rounds of clarification. Example wording: 'Picnic mat, open size 150x200cm ±2cm; face 420D polyester Oxford, finished 190-220gsm to ISO 3801 on conditioned face fabric; inner 2.0mm EPE ±0.2mm, density 35-45kg/m³; backing [state exact construction and finished GSM/composite GSM]; assembly [laminated / stitched / quilted] as approved; folded size [state approved rebound-tested L x W x H]; webbing handle [state width] with reinforced anchor; flap with hook-and-loop closure; binding [state width and colour]; unit net weight [state range]; pack [state unit pack]; master carton [state outer dimensions, units/carton, gross-weight limit]; Incoterm FOB [named port].'

A copy-ready RFQ checklist for supplier quote normalisation should include: Incoterm and port; MOQ by colour and total order; face fabric denier, weave and finished GSM; foam thickness, density and sheet type; backing substrate, chemistry and finished GSM/composite GSM; assembly method; print method; open size tolerance; folded size after rebound test; unit net weight; handle width and anchor detail; unit packing details; carton outer dimensions; units per carton; carton net/gross weight; barcode and shipping-mark details; test claims with method numbers; sample lead time; and bulk lead time.

If the mat is being compared against woven picnic rugs or fleece-faced options, keep the comparison on construction and shipping efficiency rather than only face feel. See woven acrylic picnic rugs vs printed fleece mats and sand-free beach mat construction for adjacent material logic.

Frequently asked

Is 420D enough to define the fabric for a picnic mat PO? No. 420D only describes yarn size. A workable PO should also state finished GSM, fibre content, weave, and any coating add-on. For many 150x200cm picnic mats in this category, buyers narrow the face-fabric range to around 190-220gsm finished so suppliers are not quoting meaningfully different cloth under the same denier label.

What is a realistic finished unit weight for a 150x200cm 420D Oxford + 2mm EPE mat? A common factory-experience range is roughly 0.60-1.00kg, but it is only a guide. A lighter PEVA-film build with restrained accessories may sit nearer 0.60-0.75kg, while heavier woven or PVC-backed constructions with larger flaps and reinforcement can move into 0.80-1.00kg or above. Buyers should approve a target range against the exact construction, not rely on category averages.

Should ISO 3801 apply to the whole mat or only the face fabric? Normally ISO 3801 is most useful on the face fabric only, because it lets buyers compare fabric quotes cleanly. The assembled mat is a compound product, and its overall mass is better controlled by unit net weight plus declared layer specs. If commercial claims are based on mass results, the PO should also state conditioning, commonly 20±2°C and 65±4% RH for at least 24 hours before testing.

How should I specify the 2mm EPE layer so suppliers cannot downgrade it? Do not stop at thickness. Write nominal thickness, tolerance and density band. A practical call-out is 2.0mm ±0.2mm, density 35-45kg/m³ for a firmer retail build, or 30-45kg/m³ for a more price-driven version. If rebound and carton stability matter, ask for a simple loaded-recovery protocol on finished mats before finalising the carton plan.

What backing information should a supplier declare? At minimum: substrate, barrier chemistry, finished GSM or composite GSM, and assembly method. For example, 70-90gsm PP nonwoven + 20-35gsm PEVA film, or woven polyester + PU coating, finished 110-160gsm, or 210D/300D Oxford + PVC coating, finished 180-260gsm. 'Waterproof backing' on its own is not specific enough to compare quotes.

How do I define rebound-tested loaded dimensions on the PO? Use a written protocol. A practical version is: precondition 5 finished mats at standard room conditions for 24 hours; fold to approved retail format; load in stack form for 24 hours under a dead load similar to real carton pressure; allow 24 hours rebound; then measure folded L x W x H. Many buyers use a pass criterion such as average thickness no more than 5mm above approved spec and no single sample more than 8mm above.

What are the main failure modes after shipment, not just at final inspection? Three common ones are cold-crack on fold creases in coated backings, print blocking after compression if curing and pack-out are rushed, and foam memory loss after long container dwell. None of these are obvious from a quick tabletop approval sample, so they should be considered during sample approval and packaging trials.

What handle-strength requirement is reasonable for this product? A practical control for many programmes is a static load test on the folded finished unit: suspend it by the handle at 1.5 times the unit net weight, but not less than 10kg, for 1 hour. Accept only if there is no handle detachment, no anchor tear-out, no seam rupture and no anchor displacement over about 5mm.

What inspection checkpoints should be non-negotiable beyond AQL? Common high-risk checkpoints are folded-unit size after rebound, carton outer dimensions, barcode scan success, odour on carton opening, delamination at edges and fold lines, handle performance and carton damage. For barcode checks, many buyers effectively require 100% scan pass on inspected samples. For carton dimensions, a typical tolerance is ±1cm per side unless the retailer sets a different rule.

What sample approval sequence is most useful for multi-supplier RFQs? A disciplined sequence is lab dip where relevant, strike-off for printed face approval, material swatches confirming GSM and backing type, pre-production folded sample in bulk-intent construction, pack-out sample in the proposed export carton, and then a sealed counter sample held against bulk. That sequence is much safer than approving from artwork and a generic mock-up.
