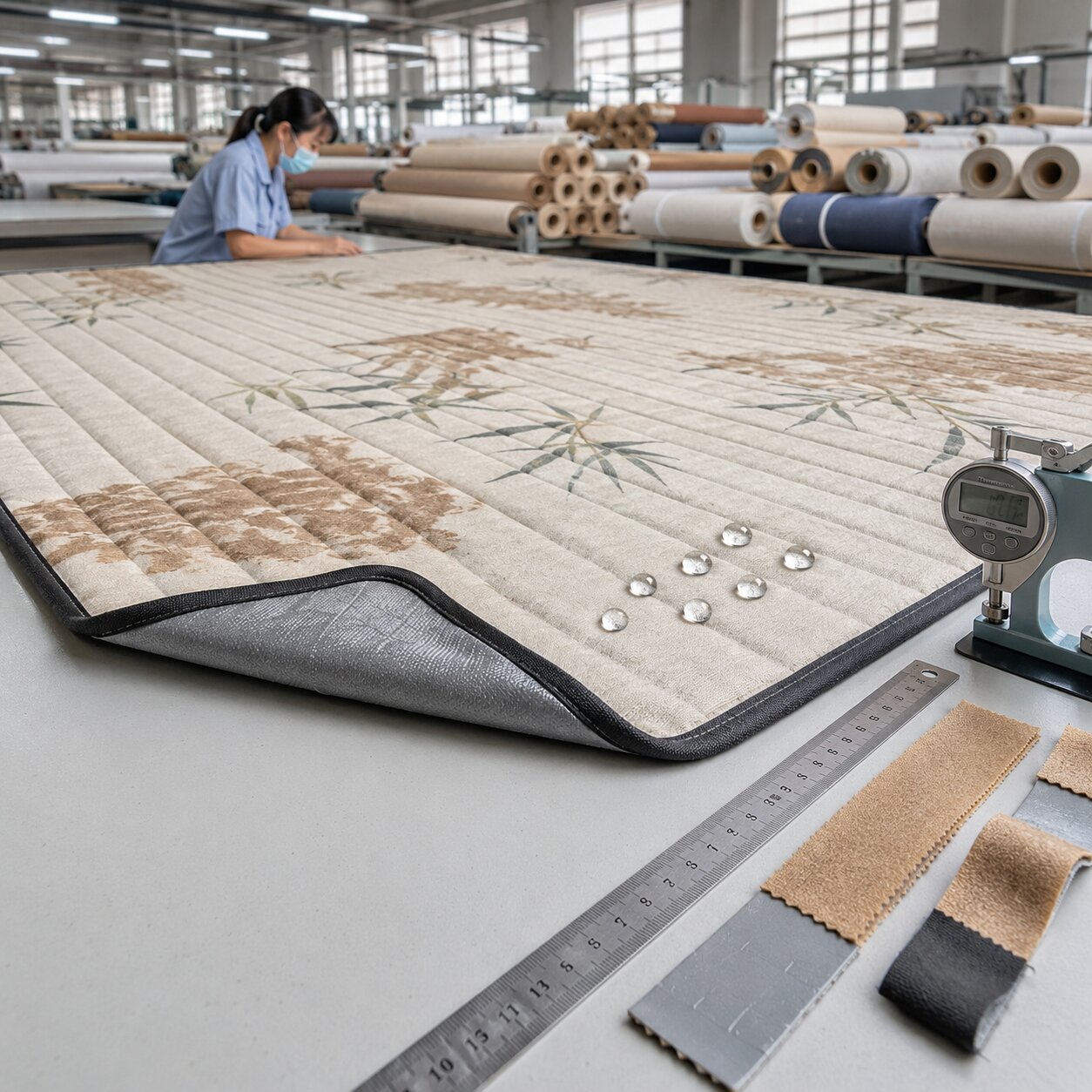

Close-up of a suede-finish picnic mat with TPU laminated backing on a factory inspection table, showing fabric texture, edge binding, fold area, and water-bead test

What a 190gsm suede-finish TPU picnic mat actually is

A 190gsm suede picnic mat TPU laminated usually means the face fabric only is about 190gsm. In this category the face is commonly 100% polyester, either a brushed warp knit or a light woven fabric with a suede-like finish, laminated to a TPU moisture barrier. Once film, adhesive, and any support layer are added, the laminated panel often lands around 220-285gsm before binding, quilting, flap, handle, or pouch are added.

For procurement, split the specification into at least four measurable items: face GSM, TPU nominal thickness, TPU theoretical film GSM, and finished laminated panel GSM. A practical film conversion is GSM = thickness in mm × density in g/cm3 × 1000. Using a declared TPU density basis of 1.18-1.22 g/cm3, a 0.030mm film is roughly 35.4-36.6gsm. That number describes the film alone. It does not include adhesive add-on, edge loss, moisture variation, or any backing texture that changes total laminate mass.

Typical picnic-mat TPU film is about 0.015-0.050mm. At a density basis of 1.20 g/cm3, that is about 18gsm at 0.015mm, 24gsm at 0.020mm, 30gsm at 0.025mm, 36gsm at 0.030mm, 42gsm at 0.035mm, and 60gsm at 0.050mm. In mill practice, 0.025-0.035mm is a common retail range for a soft picnic mat. Lighter 0.015-0.020mm film can work for cost-led promotional programs but leaves less margin against pinholes, fold whitening, and hydrostatic drift. Heavier 0.040-0.050mm film improves barrier margin but increases fold bulk, packed cube, and stiffness.

Do not rely on theoretical conversion alone for incoming control. Ask for a gravimetric verification method on laminated rolls: weigh a conditioned laminate specimen, then separate the film from the textile where practicable and compare measured panel GSM against the approved BOM range. If destructive separation is unreliable, compare face-fabric GSM before lamination against finished panel GSM and deduct the declared adhesive add-on range. That is more useful than treating film thickness as the only control point.

If a quotation says only '190gsm picnic mat', suppliers may be pricing very different builds: thin suede plus minimal film, suede plus scrim plus TPU, or a padded article where the 190gsm face is only one component. A workable PO line is: 100% polyester brushed face 190gsm nominal, lot average 190gsm ±5%, no single roll below 180gsm; TPU film 0.030mm nominal, density basis 1.20 g/cm3, theoretical film mass 36gsm ±10%; adhesive add-on 8-18gsm target; laminated panel 232-250gsm by roll average before binding.

Construction comparisons against other picnic backings are covered in picnic blanket backing PEVA PU TPU and broader end-use selection is discussed in choosing picnic beach camping mat. TPU is often chosen here for lower odour than many PVC-backed articles, better flex retention than some brittle coatings, and a quieter hand than stiff coated woven backs, but those benefits depend on film grade, adhesive control, and sewing discipline rather than the word TPU by itself.

Hydrostatic resistance: how to specify ISO 811 without over-claiming

For a picnic mat intended for damp grass, park lawns, and short-duration contact with surface moisture, a realistic panel target is often 1,000-2,000mm hydrostatic head. Based on sourcing experience rather than a published universal threshold, complaint risk tends to increase on lighter laminates once panel results fall much below about 800-1,000mm, especially after folding and retail handling. Many mass-retail and private-label programs therefore target about 1,200-1,500mm minimum on the laminate panel. Higher numbers can add margin, but article-level complaints then often shift from panel penetration to stitch-hole leakage, edge wicking, puncture, or delamination.

If ISO hydrostatic testing is specified, cite the exact edition and keep buyer deviations separate from the standard. A cleaner PO clause is: Hydrostatic resistance of laminated panel to be tested in accordance with ISO 811:2018, unless otherwise agreed in writing. Conditioning, apparatus configuration, specimen preparation, and pressure application shall follow the test lab's accredited practice to ISO 811:2018. If the buyer wants non-default details such as face orientation, sample location, or reporting format, add them as project-specific acceptance protocol, not as if they were universal ISO wording.

Results depend on specimen preparation, clamp condition, apparatus type, operator judgement on endpoints, and lab practice. That is why the PO should lock down the commercial protocol. For picnic mats, many buyers specify TPU side facing the water column because that better simulates wet-ground contact in use. Some labs and some product categories report the coated-face exposure by house convention, so orientation should be written on the PO and on the test request form. If reverse-face data is wanted for comparison, request it as a second report line rather than leaving test orientation ambiguous.

A defensible project protocol can state: Report hydrostatic head at three-point penetration, excluding clamp-edge leakage; test 3 specimens per lot from body centre, fold-adjacent zone, and near perimeter outside stitch area; report individual results and average; pass if no specimen is below 1,200mm and lot average is at least 1,500mm. That language is a proposed acceptance protocol for buying control, not a substitute for the ISO standard text.

Be clear about scope. ISO 811 evaluates the laminate panel, not the sewn article. A panel can pass 1,500-2,000mm and the finished mat can still leak through needle holes, binding joins, flap stitching, corner turns, punctures, or abrasion damage. Correct commercial wording is usually: laminated body panel meets hydrostatic target; finished article is moisture resistant in normal ground use, subject to stitched-edge limitations. If buyers need article-level evidence, add a separate finished-goods method.

A practical article check is a static wet-ground dwell test: place the finished mat on saturated felt, wet blotter, or damp foam; apply a distributed load of 2-5kg over a defined area for 30-60 minutes; inspect the face side for strike-through at edges, corners, fold intersections, quilting points, and stitched attachments. This is not an ISO replacement, but it is useful for separating a good laminate from weak article assembly. Related construction differences appear in camping ground mat construction and waterproof picnic mat backing options PEVA vs oxford PVC for retail.

Lamination construction: what to request on the quote sheet

Ask which lamination route is actually being quoted. In this product class the common build is a TPU film laminated onto the brushed polyester face with a hot-melt web, hot-melt powder, TPU hot melt, PES hot melt, or PUR reactive adhesive system. Mills often summarise all of that as 'TPU laminated', but the hand, foldability, odour, bond stability, and cost can differ materially between systems.

A useful RFQ field list is: face construction such as warp knit or woven; yarn spec such as 75D/144F or 100D/144F polyester where available; face finish such as single-side brush or deeper suede brush; TPU film thickness nominal/minimum; TPU density basis; theoretical film GSM; adhesive chemistry; adhesive add-on target in GSM; laminated panel GSM target; surface texture of the backing such as smooth or embossed anti-slip; binding material and width; stitch density; and corner construction such as radius, mitre, or overlap join.

Film lamination is common because it gives a more predictable barrier layer than vague 'waterproof coating' claims. The trade-offs are the risk of edge tunnelling, bubbles, blocking, or local voids if heat, cooling, and tension are unstable. Direct coating or extrusion routes may lower cost at larger scale but often produce a firmer hand and are more common on woven Oxford-based groundsheets than on soft suede-touch mats.

Add measurable laminate-quality controls beyond thickness. For bonding, specify a 180° peel test and report the method used by the supplier or third-party lab. There is no single universal target across all laminate constructions, but for this article type a practical commercial rule is often at least 1.0-1.5 N/25mm after conditioning with no sudden adhesive-skip zones, and no full-width spontaneous delamination after a heat-aging check. Where buyer risk is higher, some programs push for stronger values, but the target must be matched to the face fabric so the textile does not tear before the bond can be meaningfully assessed.

Aging checks matter because some weak laminates pass initial hydrostatic testing and fail later after container heat or warehouse storage. A simple incoming or pre-shipment screen is: heat age laminate specimens at 70°C for 24 hours, recondition, then check peel behaviour, visual blistering, and hydrostatic change. Suggested failure triggers are visible bubbles over 3mm, continuous edge lift over 20mm, or hydrostatic loss greater than an agreed threshold such as 20% from the original lot average.

The lamination-request checklist should also ask for: cross-section photo, roll width and usable width, whether lamination is in-house or outsourced, whether the TPU is virgin or recycled-content claimed, release-paper or carrier use if applicable, odour expectation after 24-hour airing, and whether the converter can provide a pinhole-light inspection record. For broader build comparisons, see woven acrylic picnic rugs vs printed fleece picnic mats material choice and ultrasonic quilting for picnic blankets when to use 120gsm wadding.

BOM items that commonly vary between mills

Two quotes that both say '190gsm suede TPU picnic mat' can still describe materially different articles. The face may be warp knit or woven; yarn may be around 75D to 150D polyester; brushing depth may be light for cleaner print definition or deeper for a softer hand; and the backing may be smooth TPU, micro-embossed TPU, or TPU laminated to a support scrim. Woven faces usually feel a little firmer and can be dimensionally steadier. Knit faces often feel softer and drape better, but can be more sensitive to stretch variation during lamination.

Binding is another common source of claims. Ask whether the edge uses polyester webbing, tricot binding, woven tape, or folded self-fabric, plus binding width and stitch count. A practical sewing spec for this article type is often 8-11 stitches per inch on binding seams, with reinforcement at handle and flap anchor points. Low stitch density can open corners; excessive needle density can create a perforation line that increases leak paths and seam grin.

Corner construction changes both appearance and failure risk. Tight square turns on bulky laminates can pucker, while poorly controlled radius corners can leave excess fabric or exposed film. Ask for corner type, corner radius if applicable, and whether corners are back-tacked or bar-tacked. On foldable mats with flap-and-handle sets, also confirm whether the carry handle is stitched only to the face shell or through a reinforcement patch so the load is not concentrated on the laminate itself. Similar fold-and-carry details are covered in foldable picnic mats with velcro flap and webbing handle size stitching.

If padding is added, the specification should separate top face GSM from the complete article weight. Even a thin foam layer such as 2mm EPE changes hand, crease retention, packed size, and carton plan materially. That distinction is discussed in 420d oxford 2mm EPE foam picnic mats at 150x200cm FOB carton planning.

For decorated mats, also define the print route before testing. A heavily brushed suede face can be plain dyed, pigment printed, or digitally sublimated if the construction allows. Decoration method changes crocking, colourfastness, and face feel, so it should be locked before bulk approvals. See custom blanket decoration methods and digital sublimation printing on 280gsm flannel fleece artwork MOQ for print-control logic that also applies to picnic fabrics.

Laminate QC: measurable controls buyers can enforce

Thickness alone is not enough. For incoming rolls or pre-cut panels, set controls for visual laminate quality, bond quality, panel mass, and barrier consistency. A practical visual standard is no continuous bubbles or voids over 3mm, no clustered pinholes visible under transmitted light within the central body area, no wrinkles causing permanent lift, and no exposed film-edge shrinkage within the cut allowance. Agree whether the supplier will inspect under ambient light, backlight, or both.

For panel GSM, distinguish nominal, minimum single reading, and lot average. Example: laminated panel nominal 240gsm; lot average 232-250gsm; no single specimen below 225gsm. For TPU film, if the supplier sells by nominal thickness, define whether the tolerance applies by roll average or shipment average. Many disputes come from one side assuming piece-average compliance and the other side using lot-average logic.

For peel strength, require test strips from machine direction and cross direction where relevant, because some laminates behave differently by direction. A simple commercial acceptance rule is: 3 specimens per selected roll; report average and lowest; investigate any abrupt local drop greater than 30% from the roll average. The goal is not academic precision; it is to catch glue skips, cool-line defects, or weak edges before conversion.

For hydrostatic control, do not accept a single best-result number. Ask for individual results, average, and specimen location. If the buyer requires a minimum of 1,500mm average, also decide whether there is a single-specimen floor such as 1,200mm minimum. That single-specimen floor is often the more useful claim-prevention tool on laminated picnic products.

Inspection discipline on the finished article should align with a standard QC program. If the supplier uses third-party or in-house final random inspection, define size set, workmanship points, and packaging checks in advance. General inspection planning is covered in blanket quality control inspection, and the same AQL logic applies to picnic mats with article-specific defect definitions added.

Fold durability: define the test before you have a claim

Fold failure is one of the most common weak points on soft laminated mats. The typical sequence is whitening at the fold, then micro-cracking or pinholing in the film, then loss of hydrostatic margin at the fold line. This is a common factory and claims pattern, but the exact threshold varies with film grade, thickness, embossing, adhesive, and how tightly the retail pack is folded.

A repeatable buyer protocol can be simple. Condition laminate panels or finished mats under agreed standard atmosphere, fold along the approved retail fold line, apply a defined compressive load or hand-fold pressure, then cycle the fold 200-500 times depending on program risk. After cycling, inspect for whitening, cracking, pinholing, edge lift, and visible delamination. Then retest hydrostatic resistance on specimens cut through the folded zone where possible.

One workable acceptance example is: after 200 fold cycles, no visible crack longer than 2mm, no continuous whitening band wider than 3mm, no pinhole cluster, no delamination over 10mm, and retained hydrostatic performance at not less than 80% of pre-fold lot average. The exact cycle count should match the market position. For low-cost giveaway assortments, a lower screen may be acceptable. For outdoor retail, buyers usually want more fold margin because shop handling and consumer re-folding are rougher than factory packing.

If the article is sold vacuum-packed or tightly strap-folded, ask whether the folded pack introduces a sharp crease radius. Crease geometry matters. A thicker or stiffer film may deliver a higher initial hydrostatic number but perform worse after repeated folding than a slightly lighter, better-bonded laminate. That trade-off should be discussed before approving a heavy film as the automatic 'safer' option.

Lead-time and pack-style choices also change crease risk. Tight export packing, long container dwell, and high summer temperatures can set fold memory into the laminate. Those commercial realities should be considered alongside general shipment planning in custom blanket lead times shipping.

Panel-versus-finished-goods acceptance rules buyers can put in the PO

A useful purchase order separates panel approval from finished-goods approval. Panel approval covers face GSM, laminated panel GSM, hydrostatic performance, peel behaviour, width, and visual laminate defects. Finished-goods approval covers dimensions, article weight, sewing quality, fold pack, handle attachment, odour, barcode and carton packing, and use-simulation checks such as the wet-ground dwell test.

Commercial tolerances should distinguish nominal, minimum, and average. Example: TPU film nominal 0.030mm, shipment average 0.030mm ±10%, no tested roll average below 0.027mm equivalent; laminated panel nominal 240gsm, shipment average 232-250gsm, no individual roll average below 225gsm; finished article weight nominal 780g, lot average ±5%, no individual piece below -7%. Apply dimension tolerance by finished piece, for example 150 × 200cm ±2cm after conditioning and before packing, unless the fold style or quilting construction justifies a different rule.

For final random inspection, many buyers use ANSI/ASQ Z1.4 or equivalent AQL logic even though the article itself is textile. A practical example for finished goods is General Inspection Level II, with Critical 0, Major 2.5, and Minor 4.0. Critical defects would include wrong fibre claim, sharp contamination, gross odour beyond agreed standard, or water strike-through under the agreed dwell test where waterproof performance is claimed. Major defects may include delamination, missed stitching, wrong dimensions beyond tolerance, broken handle anchorage, or visible backing cracks. Minor defects may include slight skew, light shade variance within approved standard, or small non-functional surface marks within the agreed visual standard.

Define sample logic for both rolls and finished goods. One example is: laminate panel tests on 3 rolls per lot or 10% of rolls, whichever is greater up to an agreed cap; finished-goods inspection per selected AQL sample size; if one roll fails hydrostatic or peel minimum, test 2 additional rolls from the same lot; if either retest roll fails the same criterion, hold the lot for review or rework. Spell out whether retest can replace the original result or only confirm lot failure. Without that line, disputes are common.

Pass-fail disposition should also be written. Suggested wording: Panel failures on hydrostatic minimum, major bond failure, or visual pinhole clustering are lot-hold defects. Finished-goods defects caused by isolated sewing error may be 100% reworked and re-inspected. Any shipment released after rework must retain original sample records and corrected inspection report. If you need a lower-MOQ sourcing framework, see low MOQ startup blanket sourcing and picnic blanket MOQ pricing 2026.

Compliance scope: specify whether it applies to film, adhesive, or full article

Compliance requests on laminated picnic mats are often too generic. Buyers should state whether requirements apply to the TPU film, the adhesive system, the face textile and dyes, or the full finished article. A declaration on raw film alone does not automatically cover the assembled mat, and an article-level test does not always tell you which component caused the issue.

Common buyer requests in this category include REACH SVHC screening on the finished article, azo dye restrictions on the dyed or printed textile, formaldehyde limits where market or retailer policy requires them, phthalate controls where plastic components are present, and California Proposition 65 review for the US market if the customer asks for it. Prop 65 is not a blanket mandatory certificate for every picnic mat, but many US private-label programs ask suppliers to assess it because laminated films, colourants, or accessory components can trigger concern.

If the article is promoted for children or family use, clarify whether there are additional requirements on colourants or extractable elements. For soft throws and children-oriented products, standards such as EN 71-3 compliance for 220gsm coral fleece kids throw blankets are often referenced in adjacent categories, but for picnic mats the relevant compliance set must still be matched to the market claim and product age grading.

For sustainability claims, ask for claim-specific support rather than vague eco language. If recycled polyester or recycled TPU content is claimed, define whether the claim applies to the face yarn, the film, or the whole article, and whether transaction certificates are required. Related sourcing guidance appears in rPET polar fleece blankets with GRS certification documentation buyers, sustainable recycled blanket sourcing, and textile certifications explained buyers.

If buyers request chemical testing, name the matrix. Example: full article test including face fabric, print, binding, film, adhesive, hook-and-loop, and handle webbing. That avoids a common gap where the supplier tests only the main body panel and leaves accessories undocumented. For skin-contact-focused programs, buyers may also request OEKO-TEX Standard 100 class guidance as a reference point, but any certificate request should be tied to the actual bill of materials and market claim.

Factory failure patterns that actually drive claims

The most common field failures on this construction are usually not dramatic full-panel leaks. More often the claims come from micro-pinholes in thin film, bond skips near roll edges, fold whitening that becomes cracking, stitch-hole seepage at bound edges, corner puckering that exposes stress points, or container-heat delamination. These are experience-based patterns seen in sourcing and factory troubleshooting, and they should be treated as risk indicators rather than absolute statistical rules.

Another common problem is misaligned commercial language. The supplier says 'waterproof' based on a good panel test, while the buyer expects a fully seam-sealed groundsheet. If the article has stitched binding and flap attachments, the safer claim language is usually water-resistant backing or moisture barrier laminated base unless the whole article has been tested and approved for a stronger claim.

Odour complaints also appear on some laminated mats, especially after tight packing. TPU generally has a better odour profile than many PVC systems, but adhesive choice, storage time after lamination, and export packing density still matter. If odour sensitivity is high, require a pre-shipment airing period and agree a simple odour assessment method with retained reference sample rather than arguing from memory after arrival.

The final pattern is carton-level inconsistency. One lot may contain acceptable centre-roll material and weak edge-roll material if slitting and edge quality are not controlled. That is why roll-position sampling, not only finished-piece spot checks, should be part of the QC plan. If the supplier is producing under social-compliance requirements for NGO or retailer channels, adjacent production-control topics are covered in BSCI audited production of 200gsm fleece donation blankets.

Copy-ready RFQ and PO clause example

Buyers often ask for wording they can paste directly into an RFQ or PO. The block below is a practical template and should be adjusted to your brand, market, and test lab arrangement.

Article: foldable picnic mat, finished size 150 × 200cm. Face: 100% polyester brushed suede, 190gsm nominal, lot average 190gsm ±5%, no roll below 180gsm. Lamination: TPU film nominal 0.030mm, density basis 1.20 g/cm3, theoretical film mass 36gsm ±10%; adhesive add-on target 8-18gsm; laminated panel nominal 240gsm, roll average 232-250gsm before binding. Backing surface: smooth or micro-embossed as approved sample. Binding: polyester woven tape, finished width as approved, 8-11 SPI, reinforced corners and handle anchors. Hydrostatic: laminated panel tested to ISO 811:2018 under lab accredited practice, project acceptance protocol to report 3 specimens per lot, TPU side to water, results by specimen location, no specimen below 1,200mm and lot average not below 1,500mm. Bond: 180° peel report in N/25mm before and after 70°C × 24h aging; no spontaneous full-width delamination. Fold durability: 200 cycles on approved fold line; no crack over 2mm, no pinhole cluster, retained hydrostatic at not less than 80% of pre-fold lot average. Finished-goods check: wet-ground dwell test 30 minutes under 3kg distributed load, no face strike-through in body area. Inspection: ANSI/ASQ Z1.4, General Level II, AQL Critical 0, Major 2.5, Minor 4.0. Compliance: finished article declaration covering face, dye, film, adhesive, binding, webbing, and accessories for buyer-requested REACH SVHC, azo, formaldehyde, phthalates, and any market-specific requirements.

This format prevents the most common sourcing gap: a soft approval sample with one construction and a bulk PO that only says '190gsm TPU picnic mat waterproof'. If the program also includes travel blankets or matching outdoor textiles, related packing and weight logic can be compared with travel airline blanket weight packing and specifying 180gsm microfleece travel blankets with nylon carry pouches.

Frequently asked

Is 190gsm the total weight of the picnic mat? Usually no. On this product type, 190gsm commonly refers to the face fabric only. The finished laminated panel is higher once TPU film and adhesive are added, often around 220-285gsm before sewing components. The finished article weight then increases again with binding, flap, handle, and any padding.

What hydrostatic head should I ask for on a TPU picnic mat? For damp-grass picnic use, many buyers target roughly 1,200-1,500mm minimum on the laminated panel, with some programs going higher. That is a commercial sourcing benchmark, not a universal legal threshold. The right number depends on construction, claim language, and whether you are also controlling stitch-hole leakage and fold durability.

Should ISO 811 be run with the TPU side facing the water? For picnic-mat use simulation, many buyers specify TPU-to-water orientation because the backing faces the wet ground in service. Some labs or categories may use a different reporting convention, so the orientation should be locked on the PO and test request. Treat that as a project-specific protocol, not as universal ISO wording.

How do I verify TPU film content on incoming rolls? Do not rely only on nominal thickness. Ask for face-fabric GSM before lamination, finished laminated panel GSM after lamination, and declared adhesive add-on range. Where practical, use destructive separation or cross-section review to compare actual build against the approved BOM. Gravimetric roll checks are more useful commercially than theoretical conversion alone.

What laminate QC items matter beyond hydrostatic testing? Peel strength, aging resistance, fold durability, and visual laminate quality are the main controls. Buyers should check for bubbles, voids, pinholes, edge lift, and hydrostatic loss after heat aging or fold cycling. A panel that passes one initial hydrostatic result can still fail in use if the bond or fold zone is weak.

Does TPU automatically mean better quality than PEVA or PVC backing? No. TPU can offer a softer hand, lower odour, and good flex performance, but quality still depends on film grade, thickness, adhesive control, edge sewing, and fold design. A poorly laminated TPU mat can fail earlier than a well-controlled alternative backing.

What compliance requests are normal for this product? Common requests include REACH SVHC review on the full article, azo dye restrictions on the textile, formaldehyde limits where retailer policy requires them, phthalate review for plastic components, and California Prop 65 assessment if the US customer asks for it. Buyers should state whether the requirement applies to raw materials, accessories, or the full finished article.

Can I call the finished mat waterproof if the panel passes ISO 811? Be careful. ISO 811 covers the laminate panel, not the stitched finished article. If the mat has sewn binding or flap attachments, stronger claims should only be used if the finished article has also passed an agreed use-simulation or article-level test. Many buyers use safer wording such as moisture-resistant backing or water-resistant base.
