Base construction: what 190T and 100gsm really buy
For camping retail, 190T polyester shell picnic blankets sit between lightweight fleece throws and structured Oxford/EPE picnic mats. In common China supplier usage, 190T refers to the approximate total warp plus weft thread count per square inch for a plain-weave polyester taffeta. It is a weaving density convention, not a denier, GSM or waterproofness claim. Most 190T taffeta used here is around 68D to 75D polyester, usually 55–75gsm after printing and light finishing. A higher thread count can improve cover and print sharpness, but the backing layer still decides wet-ground performance.

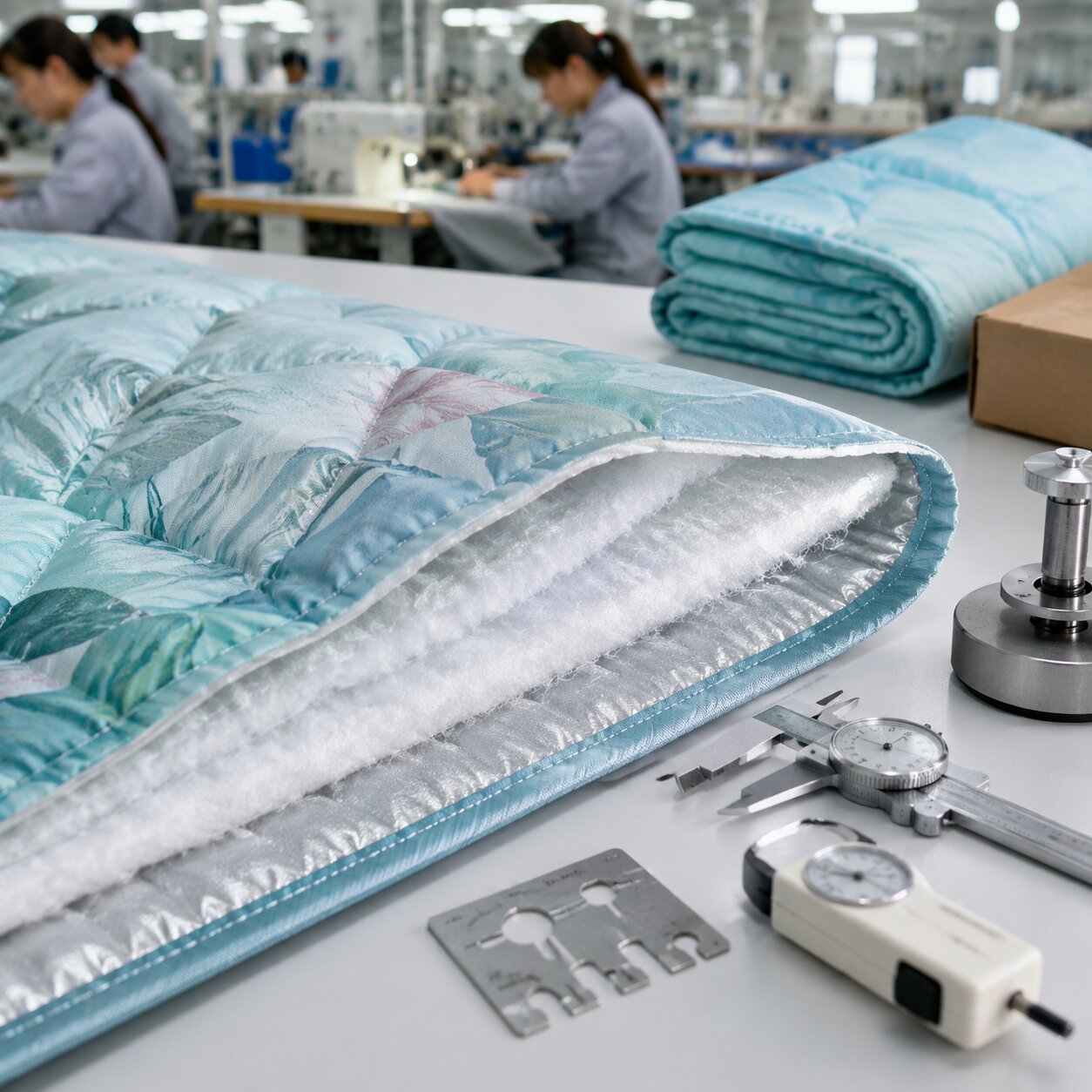

A practical three-layer build is 190T printed polyester face, 100gsm needle-punched polyester filling and a PEVA, PU-coated polyester or TPU-laminated backing. Finished goods normally land around 220–320gsm before straps, labels and retail packaging. A 150 x 200cm blanket in this construction may weigh roughly 0.75–1.15kg depending on backing thickness, binding and compression. If the PO demands a 600g finished unit at this size, the factory must remove material from filling, backing or edge finish; comfort and durability will change. Write a finished weight target with tolerance, usually ±5%, instead of only naming layer GSM.
The 100gsm filling is not lofty quilt batting. It is a mechanically bonded polyester web, often made from 3D or 6D staple fibre, needle-punched into a flat sheet. It adds cushion, hides small stones and gives the blanket body during folding. It can also creep or ridge if stitch channels are too wide or if the blanket is washed beyond the intended care method. Treat this layer as stabilised padding, not insulation. If warmth is part of the retail promise, a brushed fleece face or sherpa/fleece construction is a more honest route, such as 300gsm sherpa-to-coral fleece blankets.
Against 420D Oxford picnic mats with EPE foam, this 190T build folds smaller, accepts all-over print more cleanly and ships with lower cube. It will not match Oxford/EPE for kneeling comfort, abrasion or puncture resistance. Against foldable picnic mats with webbing handles, it is best positioned as a campsite blanket, beach layer or festival throw with a water-resistant underside, not as a waterproof groundsheet.
Recommended specification table
Use a fixed spec table in the buying brief and PO. Sampling drifts when the brief says only “190T picnic blanket, waterproof backing”. The numbers below are workable starting points for a 150 x 200cm retail camping blanket; adjust after counter-sample approval and carton trials.
| Item | Recommended value | Bulk tolerance / note |
|---|---|---|
| Face fabric | 190T printed polyester taffeta, 68D–75D, 55–75gsm | ±5gsm; confirm finished handfeel after print and calendaring |
| Filling | 100gsm needle-punched polyester, white or natural white | ±8%; no hard lumps, thin bands or visible contamination |
| Backing: PEVA | 0.10–0.12mm for standard retail; 0.08mm only for value programmes | Thickness ±0.015mm; check phthalates and crease whitening |
| Backing: PU-coated polyester | 190T/210D polyester base with PU coating, 800–1500mm hydrostatic head before quilting | Coating weight and HH to be stated by lot; softer than heavy PVC, stronger than thin film |
| Backing: TPU laminate | TPU film on polyester, often 0.03–0.06mm film depending on target handfeel | Peel strength and odour control are critical; trial before bulk |
| Quilting channel spacing | 10–15cm straight channels for 100gsm filling | ±1cm average; no channel bow above 2cm over 150cm span |
| Stitch density | Quilting 8–10 SPI; binding 7–9 SPI | No skipped stitches over 3 consecutive stitches; no broken thread at channel ends |
| Finished size | 150 x 200cm measured after sewing and relaxed 24h | ±2cm length/width; diagonal difference preferably ≤3cm |
| Finished weight | 0.75–1.15kg for 150 x 200cm, depending on backing and accessories | ±5% against approved sample and PO target |
| Retail folding | Common folded size 30–40cm wide, 20–35cm high, 8–14cm thick | Avoid hard strap marks and PEVA white creases |
| Carton compression | Pack to recover to approved folded thickness after 24h release | Do not exceed compression that causes permanent film creasing, binding distortion or odour build-up |
PO wording example: “Finished size 150 x 200cm after sewing, 190T polyester printed face 60–70gsm, 100gsm needle-punched polyester filling, 0.10–0.12mm PEVA backing, straight quilting channels at 12cm ±1cm, quilting 8–10 SPI, bound edge 2.5–3.0cm finished width, finished weight target 900g ±5%, folded with strap, wipe-clean backing, carton compression recovery required.” This language is less elegant than a catalogue description, but it gives QC something measurable.
Stitch channel design and failure modes
Stitch channels control the relationship between the slippery 190T face, the needle-punched filling and the moisture barrier. The safest low-risk layout is straight-line quilting across the width or length at 10–15cm spacing. Wider channels, such as 20–25cm, reduce sewing time and leave a cleaner print surface, but they let the filling float. On a 150 x 200cm blanket, 12cm spacing gives roughly 16–17 long channels if sewn across the 200cm direction. That is both a design feature and a cost item because it adds machine time and needle perforations.
Avoid very narrow channels below 6–7cm unless the buyer wants a padded fashion look. Narrow quilting stiffens the blanket, increases needle holes in the barrier and can create water paths when the backing is lightly coated. Diamond quilting looks stronger in photos but every crossing point concentrates thread tension and creates additional perforations. For damp grass, fewer controlled channels plus a better backing often outperforms dense decorative quilting. Ultrasonic quilting can reduce thread bulk on some synthetic assemblies, but layer compatibility must be proven; see ultrasonic quilting for picnic blankets before specifying it as a blanket cure-all.
Thread should be polyester, commonly Tex 27–40 depending on needle size and seam appearance. A size 11–14 needle is typical, but the final choice depends on film thickness, coating, face density and thread. Oversized needles leave visible punctures in PEVA and can start tear lines. Undersized needles cause skipped stitches, thread heat and breakage on long channels. Higher SPI is not automatically stronger; 12–14 SPI can perforate a PEVA or PU barrier like a postage-stamp edge. For this construction, 8–10 SPI for quilting and 7–9 SPI for binding is a practical range.
Common factory defects are channel bowing, filling migration, puckered face fabric, exposed loose thread ends, binding twist, barrier cracking along stitch lines and water tracking through needle holes. Puckering usually comes from mismatched feed tension: 190T slides, filling drags, and film backing stretches or grips. A walking-foot or compound-feed setup helps. Channel ends should be back-tacked or locked inside the binding, not left exposed under a heat-cut edge. Inspection should include a seam bow check, not only stitch count.
Moisture barrier choices: PEVA, PU or TPU
The face fabric does not stop ground moisture. The backing does that job, and the claim must match the backing and the quilting. PEVA film is common for price-sensitive camping retail because it is light, flexible and easy to wipe. For this category, 0.10–0.12mm is a more balanced standard than 0.08mm. Thin PEVA can pass a showroom handfeel check but show pinholes, cold cracking, strap crease marks and white stress lines after compression. If the product is tightly folded for months, test the exact fold pattern before approving bulk.
PU-coated polyester backing is more textile-like. A 190T or 210D polyester base with PU coating can be specified to a pre-quilting hydrostatic head target, often 800–1500mm for picnic use. Higher values are possible but usually add cost, coating stiffness and risk of coating tack under heat. PU handles sewing better than unsupported film because the woven base carries load, but needle holes still reduce finished-blanket water resistance. For outdoor retailers, PU language is often easier to manage than PEVA because it aligns with tent and pack fabric specifications.
TPU lamination is the premium route. A TPU film bonded to polyester can give better flex durability and cold performance than basic PEVA and can support higher hydrostatic resistance when laminated correctly. It also costs more, needs tighter bonding control and can feel rubbery if the film is too thick. Poor TPU lamination causes bubbles, peel at fold lines and odour complaints. If a programme needs a suede face with higher hydrostatic targets, compare it with TPU-laminated picnic mats rather than copying the spec into a quilted 190T blanket.
Hydrostatic head should be handled in two layers of testing. First, test backing material before assembly using ISO 811 or AATCC 127 and record the lot result. Second, test the finished blanket because quilting punctures the barrier. A backing may show 1000mm hydrostatic head as flat yardage and still leak at stitch channels. For finished goods, a practical damp-grass test is more relevant: place the blanket backing-down on wet absorbent cloth or saturated turf simulation, apply a 5kg distributed load over a 30 x 30cm plate for 30 minutes, then inspect the face and filling. Acceptance for “water-resistant backing” should be no visible wet transfer to the face fabric and no wet filling beyond stitch perforation shadows. Do not claim “waterproof blanket” unless seam sealing or construction-level testing supports it.
Commercial choices: MOQ, cost drivers and substitutions
MOQ is driven less by sewing and more by printed face fabric, backing procurement, binding colour and retail packaging. A plain stock colour may run at lower MOQ if fabric is available. Custom all-over print, custom PEVA colour, TPU lamination or dedicated retail belly band usually pushes MOQ upward because the factory must book print, lamination and cutting together. Sampling is normally about 5–10 working days for a construction sample using available materials, and 10–18 working days when custom print or backing colour is required. Bulk lead time is often 30–45 days after sample, artwork, packaging and deposit approval, but peak season and lamination queues can extend this.
Cost order normally runs PEVA lowest, PU-coated polyester middle and TPU laminate highest. PEVA saves cost and weight but is most vulnerable to puncture, crease whitening and claim limits. PU adds material cost and weight but improves textile durability and hydrostatic language. TPU adds the most cost and process risk but can justify a premium retail claim if peel, odour and flex tests pass. Carton cube also changes: a soft PEVA blanket can be compressed more than a PU or TPU-backed blanket, but over-compression can create permanent fold lines.
Common cost-down substitutions to watch for include 0.08mm PEVA replacing 0.10–0.12mm, 80gsm filling replacing 100gsm, 170T face replacing 190T, 15–18cm quilting replacing 10–12cm, narrow binding replacing 2.5–3.0cm finished binding, unbranded thread colours replacing matched thread, and loose strap stitching replacing reinforced bartacks. Ask the factory to declare any substitution before bulk cutting. A counter-sample approved only by photo is not enough; weigh it, measure it, fold it and wet-test it.
Packing ratio should be set by recovery, not only container loading. For a 150 x 200cm item, common export cartons may hold 10–20 pieces depending on fold size, backing and retail packaging. Compressed packing can lower CBM, but if the blanket cannot recover within 24 hours after unpacking, the saving becomes a return risk. For CIF/DDP planning, carton cube can matter as much as FOB price; the same principle appears in CIF Hamburg costing for fleece throws, even though the product construction is different.
Packaging and folding controls
Decide the fold pattern during sampling. A clean retail fold is usually length folded two or three times, then width folded to match strap or flap position. Keep PEVA film on the inside of severe folds when possible, because glossy or metallic PEVA can show white stress marks on exposed fold peaks. If the blanket uses a printed face, align the hero print panel so the retail-facing fold is consistent across the carton. If the item has a flap, handle or hook-and-loop closure, check whether the attachment seam creates a pressure ridge through stacked cartons.
Strap pressure should hold the product without crushing the edge binding. Over-tight elastic or webbing straps create permanent dents in PEVA and can distort quilt channels. Hook-and-loop flaps should be positioned so the hook side does not abrade the printed 190T face during transit. For hanging retail packs, test the hang hole or header card under loaded conditions; a wet-resistant backing adds weight and can tear weak cards.
Carton compression checks should be part of final inspection. Open one fully packed master carton after at least 24 hours in packed condition, remove top, middle and bottom pieces, and let them recover flat for 24 hours at room condition. Check folded thickness recovery, channel distortion, PEVA whitening, trapped odour and binding curl. If carton stacking is heavy, add a simple warehouse simulation: place the approved carton under a static load similar to expected pallet stacking for 24–48 hours, then repeat the recovery check. Do not approve a carton load only because the carton passes a drop test; film-backed blankets fail by compression memory as well as impact.
For moisture-sensitive shipments, use clean polybags with ventilation judgement based on odour risk and retailer requirements. Fully sealed bags can trap solvent or film odour if goods are packed too soon after lamination or printing. Silica gel may help with carton humidity but will not solve wet goods or uncured coating. Cartons should be kept off wet floors and away from direct heat because PEVA and some coatings deform under poor storage.
Inspection methods and AQL checks
Use a normal pre-shipment inspection plan such as ANSI/ASQ Z1.4 or ISO 2859-1, commonly General Inspection Level II with AQL 2.5 for major defects and 4.0 for minor defects unless the retailer has stricter rules. Critical defects should be zero tolerance: mould, sharp contamination, wrong safety label, severe odour, banned substance risk or backing holes that cause obvious leakage. For buyer-side setup, blanket quality control inspection gives a broader inspection framework; this article narrows it to 190T picnic blankets.
Inspection checklist language should be specific: measure finished size on a flat table after relaxing the blanket; record length, width and diagonals. Acceptance: finished size within ±2cm and diagonal difference preferably ≤3cm for 150 x 200cm. Weigh at least 5 pieces per colour or per inspection lot; acceptance: within ±5% of approved sample or PO target. Measure channel spacing at multiple positions; acceptance: nominal spacing ±1cm average, no single gap more than 2cm off unless caused by designed border spacing. Check seam bow by laying a ruler or tape along the intended channel line; acceptance: bow not above 2cm over a 150cm span unless approved as a design feature.
Backing inspection needs good light and hand pressure. Defect descriptions for inspectors: pinhole is a visible light point or puncture through film/coating; crease whitening is a permanent pale line after flattening; blocking is backing surfaces sticking together; delamination is film or coating lifting from base fabric; orange peel is uneven coating texture that may be acceptable only if approved; fish-eye is a round coating void; cold crack is a split line along a fold. Major defects include holes, delamination above 10mm, wet transfer failure, heavy odour, broken quilting, open binding seam, wrong backing material, wrong print colour or barcode mismatch. Minor defects include loose thread under agreed length, small scuff on backing outside main display face, slight channel waviness within tolerance or small print speck within retailer limit.
Run quick functional checks during inspection. Damp-grass leakage test: place backing on saturated cloth, apply a 5kg distributed load over 30 x 30cm for 30 minutes, then inspect face and filling; accept no visible wet transfer to the face and no local wet patch larger than the stitch-hole area. Lamination peel: cut a small retained sample strip from approved test yardage or production waste and perform a hand peel plus lab peel where required; accept no easy film separation under normal hand peel and no progressive peel after folding. Carton recovery: unpack top/middle/bottom pieces, rest 24 hours, then check fold memory and whitening. Odour: open a sealed polybag after 24 hours and assess immediately; strong solvent, sour, mould or plasticiser odour should be major. Colourfastness: for dark prints, request ISO 105-X12 or AATCC 8 rubbing; practical targets are often dry grade 4 and wet grade 3–4, subject to retailer standard and artwork risk.
Care, compliance and claim control
Care labelling must match the construction. Many PEVA-backed picnic blankets should be labelled wipe clean only or spot clean, because machine washing can crease film, open needle holes, migrate filling and weaken binding. If the buyer wants washable claims, define the cycle: for example ISO 6330 or agreed domestic gentle cycle at 30°C, mild detergent, no tumble dry, line dry. Acceptance after 3 cycles might be shrinkage within ±3%, no backing delamination, no filling ridge above 10mm, no open seam, no binding twist above 15mm and no obvious print bleed. Do not approve a washable claim from one hand-rinsed showroom sample.
For EU and UK markets, review REACH/SVHC requirements for fabric, coatings, inks, labels, straps and packaging. For US retail, review California Prop 65 exposure risks based on actual materials and packaging, not only the blanket fabric. Azo dye restrictions, disperse dye concerns, heavy metals in prints, phthalates in PEVA/PVC-like films, and PAHs in some dark rubberised components can all become retailer questions. If PFAS-free, PFC-free or fluorine-free claims are made, require supplier declaration and suitable screening for the specific finish; do not assume a water-resistant backing is automatically PFAS-related or PFAS-free. The topic overlaps with PFC-free water-repellent picnic blankets, but a film backing and a face DWR finish are different claim paths.
Packaging claims also need substantiation. Recycled content, FSC paper belly bands, compostable bags, waterproof claims, antibacterial claims and baby/kids suitability all create documentation requirements. Do not borrow compliance from a different blanket series or a different backing. If the retail channel sells to children, add age-grade review and chemical testing appropriate to the market; EN 71-3 may be relevant for certain children’s articles, but it should not be claimed unless tested on the actual materials and colours. For general textile chemical frameworks, see textile certifications explained for buyers.
Recommended PO wording for claims: “Product claim limited to water-resistant backing. No waterproof full-blanket claim unless finished-goods leakage test is passed. Supplier to confirm backing material, thickness, phthalate status if PEVA, REACH/SVHC review for EU/UK, Prop 65 review for US if applicable, azo dye compliance for printed face and no intentional PFAS finish unless separately declared and tested.” This wording protects the buyer from accidental over-claiming and gives the factory a clear document request list.
Frequently asked
Does 190T polyester mean the picnic blanket is waterproof? No. 190T is a supplier convention for approximate warp plus weft thread count in the polyester taffeta face. It does not define denier, GSM or waterproofness. Water resistance comes from the backing material, coating or film, and finished performance is reduced by quilting needle holes.
What is a practical spec for a 150 x 200cm 190T picnic blanket? A balanced starting point is 190T printed polyester face at about 60–70gsm, 100gsm needle-punched polyester filling, 0.10–0.12mm PEVA or PU-coated polyester backing, 10–12cm straight stitch channels, 8–10 SPI quilting, 2.5–3.0cm finished binding and finished weight around 0.85–1.05kg depending on accessories.
Should I choose PEVA, PU-coated polyester or TPU backing? PEVA is usually the lowest-cost and lightest option but has higher risk of puncture, crease whitening and claim limits. PU-coated polyester costs more and is more textile-like, with hydrostatic head targets commonly around 800–1500mm before quilting for picnic use. TPU is the premium option for flex durability and higher resistance, but it needs tighter lamination, odour and peel control.
How should hydrostatic head be specified? Test the backing material before quilting using ISO 811 or AATCC 127, then run a finished-blanket damp-surface test because stitch channels puncture the barrier. A practical finished-goods acceptance criterion is no visible wet transfer to the face after 30 minutes on saturated cloth under a 5kg distributed load over 30 x 30cm.
What AQL checks matter most for this construction? Use finished size, finished weight, diagonal difference, channel spacing, seam bow, SPI, skipped stitches, backing pinholes, delamination, odour, colourfastness, damp-grass leakage and carton compression recovery. A common inspection setup is ISO 2859-1 or ANSI/ASQ Z1.4 General Level II with AQL 2.5 major and 4.0 minor, adjusted to retailer rules.
Can these blankets be machine washed? Only if the construction is developed and tested for washing. Many PEVA-backed picnic blankets should be wipe clean or spot clean. If machine washable, define the method, such as gentle 30°C wash with line dry, and set acceptance limits for shrinkage, delamination, filling migration, seam opening and binding twist.
What cost-down substitutions should buyers watch for? Common substitutions include 0.08mm PEVA replacing 0.10–0.12mm, 80gsm filling replacing 100gsm, 170T face fabric replacing 190T, wider quilting channels, narrower binding, weaker strap stitching and lower carton packing quality. Require written approval for material or construction changes before bulk cutting.
How long do samples and bulk production usually take? Using available materials, a construction sample often takes about 5–10 working days. Custom print, custom backing colour or TPU lamination may take about 10–18 working days for sampling. Bulk production is often 30–45 days after sample, artwork, packaging and deposit approval, subject to season and material booking.
