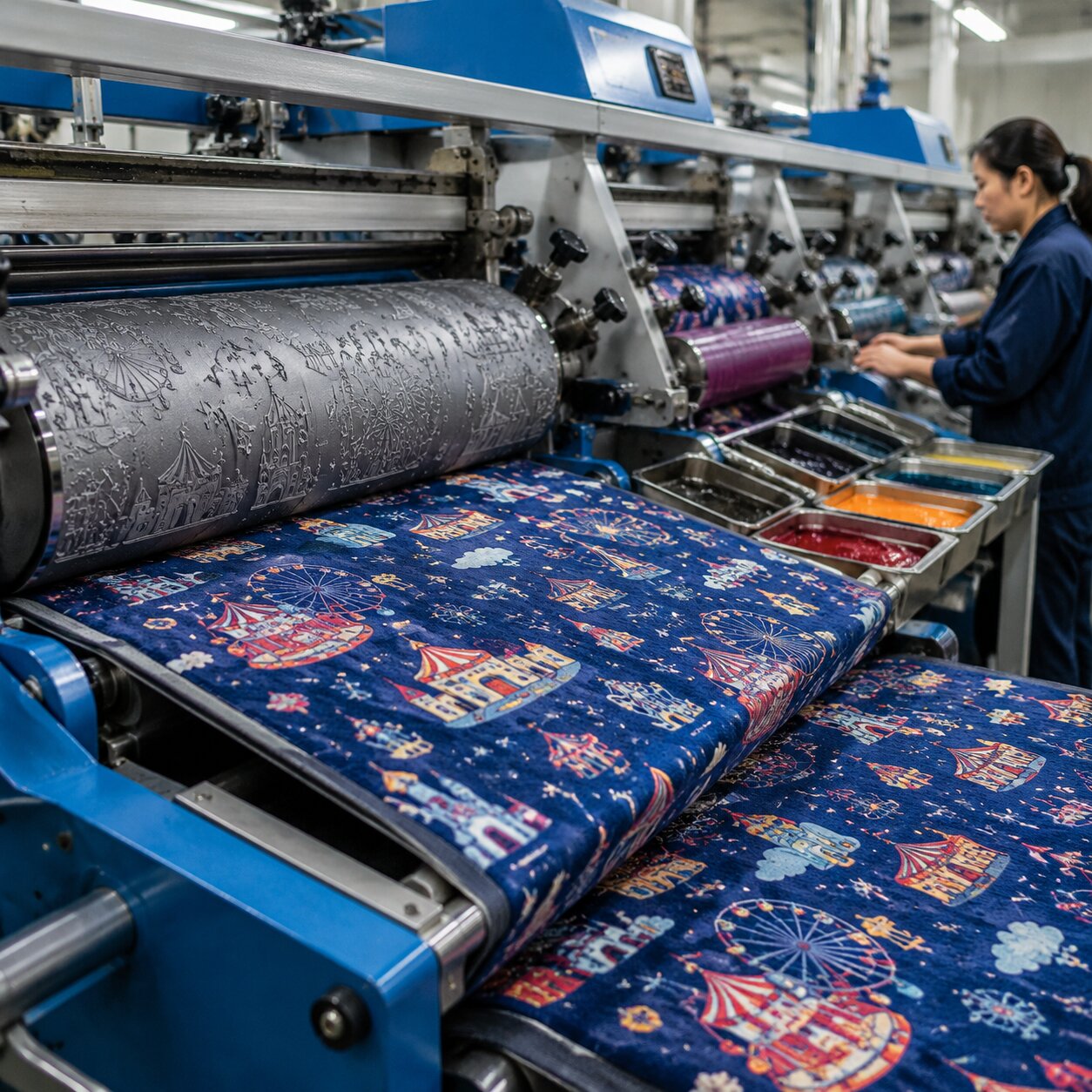

Rolls of 220gsm polar fleece passing through a rotary screen printing line with printed blanket panels visible

Scope: pigment rotary printing on 220gsm polyester fleece

In this article, rotary screen printing means pigment print paste applied through engraved cylindrical screens onto brushed polyester polar fleece, then dried and cured so the binder anchors pigment to the fibre surface. Disperse rotary printing can also be used on polyester, normally with heat fixation and washing, but many fleece blanket projects use pigment systems because they support opaque colours, simpler processing and broad artwork options. The trade-off is handfeel: too much binder can flatten pile, stiffen the face and increase dry or wet crocking risk.

A typical 220gsm polar fleece blanket base is circular-knit 100% polyester, brushed on one or both faces and sheared to a controlled pile height. Yarn inputs often sit around 75D to 150D, with 144F or 288F filament counts depending on softness target and budget. The base fabric must be stable enough for printing tension. If the fabric curls, skews or grows during processing, the print repeat may be technically correct on the roll but wrong after cutting.

For theme park retail, 220gsm is a useful middle weight: warmer and more substantial than airline microfleece, but still packable for stroller baskets, hotel shops and seasonal queue-line merchandise. Buyers comparing fleece options can also review fleece blanket weight planning and custom blanket decoration methods before committing to rotary screens.

Rotary is strong for repeated all-over designs with a limited colour count. It is usually weak for photographic panels, short SKU runs, dozens of colours, or artwork where every blanket must show one complete illustration centred edge-to-edge. For those cases, sublimation on suitable polyester fleece or digital panel printing may be a better route, even when the unit price looks higher at first quote stage.

Theme park artwork adds a licensing layer. Character faces, ride logos, anniversary badges and legal marks need approved vector files, Pantone or LAB targets, placement rules and written priority notes. A 1 mm shift in a confetti ground may pass; a 1 mm shift across a character eye, mouth or wordmark may fail the licensor review.

Repeat size: how screens map onto blanket panels

Rotary screen repeat is governed by screen circumference. Common repeat options in blanket printing are around 640 mm, 820 mm, 914 mm or 1018 mm, depending on the machine and screen inventory. The usable repeat can be slightly less after allowing for screen join, registration marks and edge control. Do not assume a 150 x 200 cm blanket can carry one giant seamless scene by rotary screen; it usually carries a repeated pattern unless the artwork is engineered around the screen repeat and cutting map.

Example: for a 130 x 170 cm blanket using a 640 mm repeat in the length direction, the 1700 mm panel length equals 2.66 repeats. The finished piece will show two full repeats plus a partial repeat, and the cut line may land through a motif unless the artwork is built as a forgiving all-over pattern. If the same blanket uses a 914 mm repeat, the 1700 mm length equals 1.86 repeats, so large motifs repeat less often but the partial repeat is still visible unless hidden in a ground pattern or placed outside the main visual zone.

Fabric width matters as much as repeat length. If printed fabric is 160 to 180 cm wide, a 130 cm wide blanket can be nested with selvedge waste and allowance for skew correction. A 150 x 200 cm family size may need a wider fabric, a different cutting direction or higher waste. Border prints are harder than all-over prints because the printed frame must land correctly after relaxation, cutting and sewing.

For all-over repeats, a practical cutting drift target is often within ±10 mm where motifs are non-directional and non-critical. For border prints, placement-sensitive character panels or logo frames, buyers should consider ±3 to ±5 mm for visible borders, but only if the artwork, fabric stability and cutting method support it. A 50 mm printed frame on a 130 x 170 cm blanket will look uneven if cutting drifts 10 mm on one side and 0 mm on the other.

Fine-line artwork needs early screening. On brushed 220gsm fleece, positive lines below about 0.4 to 0.6 mm may break or look fuzzy; reverse-out text in dark grounds should be larger than on paper packaging because paste gain and pile recovery can close small openings. Large flat colour fields can show streaking if paste viscosity, squeegee pressure, screen condition or fabric tension is unstable.

Useful PO wording: “Rotary screen pigment print, artwork scale and repeat as approved strike-off, pile direction and cut direction fixed, no unapproved repeat rescale or motif repositioning.” Without this, a supplier may adjust scale to fit available screens. Sometimes that is harmless; for licensed merchandise it can change character proportions and fail approval.

Colour count, MOQ and printing route decision points

Each rotary colour normally requires its own engraved screen. For fleece blanket programs, 3 to 6 colours is a comfortable commercial range. Seven or eight colours may be possible, but each extra screen adds engraving cost, registration risk, wash-up time, strike-off complexity and MOQ pressure. Metallic, glitter, puff, high-density or glow effects should be treated as separate developments with separate testing, not casual add-ons.

Screen charges vary by screen size, mesh, engraving method and local supplier. As a buying assumption, many projects should budget a separate one-time charge per colour screen, plus colour kitchen and strike-off charges if the order does not reach the mill’s preferred production quantity. The actual charge should be quoted line by line, not hidden in the unit price, especially where licensed artwork may repeat in later seasons.

Practical MOQ bands are usually driven by design count and colour count. For one design in 3 to 4 colours, a realistic starting point is often 800 to 1,500 pieces per size, with better cost from about 2,000 to 3,000 pieces. For 5 to 6 colours, expect stronger pressure toward 1,500 to 3,000 pieces because setup time and registration control increase. For 7 to 8 colours or border layouts, many mills will prefer 3,000 pieces or more, or will quote a surcharge for smaller runs.

Colourways are not free. One artwork in three colourways may require separate paste mixing, additional lab matching and possibly different screens if separations change. One design across two sizes is easier when the same repeat scale works for both, but cutting yield, label position, carton count and packing materials still change. Buyers should identify must-have SKUs before RFQ, rather than asking the mill to price every possible ride, season and colour variant at once.

As a rough decision threshold, digital or sublimation routes are often more sensible for 100 to 600 pieces per artwork, many SKUs, photographic artwork or rapid test launches. Rotary starts to become more attractive when the same repeat runs in the low thousands and colour count is controlled. For one 3 to 5 colour all-over design at 2,000 to 10,000 pieces, rotary can be commercially strong. For 300 pieces each across six ride-specific artworks, the screen cost and approvals often make rotary the wrong tool.

Sublimation is not automatically better. It needs a compatible polyester face, gives a different handfeel and may struggle with deep colour density on lofty fleece depending on fabric and process. Digital panel printing can solve SKU variety but may cost more per piece and require different artwork preparation. Buyers should compare total landed cost, approval time, failure risk and replenishment plan, not only the first unit price.

Fabric weight, GSM and physical tolerances

A 130 x 170 cm blanket at 220gsm contains about 0.486 kg of fabric before cutting waste, sewing thread, label and packaging: 1.30 x 1.70 x 0.220 = 0.486 kg. In real production, measured piece weight can move because GSM is tested on conditioned specimens, pile is brushed and sheared, and pigment add-on changes face weight. A packed piece weight around 0.55 to 0.65 kg may be normal depending on overlock yarn, label, belly band, hanger, polybag and carton packing.

For PO control, state the test method and tolerance. GSM can be tested by ISO 3801 or ASTM D3776, with a practical production tolerance such as target 220gsm ±5% unless the buyer requires tighter control and accepts higher sorting cost. Finished size tolerance for fleece blankets is commonly set at ±2% for standard all-over prints; for a 130 x 170 cm blanket that means roughly ±2.6 cm width and ±3.4 cm length. Retail programs often prefer a tighter declared tolerance such as ±2 cm, but the mill must confirm shrinkage and relaxation data.

Skew and bow should not be ignored. For all-over prints, skew or bow within 2% of width is a common practical target; for border prints, 1% may be needed to keep frames visually square. Print registration for multi-colour rotary fleece should be specified by artwork risk: ±1.0 to ±1.5 mm for character outlines and text is a reasonable target; looser tolerance may be acceptable for scattered stars, clouds or abstract grounds.

Shade tolerance should be measurable. For licensed merchandise, set a physical approved standard and, where possible, define instrumental shade tolerance such as Delta E CMC or DE2000. A practical target may be Delta E ≤1.0 to 1.5 for critical character colours and ≤2.0 for non-critical ground colours, subject to pile direction and viewing geometry. Always keep the signed strike-off as the commercial standard because fleece pile can read differently under different instruments and light angles.

Shrinkage after washing should be tested on the finished blanket, not only base fabric. Depending on construction and finishing, a common target is within ±3% after one or three home-laundry cycles, using ISO 6330 or AATCC 135 with the agreed wash condition. If the blanket is sold as a children’s item or premium retail product, define wash label claims conservatively and align them with test results.

Edge finishing affects measured size and appearance. Overlock is cost-efficient and common for park fleece. Whipped stitch or binding gives a heavier retail look but adds cost, lead time and more stitch-defect inspection. For edge comparisons, see polar fleece stadium blanket edge specification.

Handfeel, curing and colourfastness risks

Pigment print durability depends on binder chemistry, curing temperature, dwell time and the amount of paste needed for opacity. Under-cured prints can crock, bleed in washing or feel tacky. Over-cured fleece can feel harsh, lose loft or show yellowing on pale grounds. Bulk production should record curing settings and line speed, and the mill should not change them after strike-off approval without notice.

Dark grounds carry the highest risk. Navy, black, deep red and saturated purple need more pigment and binder, especially when printed over a raised pile. More binder can reduce loft, create a dry film on pile tips and increase wet crocking risk. Buyers should approve handfeel after one wash, not only fresh from the line. The physical standard should say what is acceptable: for example, “printed face softer than boardy binder film, pile not glued flat, reverse face loft retained.”

Suggested colourfastness tests include ISO 105-C06 or AATCC 61 for washing, ISO 105-X12 or AATCC 8 for rubbing/crocking, and ISO 105-E04 for perspiration where the blanket may be used in warm outdoor queues. For many pigment printed fleece orders, dry crocking grade 4 and wet crocking grade 3 to 4 are realistic targets when artwork is not overloaded with dark paste. Very deep colours may need buyer-approved risk notes rather than unrealistic pass claims.

Pilling should be checked because printing and curing can change surface behaviour. ISO 12945-2 Martindale pilling or ASTM D3512 random tumble pilling may be used depending on the buyer’s protocol. For retail fleece, buyers often ask for grade 3 to 4 after the agreed cycle count. Anti-pilling requirements should be agreed with the base fleece supplier, not added after printing. For pilling specification detail, see anti-pilling test requirements for polar fleece blankets.

Rub marks and pile crushing can occur during roll handling, folding and carton compression. Printed pile may show pressure shine more than solid dyed fleece. Bulk packing trials should check whether folded edges, belly bands, hangers or vacuum compression create permanent marks. If the blanket is gift-shop merchandise, shelf appearance after carton opening matters almost as much as lab colourfastness.

Strike-off approval: what to sign before bulk

A strike-off is not a marketing mock-up. It is the buyer’s production-intent proof of fabric, pigment paste, screen engraving, colour matching, curing and finishing. It should be printed on the same or closest available 220gsm fleece base, brushed and sheared in the same direction as bulk. If a smoother substitute fabric is used, note that colour and line sharpness may not transfer to the final pile.

Ask for at least two full repeat sections, preferably across usable fabric width. A small A4 cutting can hide repeat joins, registration drift, shade banding and colour balance across the roll. For border or placement-sensitive layouts, request a panel-size strike-off or a cutting map marked with finished blanket size, seam allowance and allowed drift.

For licensed artwork, the licensor or brand team should approve the same physical strike-off as sourcing and QA. Comments must be consolidated. If merchandising asks for brighter red, QA asks for softer handfeel and the licensor asks for sharper outline, the mill needs one ranked instruction set; otherwise the second strike-off may solve one issue and create another.

The approval sheet should list artwork version, screen repeat, colour references, fabric GSM, face side, pile direction, edge construction, label position, packing concept and test requirements. If overlock, whipped stitch or binding is used, edge yarn shade should be approved against the printed ground. If a neck label, woven patch or hangtag carries licensed marks, it should be checked against the artwork approval file.

Review under controlled light. D65 daylight is a useful baseline, and TL84 or store lighting may be relevant for park retail shops. Mark pile direction with an arrow. Polyester fleece can look like two shades when panels are rotated 180 degrees, especially in dark grounds or high-pile surfaces.

Avoid vague strike-off comments. Better wording is: “Pantone 186 C red acceptable on pile face under D65; increase yellow half step in castle highlight; black outline registration maximum ±1.5 mm; handfeel approved after one home wash at 30°C; edge overlock to match ground navy within approved shade band.” This level of instruction reduces rework and protects both buyer and mill.

Inspection plan: AQL, defects and carton checks

For general retail fleece blankets, a common final inspection approach is ANSI/ASQ Z1.4 or ISO 2859-1, general inspection level II, with AQL 2.5 for major defects and AQL 4.0 for minor defects. Critical defects should be 0 accepted. Buyers with licensed merchandise, children’s products or high-value park retail may tighten major AQL to 1.5 or add a separate artwork audit. The inspection plan should be written before production, not negotiated after cartons are packed.

Major print defects should include wrong artwork version, missing colour, visible registration failure on character features or text, shade outside approved standard, obvious shade banding across the roll, unapproved repeat scale, contaminated print paste, severe crocking, large stains, holes, needle cuts and wrong finished size outside tolerance. Minor defects may include small isolated specks, slight pile disturbance, minor thread tails or small edge waviness within agreed limits.

Fleece-specific inspection must look for rub marks, pile crushing, pressure shine, brushing lines, shearing streaks and roll-end shade variation. Inspectors should unfold pieces fully, not only check the top fold in the carton. Dark pigment prints should be rubbed with a clean white cloth as an on-site warning check, while formal crocking grades still require ISO or AATCC lab testing.

Edge and sewing defects need separate criteria: skipped stitches, broken overlock, wavy edges, loose thread chains, wrong thread colour, open seams, corner puckering, uneven binding width and sharp label corners. For overlock blankets, specify stitch density range, such as 3 to 5 stitches per cm if that matches the approved sample, and require secure back-tacking or thread-chain control at corners.

Label and packaging checks are important for theme park goods. Inspect label placement tolerance, country-of-origin marking, fibre content, care label, barcode scanability, hangtag version, polybag warning text where required, suffocation warning size and licensed legal lines. Carton marks should match PO, SKU, colourway, size, quantity, gross weight and destination routing. For a broader checklist, see blanket quality control inspection and AQL 2.5 blanket inspection checklist.

Carton sampling should include top, middle and bottom cartons from different pallet positions or production lots. If the order uses multiple print lots, colourways or sizes, sample each lot separately. Inspect carton compression, moisture signs, odour, crushed pile at fold lines and whether retail presentation survives unpacking. Licensed artwork conformance should be checked against the approved file and strike-off, not against a low-resolution sales mock-up.

Compliance checks for park and children’s merchandise

Compliance depends on selling market, age grading, claims and packaging. If the blanket is marketed for children in the United States, buyers should review CPSIA obligations, tracking labels, total lead and phthalate restrictions where applicable, and third-party testing requirements for children’s products. If the blanket is a general-use family throw with character artwork, still confirm whether the retailer or licensor treats it as children’s merchandise.

Flammability should be specified by market. In the US, wearing apparel flammability under 16 CFR Part 1610 is often referenced for textile surfaces, but blankets can fall under retailer-specific requirements depending on use and lab protocol. For EU and UK markets, requirements may differ by product positioning and retailer policy. Do not write “FR compliant” unless the finish, standard and test result are defined. For US fleece flammability context, see 16 CFR Part 1610 flammability checks for polyester fleece blankets.

Chemical compliance should be planned early. EU buyers may request REACH SVHC review; US buyers may request Prop 65 risk review for prints, trims, PVC packaging or inks; children’s products may require stricter heavy metal and phthalate controls. If the artwork is for kids or toy-adjacent merchandise, EN 71-3 may be requested by some buyers, but it should be tied to the actual product classification and selling market. For buyer-level context, see textile certifications explained for buyers.

Packaging warnings are not decorative. Polybags may need suffocation warnings with minimum print size depending on destination rules and retailer standards. Hangtags must avoid unsupported recycled, antibacterial, UV or safety claims. If recycled polyester is used, confirm chain-of-custody evidence before putting a recycled claim on packaging. Buyers can use rPET polar fleece documentation guidance for claim-control planning.

Licensed merchandise also needs artwork governance: approved files, colour standards, legal line placement, trademark notices, licensor approval route and retained samples. The mill should not receive multiple conflicting artwork versions by email. One controlled approval file should drive screen separation, strike-off and bulk inspection.

Lead time: realistic development calendar

A realistic calendar starts before screen engraving. Artwork review and separation usually takes 2 to 4 working days if files are clean vector art with colour references. If files arrive as layered Photoshop art, low-resolution mock-ups or unapproved licensor drafts, add time for cleanup and approval. The mill should flag fine lines, small text, repeat breaks and colour-count issues before quoting firm bulk timing.

Lab dip or colour target work may take 3 to 7 working days for difficult shades, especially dark red, navy, black or brand-critical colours. Screen engraving and strike-off printing often need 7 to 14 days after artwork separation and colour direction are locked. A second strike-off cycle can add another 7 to 14 days depending on screen changes, production queue and courier time.

Buyer and licensor approval should be given a fixed slot, usually 2 to 5 working days for sourcing approval and longer if a brand owner must review physical samples. Delayed approval is one of the most common causes of missed park launch dates. The supplier cannot safely book bulk printing until colour, repeat, handfeel, edge and packaging are approved in writing.

After approval, bulk knitting or greige allocation, dyeing if needed, printing, drying and curing may take about 15 to 25 days for many commercial orders. Cutting, sewing, inspection and packing can add 7 to 14 days. Lab testing may run in parallel where allowed, but shipment should not be released before required compliance or buyer tests are complete.

Export booking depends on season, Incoterm and destination. FOB Ningbo or Shanghai lets the buyer’s forwarder control consolidation and sailing choice. CIF can work for straightforward replenishment but still leaves import clearance and duties with the buyer. DDP may simplify landed costing for smaller retailers, but duties, tax, delivery restrictions, compliance documents and remote-area charges must be priced clearly. For wider timing risks, see custom blanket lead times and shipping.

RFQ and PO specification template

A useful RFQ should remove guesswork. Include finished size and tolerance, target GSM and tolerance, fabric composition, pile side, brushing and shearing requirements, print system, colour count, artwork files, repeat direction, edge finish, labels, packaging, test standards, AQL level, Incoterm, delivery date and approval owner. If any detail is unknown, mark it as open rather than letting the supplier assume.

Suggested specification block: “Item: 220gsm 100% polyester polar fleece blanket, pigment rotary screen print, finished size 130 x 170 cm ±2 cm, GSM 220 ±5% by ISO 3801 or ASTM D3776, all-over repeat as approved strike-off, print registration ±1.5 mm on critical outlines, finished skew/bow ≤2%, overlock edge 3 to 5 stitches/cm, care label and hangtag as buyer file, individual polybag with suffocation warning if required.”

Add artwork and colour control: “Artwork version V3 dated [date], colour count 5, approved physical strike-off is commercial standard, critical character colours target Delta E ≤1.5 where instrument reading is reliable on pile, non-critical ground colours target Delta E ≤2.0, pile direction arrow to be followed in cutting, no unapproved scale or layout change.”

Add quality and testing: “Final inspection to ISO 2859-1 / ANSI Z1.4 general level II, AQL 2.5 major, 4.0 minor, critical 0. Tests: GSM, finished size, wash shrinkage by ISO 6330 or AATCC 135, wash colourfastness ISO 105-C06 or AATCC 61, crocking ISO 105-X12 or AATCC 8, pilling ISO 12945-2 or ASTM D3512, flammability and chemical compliance as destination market requires.”

Add commercial assumptions: “MOQ by design, colourway and size to be quoted separately; screen charges listed per colour; strike-off charge and courier charge listed separately; Incoterm stated as FOB Shanghai or FOB Ningbo under Incoterms 2020 unless otherwise agreed; carton quantity, carton size, gross weight and CBM to be confirmed after packing trial.”

This template is intentionally strict. It gives the mill enough information to quote honestly and gives the buyer enough detail to compare suppliers on the same basis. The weakest RFQs are the ones that say only “220gsm fleece blanket with custom print” and leave repeat, colour count, testing and inspection to be discovered after price agreement.

Frequently asked

Is rotary screen printing on polyester fleece pigment printing or disperse printing? It can be either, but this guide focuses on pigment rotary printing with binder on brushed polyester polar fleece. Disperse rotary printing uses a different fixation and washing route. Buyers should state the required print chemistry in the RFQ because handfeel, colourfastness, cost and lead time are not identical.

What MOQ is realistic for 220gsm rotary printed fleece blankets? For one all-over design in 3 to 4 colours, many commercial orders start around 800 to 1,500 pieces per size, with better pricing from about 2,000 to 3,000 pieces. Five to six colours often push the practical MOQ higher. Seven to eight colours, border prints or multiple colourways may require larger quantities or setup surcharges.

When is rotary cheaper than digital or sublimation printing? Rotary usually becomes attractive when the same repeat runs in the low thousands and the artwork has a controlled colour count, often 3 to 6 colours. Digital or sublimation is usually better for short runs, many SKU variants, photographic artwork or launch tests around a few hundred pieces per design.

What tolerances should a buyer put on the PO? A practical starting point is GSM ±5%, finished size ±2% or a stated centimetre tolerance, skew/bow ≤2% for all-over prints, print registration ±1.0 to ±1.5 mm on critical outlines, and cutting drift within ±10 mm for forgiving all-over repeats or ±3 to ±5 mm for visible borders where production can support it.

How should a strike-off be approved? Approve a physical strike-off on the intended fleece base, with at least two full repeats and pile direction marked. The approval should record artwork version, repeat size, colour targets, fabric GSM, edge finish, label position, handfeel, wash result and any licensor comments. Do not approve from a screen image alone.

What AQL level is suitable for theme park fleece blankets? A common retail approach is ISO 2859-1 or ANSI/ASQ Z1.4 general inspection level II, AQL 2.5 for major defects, AQL 4.0 for minor defects and critical defects at 0 accepted. Licensed artwork, children’s products or premium retail programs may need tighter artwork checks or AQL 1.5 for major defects.

What are common failure modes in rotary printed fleece? Common failures include fuzzy fine lines, filled reverse text, shade banding, off-register character outlines, dry or wet crocking on dark colours, boardy handfeel from excess binder, pile crushing, skewed border prints, wrong artwork version, label misplacement and carton compression marks.

What compliance checks matter for theme park merchandise? Checks depend on market and age grading. Buyers may need CPSIA for children’s products in the US, REACH SVHC review for EU sales, Prop 65 risk review for some US programs, flammability testing, packaging suffocation warnings, correct fibre and origin labelling, and licensor-approved legal lines on tags and packaging.
