Construction: define the laminate before asking for price

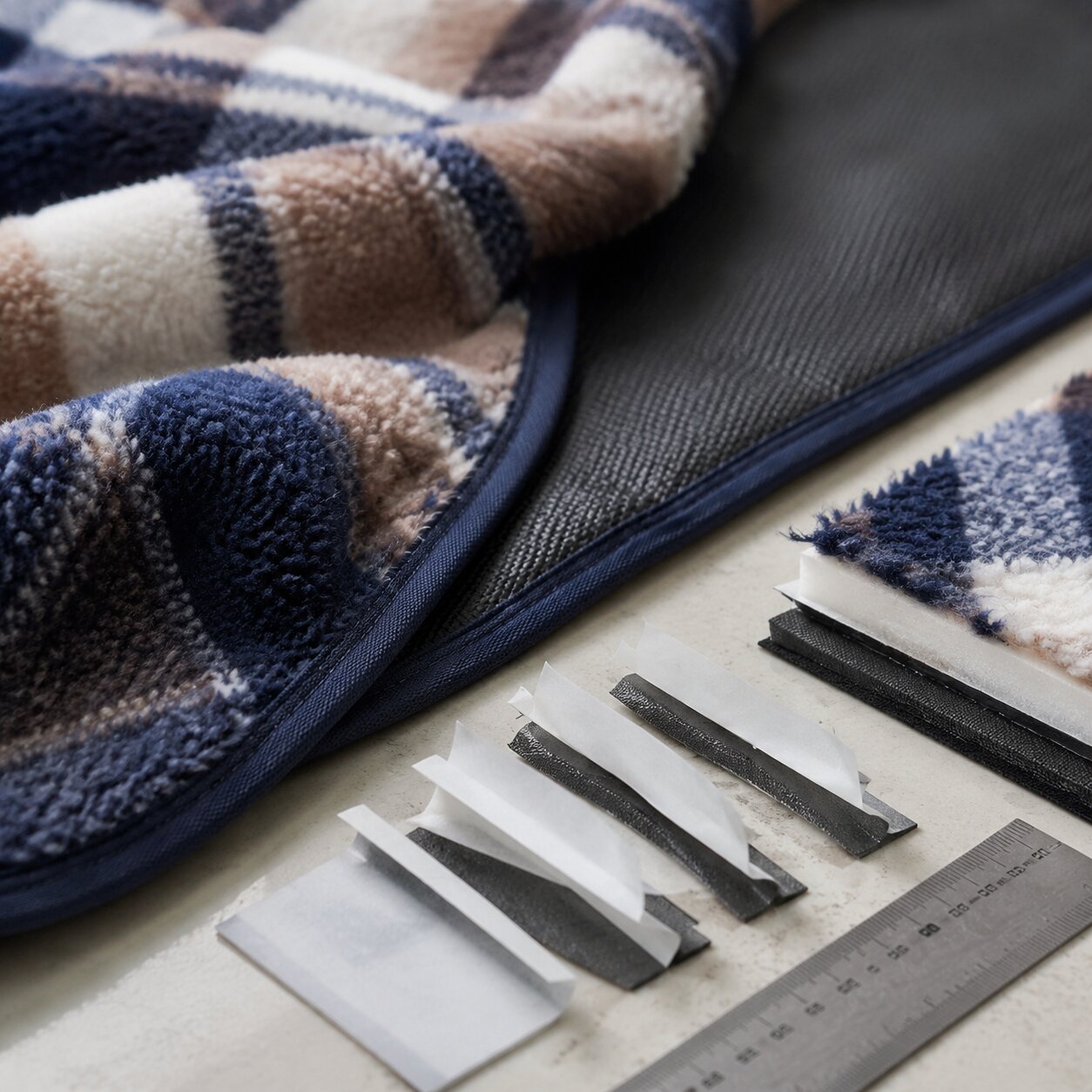

A 350gsm fleece picnic blanket with 600D Oxford backing is not one material; it is a bonded system. The face is usually 100% polyester polar fleece, coral fleece, or flannel fleece at a nominal 350gsm. For RFQ control, write 350gsm as 350gsm nominal, tolerance ±5% unless you need a minimum finished weight. A tighter range such as 340–365gsm is realistic for stable programmes; asking for “minimum 350gsm” usually pushes cost up because the mill must target higher production GSM to avoid underweight rolls.
Specify the fleece pile as well as GSM. For a retail outdoor throw, a practical face spec is 350gsm polyester fleece, 2.5–4.0mm pile height depending on handfeel, brushed and sheared evenly, anti-pilling grade 3–4 after ISO 12945-2 or an agreed Martindale pilling method. High pile feels warmer but traps grass, crumbs, and sand more easily. Shorter pile packs flatter and prints better, but feels less plush on shelf.
600D Oxford normally means a woven polyester fabric using yarns around 600 denier, but the finished backing weight depends on coating pick-up. For picnic blankets, 600D Oxford backing commonly finishes around 190–260gsm. PU-coated Oxford folds softer and has lower odour risk; PVC-coated Oxford is stiffer and may improve hydrostatic head at lower cost, but needs tighter phthalate, odour, and cold-crack control. Buyers comparing backing choices should review waterproof picnic mat backing options before locking the construction.
Copy-ready specification table for RFQs and POs
Use the table below as a starting point, then adjust for retail channel and price point. Values are typical targets we would treat as buyer-controlled specs, not automatic promises from every supplier.
| Item | Recommended RFQ / PO target | Check method or note |
|---|---|---|
| Fleece face GSM | 350gsm nominal, ±5% roll and finished-product tolerance | ISO 3801 or ASTM D3776, conditioned sample |
| Finished blanket size | 150 x 200cm, tolerance ±2cm or ±2%, whichever is smaller | Measure flat after 24h relaxation |
| 600D Oxford backing weight | 190–260gsm finished coated fabric, buyer to approve handfeel | ISO 3801 / ASTM D3776 |
| Coating type | PU preferred for foldability; PVC only with phthalate and odour controls; TPU for premium claims | State chemistry on BOM and care label claim basis |
| Hydrostatic head | PU/PVC Oxford backing: 800–1500mm typical; premium: 2000mm+ if validated | ISO 811 or AATCC 127 on backing before lamination and on finished laminate where practical |
| Fleece-to-backing peel strength | ≥2.0 N/25mm internal factory minimum; 2.5–3.5 N/25mm for stricter outdoor retail | 25mm strip, 180° peel, 100mm/min jaw speed, length and cross direction |
| Binding width | 25–32mm finished polyester woven tape; 30mm preferred for 350gsm fleece | Minimum 6mm bite on both sides of laminate |
| Stitch density | 7–9 SPI, double-needle lockstitch or equivalent secure construction | No skipped stitches over 20mm; no open seam over 5mm |
| Carton gross weight | Target 14–18kg; avoid over 22kg unless buyer accepts handling risk | Drop and compression plan depends on channel |
| AQL levels | Critical 0.0, Major 2.5, Minor 4.0 as a common retail starting point | ANSI/ASQ Z1.4 or ISO 2859-1, General Inspection Level II unless agreed otherwise |
Lamination method and peel strength targets
Lamination may be hot-melt adhesive film, web adhesive, powder adhesive, or flame/thermal bonding depending on the fleece and backing. For 350gsm fleece to coated Oxford, most quality problems come from uneven adhesive add-on, insufficient dwell time, contamination on the coating surface, or too much heat flattening the fleece pile. Ask whether the supplier uses calendar lamination, belt lamination, flame lamination, or discontinuous press bonding; the answer affects peel consistency and batch-to-batch repeatability.
The common target ≥2.0 N/25mm is best treated as an internal factory practice threshold unless your buyer manual names a specific standard. There is no single universal picnic-blanket peel standard covering every fleece/Oxford construction. Make the method explicit: cut 25mm-wide strips, test 180° peel at 100mm/min jaw speed, test both machine direction and cross direction, record the average and lowest individual result, and condition samples at 20 ±2°C and 65 ±4% RH where possible before test.
Define acceptable and unacceptable failure modes. Controlled fleece fibre tear can be acceptable because the adhesive bond is stronger than the fleece pile. Clean adhesive failure between fleece and backing is a warning sign, especially at corners and fold lines. Coating delamination from the Oxford base fabric is more serious because the coating system, not only the adhesive, is failing. If PVC or PU coating separates as a film during peel, do not approve bulk without coating supplier traceability and repeat testing.
For washable claims, test after the intended care cycle. A practical validation is ISO 6330 domestic washing, 30°C or 40°C normal cycle using a standard reference detergent where relevant, line dry or low tumble according to the care label, 3 cycles minimum for promotional goods and 5 cycles for stricter retail programmes. Many laminated picnic blankets should be labelled wipe-clean only; if so, do not let sales copy imply machine washability. General label wording can be aligned with blanket care washing guidance, but the exact laminate must be tested.
Backing performance: water resistance, abrasion and cold fold
Hydrostatic pressure should be measured with ISO 811 or AATCC 127. Test the coated 600D Oxford before lamination to confirm the backing fabric, then test the finished laminate if the buyer wants a finished-product claim. A typical PU- or PVC-coated 600D Oxford backing may sit around 800–1500mm hydrostatic head; some premium TPU or heavier PU systems can exceed 2000mm, but only quote numbers supported by the tested batch. Stitched edges and needle holes mean the finished blanket is not a waterproof bag or groundsheet.
Use conservative claim wording. “Water-resistant backing” or “damp-ground resistant backing” is usually safer than “waterproof blanket” because the fleece face absorbs moisture and the bound edges are sewn. PFC-free C0 water-repellent finishes can improve initial beading but are not a substitute for coating hydrostatic head. If using DWR language, specify spray rating or wetting behaviour and compare expectations with PFC-free water repellent picnic blanket specs.
If PVC cracking is a risk, require cold-fold or cold-crack screening. A practical factory check is conditioning at -10°C to -20°C for several hours, then folding the laminate sharply around a defined mandrel or through repeated fold cycles and inspecting for whitening, cracking, tackiness, or coating split. For abrasion, use a buyer-agreed Martindale or Taber setup on the backing surface; focus on coating wear-through at fold lines, corners, and handle contact points rather than only flat-panel lab appearance.
Backing decision matrix: PU, PVC, PEVA and TPU
The backing choice changes handfeel, claim strength, compliance burden, and landed cost. Use this matrix during sourcing rather than treating all “waterproof backing” options as equal.
| Backing option | Foldability | Odour / compliance risk | Cold resistance | Washability | Cost level | Best claim language |
|---|---|---|---|---|---|---|
| PU-coated Oxford | Good, softer hand | Lower than PVC, still check solvents and finish | Good if coating is not overloaded | Limited; validate laminate | Medium | Water-resistant backing, damp-ground resistant |
| PVC-coated Oxford | Stiffer, bulkier fold | Higher; check phthalates, odour, Prop 65 where relevant | Variable; cold crack possible | Usually wipe-clean only | Low to medium | Water-resistant backing if hydrostatic data supports it |
| PEVA film | Good at light weights, can crease | Lower plasticiser concern than PVC, but film odour still needs control | Can stiffen or split depending gauge | Poor to limited after repeated washing | Low to medium | Moisture barrier backing, wipe-clean backing |
| TPU laminate | Best soft technical hand if specified well | Generally lower odour, higher traceability expectation | Good in suitable grades | Better potential, still test bonded construction | High | Technical water-resistant backing with stated hydrostatic result |
Edge binding, stitching and corner control
A useful PO line is: “Edge binding 30mm finished polyester woven tape, colour matched to Oxford backing, double-needle lockstitch, 8 SPI ±1, minimum 6mm bite each side, no exposed raw laminate, radius corners 50mm.” For thick 350gsm fleece, avoid narrow decorative tape; it can miss the Oxford side, create edge curl, or expose adhesive at the corner.
Thread should match the functional risk, not only the colour. Use polyester sewing thread with adequate tenacity, locked tension, and no loose loops on the Oxford side. For a 150 x 200cm blanket, inspect all four corners because lamination stress concentrates where the blanket is folded, bound, and packed. Add limits: no skipped stitches over 20mm, no open seam longer than 5mm, no broken thread, no raw edge visible from normal viewing distance, no oil marks, and no binding shade mismatch beyond the approved lab dip or trim card.
For folded picnic mats with Velcro flaps or webbing handles, binding and handle sewing must be planned together. Handle bar-tacks can puncture the backing and create stress points if stitched through the wrong layer stack. Buyers using carry flaps should align dimensions and reinforcement with foldable picnic mat stitching and handle specs.
Retail channel differences that affect the spec
Supermarket promotional programmes usually prioritise price, fast packing, shelf-ready cartons, and clear value claims. A 350gsm face may be downgraded in cost pressure unless GSM tolerance is written clearly. Use simple care wording, belly band or insert card, and AQL Major 2.5 / Minor 4.0 unless the retailer requires tighter. Avoid unsupported waterproof language because promo packaging is often reviewed quickly but claims risk remains with the brand.
Outdoor specialty retailers need stronger technical evidence: hydrostatic head report, abrasion or fold testing on the backing, better corner binding, low-odour coating, and a retained PP sample. They may accept higher FOB cost for PU or TPU if the claim is credible. E-commerce channels need stronger presentation protection: thicker polybag, inner carton for gift packaging, barcode scannability after compression, and carton drop resistance because single-item handling is rougher than pallet-to-store distribution.
Private-label gift sets need appearance control: shade consistency between fleece, binding, webbing and print; carton crush prevention; clean folding; and no coating smell when the consumer opens the pack. For gift sets, confirm whether the blanket is packed with cups, straps, cutlery, or other accessories that can imprint the fleece pile during transit. If cross-border e-commerce packing is involved, compare packaging discipline with cross-border blanket pack requirements.
Supplier audit questions before bulk approval
Ask the factory questions that expose whether lamination is controlled or outsourced casually. Useful audit points include: What lamination line type is used? Is adhesive film, powder, web, or liquid adhesive? What is the adhesive chemistry and melt range? Is the coating supplier named on the BOM? Are roll numbers traceable from fleece, Oxford, adhesive, binding, and finished cartons? How often are in-line peel checks done, and where are records kept?
Needle and metal control should be written into the production file. Ask for a broken-needle policy, needle issue log, metal detection procedure for packed goods where applicable, and segregation method for repaired pieces. For picnic blankets with webbing handles or Velcro, check that metal detection sensitivity is realistic for the product thickness and packing format.
Change control matters. Require buyer notification and approval before changing Oxford coating supplier, adhesive type, fleece dye lot outside approved shade band, binding tape supplier, sewing thread, care label artwork, carton size, or folding method. Small substitutions can pass visual inspection but fail peel, odour, cold-fold, or carton-drop requirements.
Defect classification for inspection
Define defects before inspection day. A practical starting point is AQL Critical 0.0, Major 2.5, Minor 4.0 under ANSI/ASQ Z1.4 or ISO 2859-1, General Inspection Level II. Use Special Inspection Levels only for specific checks such as dimensions or carton marking if your buyer manual permits it.
Critical defects: broken needle or metal contamination, mould or pest contamination, unsafe sharp accessory, banned chemical risk where evidence exists, wrong fibre or coating declaration affecting legal compliance, or care label that creates a safety or regulatory issue. Critical defects normally mean shipment hold until root cause and segregation are completed.
Major defects: delamination at corners or panels, coating delamination, hydrostatic result below agreed minimum, open seam over 5mm, exposed raw laminate, wrong size outside tolerance, incorrect care label, missing legal label, strong chemical odour, coating tackiness, shade mismatch beyond approved tolerance, dirty marks visible on the face, barcode unreadable, wrong carton quantity, or carton crush damaging retail presentation.
Minor defects: loose thread under an agreed length, slight pile direction variation, small non-prominent crease, minor carton scuff not affecting saleability, slight binding waviness within appearance limit, or tiny backing mark not visible in normal use. Do not classify recurring minor defects as harmless if they show a process drift, especially binding tension and adhesive bleed.
Compliance and market requirements
For EU and UK sales, check REACH restricted substances, azo dyes, formaldehyde, nickel where accessories are used, and packaging obligations such as recycling marks or Extended Producer Responsibility requirements where applicable. If making recycled-content or PFC-free claims, keep supplier declarations and batch traceability; do not rely only on a hangtag statement. For certification and claim basics, compare textile certifications explained for buyers.
For US sales, review CPSIA if the item is marketed for children, California Prop 65 exposure risk if selling into California, and phthalate limits if PVC coating, plastic labels, or printed accessories are used. Adult picnic blankets are not automatically children’s products, but children’s graphics, baby positioning, or kid-focused marketing can change the compliance path. Ask your importer, lab, or counsel to confirm the correct category before bulk labelling.
Packaging also needs market control: polybag suffocation warning where required, recycling symbols only where allowed, carton marks matching PO, country-of-origin marking, barcode grade suitable for the retail channel, and no unsupported claims such as “eco”, “non-toxic”, or “waterproof” without a defined test basis.
Development sequence and approval samples
A disciplined approval set should include one sealed PP sample, one cut-open laminate sample, fabric and trim cards, peel test records, hydrostatic report if required, wash or wipe-clean validation, care label artwork, carton marks, folding photo, and a defect classification sheet. Keep one approved sample at the factory and one with the buyer; both should be signed and dated.
Run pilot production before large bulk if the construction is new. Inspect first output for fleece pile crush after lamination, adhesive bleed-through, Oxford coating tackiness, edge curl after cooling, binding bite, corner shape, and folded pack thickness. Check measurements after the blanket relaxes; laminated goods can shrink or distort immediately after heat bonding and then settle within 24 hours.
Do not skip re-approval for repeat orders if the Oxford coating supplier, adhesive, fleece dye lot, binding tape, care label, or carton specification changes. The best retail programmes treat lamination and binding as engineered parts of the product, not sewing details left to the final production week.
Worked PO clause buyers can copy
Example clause: “Item: 150 x 200cm picnic blanket, face 100% polyester fleece 350gsm nominal ±5%, pile 2.5–4.0mm, anti-pilling grade 3–4 after ISO 12945-2 or buyer-approved method. Backing: 600D polyester Oxford, PU-coated, finished backing weight 190–240gsm, hydrostatic head minimum 1000mm by ISO 811 or AATCC 127 on backing fabric. Lamination: fleece-to-Oxford bond minimum 2.0 N/25mm internal factory threshold, tested on 25mm strips, 180° peel, 100mm/min, both machine and cross direction; no coating delamination accepted. Binding: 30mm finished polyester woven tape, double-needle lockstitch, 8 SPI ±1, minimum 6mm bite per side, radius corners, no raw edge exposed. Care claim: wipe-clean water-resistant backing; no full-blanket waterproof claim. Packing: 1pc folded with belly band in recyclable polybag where market permits, carton gross weight target 14–18kg, carton marks per buyer artwork. Inspection: ANSI/ASQ Z1.4 or ISO 2859-1, General Level II, AQL Critical 0.0 / Major 2.5 / Minor 4.0. Incoterm: FOB Ningbo or FOB Shanghai as agreed on PO.”
This clause is intentionally specific. If you change PVC for PU, raise or lower hydrostatic head, add machine-wash claims, or move from supermarket promo to outdoor specialty, update the test plan and packaging standard at the same time. For costing and carton planning on Oxford-backed mats, 420D Oxford picnic mat carton planning gives a useful comparison for FOB packing logic.
Frequently asked
What peel strength should we specify for fleece-to-600D Oxford lamination? For many retail picnic blankets, write ≥2.0 N/25mm as an internal factory minimum, then raise the target to 2.5–3.5 N/25mm for stricter outdoor programmes. State the test setup: 25mm strip, 180° peel, 100mm/min jaw speed, both machine and cross direction, conditioned samples, and whether testing is before or after washing, ageing, or cold-fold exposure.
Can we call a 600D Oxford backed picnic blanket waterproof? Usually not for the complete blanket. The coated backing may reach about 800–1500mm hydrostatic head, or higher on premium constructions, but the fleece face absorbs moisture and sewn edges create needle holes. Safer wording is water-resistant backing or damp-ground resistant backing, supported by ISO 811 or AATCC 127 results.
What tolerance should buyers allow for 350gsm fleece? Write 350gsm as nominal with a tolerance, commonly ±5% for a controlled retail programme. If you require a minimum 350gsm finished fleece, state that clearly and expect a higher cost because production must target above 350gsm to avoid underweight goods.
Which backing is better: PU-coated Oxford, PVC-coated Oxford, PEVA or TPU? PU-coated Oxford is a balanced choice for foldability and lower odour risk. PVC-coated Oxford can be economical and stiff but needs phthalate, odour and cold-crack control. PEVA is useful for lightweight wipe-clean backs but can crease and has limited wash durability. TPU is usually the premium option for soft hand and stronger technical claims, but it costs more and still needs bond testing.
What should be classified as a major defect during inspection? Major defects should include delamination, coating split, open seams over the agreed limit, exposed raw edges, wrong size outside tolerance, strong chemical odour, coating tackiness, shade mismatch, dirty face marks, incorrect care label, unreadable barcode, carton quantity error, or carton crush that damages retail presentation.
Have a project in mind? Send us your spec — we'll reply within one business day with indicative pricing and a sample plan.
