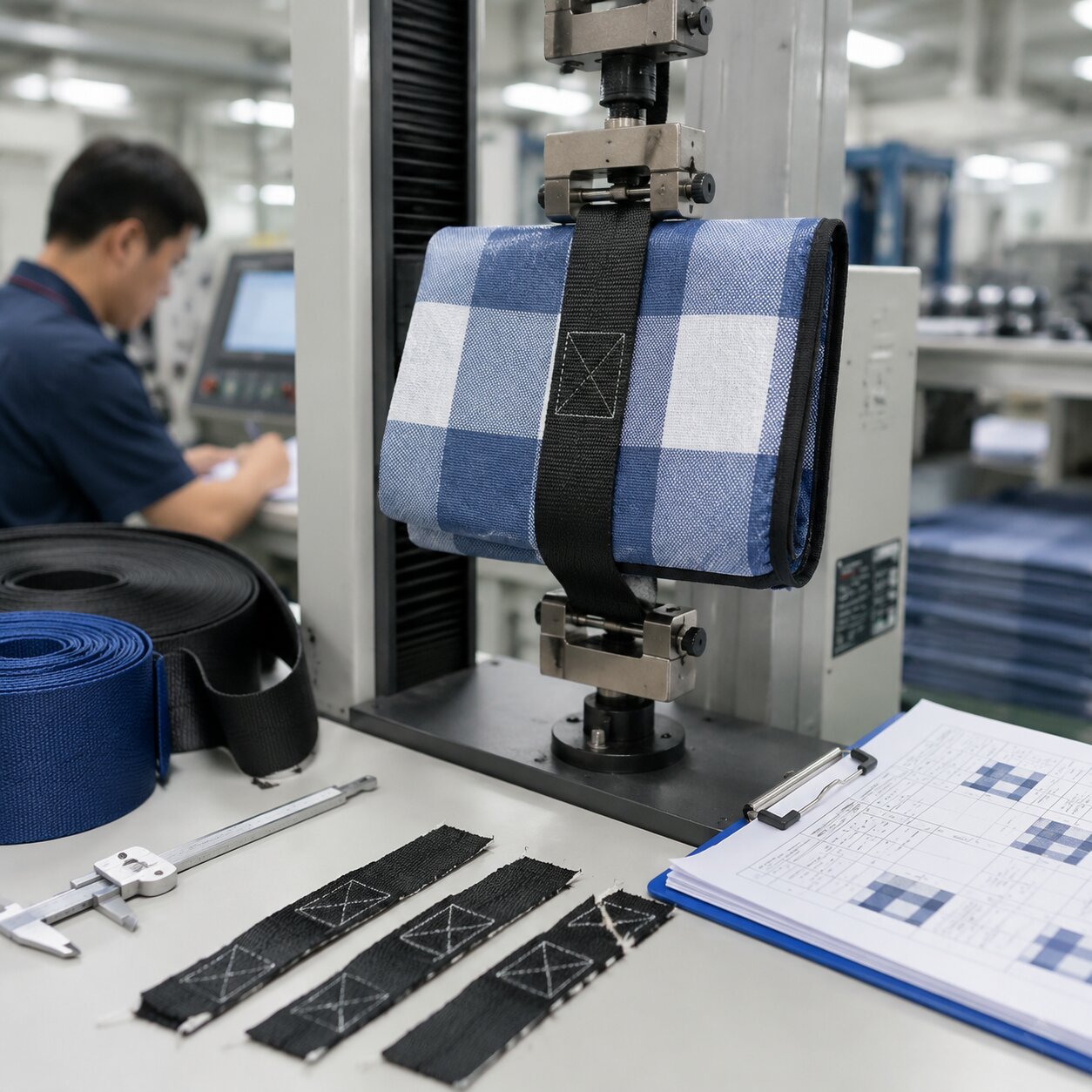

Close-up of 600D Oxford picnic mat carry strap with box-X stitching under tensile test clamps

Start with the load case, not the stitch shape

For 600D Oxford picnic mat carry straps, the first buying decision is the packed product weight and how the consumer will carry it. A 150 × 200 cm mat with 600D polyester Oxford outer, 2–5 mm PE or XPE foam, aluminium film, PEVA or coated backing, and hook-and-loop flap usually sits roughly in the 0.7–1.8 kg range. Larger camping mats or 5 mm XPE constructions can exceed that. The strap does not only see static weight. It sees snap loads when the mat is swung, lifted from a car boot, pulled from a retail shelf, or carried with extra items tucked inside the roll.

Convert product weight into force before choosing the strap. Static weight force is calculated as N = kg × 9.81. A 1.0 kg packed mat applies about 9.8 N under gravity. A jerk or swing can multiply that several times. For commercial specification, we normally apply a safety factor to static weight force: 12–18× for low-price promotional mats, 15–25× for family retail mats, and above 20× where the product is heavy, premium-priced or likely to be overloaded. Example: a 1.4 kg mat gives 1.4 × 9.81 = 13.7 N static force. With a 20× safety factor, the indicative finished handle target is about 274 N.

The 120–300 N range used in many picnic mat programmes is not a standards-based limit. It is an indicative commercial benchmark from factory testing and buyer risk categories. A 0.8 kg giveaway mat may justify a 120–150 N finished attachment minimum. A 1.4 kg family retail mat is better specified at 200–300 N. A 1.8 kg padded camping mat with warranty exposure may need 300 N or more, if the base Oxford, reinforcement and flap geometry can carry the load.

Do not confuse raw webbing strength with finished attachment strength. A 25 mm polyester webbing can test above 700–1000 N in full-width tensile testing, while the assembled strap may fail at 160 N because the needle line tears the Oxford, the box-X sits too close to the panel edge, the flap opens under load, or the coating peels away from the fabric. The PO should carry two separate requirements: raw webbing maximum force and finished handle attachment strength.

Use ISO 13934-1 carefully: fabric test, not a complete handle test

ISO 13934-1 is the strip method for determining maximum force and elongation at maximum force of textile fabrics using a constant-rate-of-extension tensile tester. For woven fabric testing, a common ISO 13934-1 setup is a 50 mm test strip, 200 mm gauge length and 100 mm/min extension rate after conditioning in the standard textile atmosphere of 20 ± 2 °C and 65 ± 4% relative humidity according to ISO 139. If the laboratory uses different jaw faces, specimen width, gauge length or speed, the report should state the deviation clearly.

For 600D Oxford shell fabric, specify ISO 13934-1 in both warp and weft directions and require maximum force plus elongation at maximum force. For narrow webbing, be precise. ISO 13934-1 is written for textile fabrics and may not be the correct formal standard for every narrow webbing construction. If you use it for webbing, label it as an agreed full-width tensile method based on ISO 13934-1 principles, not as strict ISO coverage unless the lab confirms suitability.

Do not let a lab cut a 25 mm strap to suit a 50 mm fabric format. State that webbing is tested full width, with gauge length, speed, jaw type and pretension reported. Capstan, bollard or rubber-faced jaws are often needed to avoid jaw break or slippage. Serrated jaws can damage polypropylene webbing and create false low results. If a specimen breaks at the jaw or slips materially, the lab should discard the result or report it as invalid according to the agreed method.

ISO 13934-1 does not define the strength of a sewn carry handle on a finished picnic mat. That is an assembly problem. Seam-strength standards such as ISO 13935-2 can inform how textile seams are pulled, but many mat handles are loops, closure flaps and multi-layer laminates rather than simple seams. For this reason, the finished handle test should be labelled as buyer-defined handle attachment pull strength. Write the fixture, loading direction, rate, hold time, sample count and failure rules into the specification.

A clear specification line is: ‘600D polyester Oxford fabric: ISO 13934-1, warp and weft maximum force and elongation reported, standard atmosphere conditioning, deviations stated. Webbing: full-width tensile test using agreed method based on ISO 13934-1 principles, maximum force reported. Finished carry handle: buyer-defined assembly pull test, real carry direction, minimum force and failure mode reported.’

If waterproof or water-resistant performance is part of the product claim, do not substitute tensile testing for backing checks. PU-coated Oxford or laminated picnic mats may need ISO 811 hydrostatic resistance testing. Values such as 500–1500 mm are buyer benchmarks often used for picnic mats, not universal ISO 811 requirements. For backing trade-offs, see waterproof picnic mat backing options.

Condition samples before tensile and pull testing

Testing straight from a humid workshop or cold warehouse gives noisy results. For raw fabric and webbing tested to ISO 13934-1 or an agreed full-width tensile method, condition specimens in the standard textile atmosphere of 20 ± 2 °C and 65 ± 4% RH until moisture equilibrium, or for a documented minimum period agreed with the lab. If the lab cannot condition to ISO 139, the report should state the actual temperature, humidity and conditioning time.

Coated Oxford and laminated mat panels need extra care. PU, PVC-free TPE, PEVA, aluminium film and PE/XPE foam change stiffness with temperature. A cold panel may crack or concentrate load at the needle line; a warm panel may stretch or peel more easily. For finished handle pull tests, condition complete folded or flat samples for at least 4 hours at the test room condition before testing. For export orders shipping in winter, add a low-temperature handling check if the backing is PVC, TPE or a stiff coated Oxford.

Wet/dry cycling is relevant when the strap is sewn through a coated or laminated shell. Needle holes can become water-entry points and weaken the area after repeated use. For retail and outdoor programmes, test a small set after wetting the handle area, drying at room temperature and repeating for 3–5 cycles. The purpose is practical: catch constructions that pass dry initial pull but fail after the coating edge lifts.

Specify the 600D Oxford, because strap failure often starts in the base fabric

A strong strap on weak Oxford is a false economy. 600D is a yarn description, not a full fabric specification. A buyer sheet should state fibre, yarn, weave, finished GSM, coating type and coating weight where relevant. For polyester 600D Oxford used on picnic mats, plausible finished weights often fall around 230–320 gsm depending on coating, but the approved range must match the submitted sample. A practical tolerance is approved GSM ±5% for production lots, unless the construction is cost-sensitive and a tighter range has been agreed.

For yarn verification, ask the mill or test lab to confirm approximate denier on greige or extracted yarn where feasible. A tolerance such as nominal 600D with no unexplained downgrade to 500D-class yarn is more useful than relying on a sales description. If denier extraction is not practical on coated goods, control by finished GSM, tensile force, tear strength and visual weave density.

Minimum raw material controls for 600D Oxford picnic mat shells should include: ISO 13934-1 maximum force in warp and weft; tear strength by a recognised method such as ISO 13937-2 or ASTM D2261 if your lab uses US methods; coating adhesion or peel strength for laminated layers; colour fastness to rubbing ISO 105-X12; colour fastness to water ISO 105-E01 where pale linings or aluminium films are in contact; and hydrostatic resistance ISO 811 where a water-resistance claim is made.

For coated or laminated Oxford, add a peel check before bulk approval. A practical laboratory line is: ‘Coating or lamination peel strength tested by agreed 180° peel method, 50 mm strip where construction permits, 100 mm/min pull rate, average and lowest value reported.’ Indicative commercial thresholds are often 2.0–3.0 N/cm for light film laminations and higher for stronger textile-to-textile bonds, but the correct value depends on coating chemistry and layer structure. More important than chasing a single number: no clean film lift around the stitch box after handle pull testing, no flaking after folding, and no delamination spreading more than 10 mm from the needle line.

If early pull tests show fabric tearing through the needle holes, increasing webbing strength will not help. Increase stitch box area, add a reinforcement patch, reduce stitch density, change needle size, widen seam allowance, or specify a stronger Oxford base.

Polypropylene vs polyester webbing: approval criteria, not preference

Most 600D Oxford picnic mats use 20–30 mm flat webbing. Polypropylene webbing is lower cost, lighter and available in many commodity colours. It can feel waxy, abrade faster at folded edges and lose strength faster under UV exposure. Polyester webbing costs more but gives better dimensional stability, UV resistance, heat resistance and handfeel. Nylon webbing is strong but usually unnecessary for picnic mats and can absorb more moisture, affecting dimensions and shade matching.

For entry promotional mats below about 1.0 kg, 20 mm polypropylene webbing may be acceptable if the finished handle pull target is only 120–150 N and the retail promise is modest. For family retail mats around 1.0–1.6 kg, 25 mm polyester webbing at about 1.1–1.5 mm thickness is a better balance. For large 600D Oxford mats, 30 mm polyester improves comfort and load distribution but increases material cost, sewing time and folded bulk.

Use approval criteria instead of a generic ‘strong webbing’ statement. Polypropylene webbing can be approved when: the finished mat is light; the colour is dark or migration risk has been checked; the handle target is modest; the webbing does not crack, curl or whiten after folding; and full-width tensile strength gives a comfortable margin above the finished assembly target. Polyester webbing should be used when: the mat is heavy; the programme is retail or outdoor; the strap is visible as a quality feature; the product may see sun exposure; or the handle also acts as a closure band under tension.

Buyer-ready webbing line for retail mats: ‘25 mm black polyester webbing, thickness 1.2 ± 0.2 mm, width tolerance ±1 mm, full-width tensile maximum force minimum 700 N by agreed tensile method, colour fastness to rubbing ISO 105-X12 dry grade 4 minimum and wet grade 3–4 minimum, no sharp heat-cut edge in contact with shell fabric, no yarn skips over 10 mm.’

Buyer-ready webbing line for value promotional mats: ‘20 mm polypropylene webbing, thickness 0.9 ± 0.2 mm, width tolerance ±1 mm, full-width tensile maximum force minimum 400 N by agreed tensile method, finished handle assembly minimum 120 N, heat-cut ends buried or turned under, no brittle edge, no visible whitening after three manual fold cycles.’

For pale mats, add migration screening. Store the strap against the light panel under light pressure at 40 ± 2 °C for 24 hours, then grade staining visually or by grey scale if the buyer requires it. The webbing edge matters. A stiff heat-cut end buried under a small stitch box can saw into the 600D Oxford. A loosely woven edge can curl and transfer load to one stitch row. During sample review, carry the packed mat, twist the loop, pull the closure flap and inspect whether the webbing sits flat. For fold layout and handle positioning, see foldable picnic mats with Velcro flap and webbing handle.

Box-X stitching: dimensions, thread and seam allowances

A box-X spreads load over more thread length and gives buyers a visible reinforcement mark. It is not automatically strong. The stitch box must be large enough, far enough from the panel edge, and sewn with thread and needle sizes that suit 600D Oxford plus coating, foam or lamination layers.

For 25 mm webbing, a practical stitch box is about 25–35 mm long by 22–24 mm wide, with the outer stitch line set 3–5 mm inside the webbing edge. For 30 mm webbing, a 35–45 mm long box gives better load distribution if the panel area allows it. Avoid short 12–15 mm boxes on retail mats; they concentrate load at the first bar tack and often fail by fabric tear or stitch pullout.

Recommended construction for 600D Oxford picnic mats: lockstitch type 301 for standard box-X; bonded polyester thread Tex 45 for lighter laminated panels, Tex 60 for most retail mats, Tex 70 only where needle damage is controlled; stitch density 7–9 SPI for coated Oxford, or 6–8 SPI where the coating is brittle and needle perforation risk is high; needle size typically Nm 100–120 depending on thread and layer thickness. Do not raise SPI to make the seam look premium if the needle line starts acting like a tear perforation.

Minimum edge distances should be written. Keep the stitch box at least 12 mm from any cut shell edge and preferably 15–20 mm from a flap fold line where bending is severe. Use a seam allowance of at least 10–12 mm where webbing is inserted into a folded flap seam. If the strap is sewn to a single shell panel, add a reinforcement patch behind the shell: commonly 50 × 70 mm to 70 × 90 mm Oxford, nonwoven or same-material patch, with edges caught by the box-X or perimeter stitch.

Bartacks can be used instead of, or in addition to, box-X stitching, but they are not always kinder to coated Oxford. A dense 28–42 stitch bartack can cut a perforation line in weak fabric. If using bartacks, use two 20–25 mm bartacks across the webbing with enough spacing between them, and verify by finished pull testing. For foam-backed picnic mats, ensure the presser foot does not crush the foam so badly that the panel puckers and the flap closure becomes misaligned.

Common avoidable failures are: stitch box too close to the panel edge; thread too heavy for the needle and fabric; SPI too dense; reinforcement patch too small; heat-cut webbing end placed under the highest-load row; and sewing through a laminated layer with poor peel adhesion. If the sample fails below target, record where it failed before changing the pattern. Randomly adding more stitches often makes the fabric weaker.

Finished handle pull test: write the method before approving bulk

The finished handle pull test must reproduce the actual load path. A rolled mat with a wrap-around strap behaves differently from a flat panel with a sewn loop. A closure flap with hook-and-loop may fail by flap opening before the webbing or stitch box breaks. That is still a product failure if the consumer cannot carry the mat.

Use this baseline method for sewn loop handles on flat panels: condition finished samples for at least 4 hours; clamp or support the mat panel so the handle attachment area is free and not crushed by the fixture; pull the handle in the normal carry direction at 100 ± 20 mm/min; use a rounded pulling mandrel or hook of 20–30 mm diameter to avoid cutting the webbing; test five samples from approval stage and at least three samples during each bulk inspection lot where destructive testing is allowed; record maximum force and failure mode. Pass if every tested sample reaches the specified minimum force without automatic-fail damage.

For rolled mats where the strap wraps around the roll, test the mat in its normal packed condition at the maximum realistic roll diameter allowed by the specification. If the handle load is carried through the closure flap, close the hook-and-loop to the approved overlap, then pull by the handle in the real carry direction. If the strap is sewn to the shell but also compresses the roll, support the roll so it cannot unwind artificially. A test on a flat unrolled panel may be useful for stitch diagnosis, but it is not a substitute for the packed-roll handle test.

For integrated flap handles, define the fixture geometry. The roll should rest in a cradle or soft support that does not clamp the flap shut. The pulling hook should engage the handle at the centreline. Pull direction should be vertical lift or 30° outward angle, depending on how the consumer carries the product; choose one and keep it consistent. If the flap opens before the force target, record ‘flap opening’ as the failure mode. Do not ignore it because the stitches survived.

Suggested finished-handle targets: promotional mat under 1.0 kg, 120 N minimum; standard retail mat 1.0–1.6 kg, 180–250 N minimum; heavy padded mat above 1.6 kg, 250–350 N minimum subject to material feasibility. For a premium warranty product, add a static hold after reaching the target: hold at target force for 10 seconds with no progressive seam slippage, coating delamination or flap opening. These are commercial benchmarks, not legal standards. Buyers should set the value against product weight, sales channel, safety factor and acceptable destructive-test cost.

Automatic fail rules should be explicit. Fail the sample if any of the following occurs before or during the target hold: webbing rupture; thread break causing loss of load; stitch pullout; shell fabric tear over 5 mm from the needle line; coating or lamination delamination spreading more than 10 mm from the stitch area; seam slippage that changes handle position by more than 5 mm; hook-and-loop flap opening below target; reinforcement patch separation; or fixture/jaw damage that invalidates the result. If the fixture fails, retest with corrected tooling and mark the first result invalid, not pass.

Failure-mode reporting table for factory and third-party QC

A pull value without the failure mode is incomplete. A 220 N result with clean webbing rupture is different from 220 N with Oxford tearing through the needle line. The first points to webbing specification; the second points to panel strength, seam density or reinforcement design.

Use a simple failure-mode table in sample approval and bulk inspection reports:

AQL and lot sampling for bulk production

Handle strength should be controlled at three levels: incoming materials, inline sewing set-up, and final packed-goods inspection. AQL visual inspection alone will not catch a weak stitch construction. Destructive testing alone will not catch crooked handles, short hook-and-loop overlap or wrong webbing width. Use both.

For final inspection, many buyers use ANSI/ASQ Z1.4 or ISO 2859-1 single sampling, general inspection level II, with AQL 2.5 for major defects and AQL 4.0 for minor defects. Critical defects are usually AQL 0. For small promotional orders, some buyers agree to general level I to reduce inspection cost, but handle attachment on a carry product should still receive special attention.

Classify defects before production. Critical: sharp metal contamination, mould, unsafe broken needle risk, chemical odour outside buyer limit. Major: handle pull below specified minimum, missing reinforcement patch, wrong webbing material or width outside tolerance, flap opening below target, seam tearing, coating delamination at handle, handle placed so product cannot be carried, wrong packed size preventing closure. Minor: slight thread tail over buyer limit, minor stitch waviness not affecting strength, small shade variation within approved tolerance, acceptable cosmetic pucker.

Suggested sampling plan: incoming webbing, test one roll per colour per lot for width, thickness, shade and visual defects; tensile test at least one roll per material lot or require supplier COA plus periodic lab verification. Inline sewing, inspect first 10 pieces after machine set-up and then at least 5 pieces per sewing line per hour for box-X size, SPI, edge distance and reinforcement presence. Finished goods, use the agreed AQL sample size for visual inspection; perform destructive handle pull on 3–5 pieces per inspection lot, or more for high-risk new constructions.

If destructive testing is not allowed on saleable stock, require factory-retained duplicate panels sewn with the same material, operator, machine settings and time window. Duplicate panels are useful for diagnosis, but they are weaker evidence than complete packed-product testing. For first production of a new handle geometry, test finished packed mats, not only coupons.

A lot should fail or be put on hold if any destructive sample is below the minimum force, unless the buyer has written retest rules. A practical retest rule is: if one sample fails due to verified fixture error, retest two additional samples and document the invalid result. If one genuine product failure occurs, double the destructive sample size. If any retest sample fails, hold the lot for 100% handle review and corrective action, then re-sample after repair. Do not average a failed handle into a passing mean. The consumer receives one mat, not an average. For broader inspection structure, see blanket quality control inspection and AQL 2.5 inspection checklist.

Buyer-ready specification template

Use the following template in the tech pack or PO. Adjust the force values to product weight and channel risk before bulk approval.

Product: foldable picnic mat, finished size 150 × 200 cm, packed roll diameter and length as approved sample. Shell: 600D polyester Oxford, finished GSM approved sample ±5%, coating type stated, colour to approved lab dip or bulk standard. Backing: PEVA, aluminium film, PU-coated Oxford or other approved construction; hydrostatic resistance only if claimed, ISO 811 target stated as buyer benchmark.

Webbing: 25 mm polyester webbing unless otherwise approved; width 25 ± 1 mm; thickness 1.2 ± 0.2 mm; full-width tensile maximum force minimum 700 N by agreed method based on ISO 13934-1 principles; rubbing fastness ISO 105-X12 dry grade 4 minimum, wet grade 3–4 minimum; no sharp or brittle heat-cut end contacting shell.

Stitching: lockstitch type 301 box-X; bonded polyester thread Tex 60 unless approved; 7–9 SPI; box-X length 30 ± 5 mm for 25 mm webbing; outer stitch row 3–5 mm inside webbing edge; stitch box at least 12 mm from cut panel edge; reinforcement patch minimum 50 × 70 mm where strap is sewn to single shell panel; seam allowance minimum 10 mm for inserted webbing ends; thread ends trimmed below buyer limit.

Finished handle pull: test complete packed mat in real carry configuration; pull direction vertical lift unless drawing states otherwise; 20–30 mm rounded pulling mandrel; pull rate 100 ± 20 mm/min; minimum force 220 N for this example; hold 10 seconds at target; five approval samples and 3–5 bulk destructive samples per inspection lot; any webbing rupture, thread break, stitch pullout, fabric tear, coating delamination over 10 mm, seam slippage over 5 mm, flap opening or invalid fixture damage before target is recorded and judged by the agreed fail rules.

Inspection: final inspection to ISO 2859-1 or ANSI/ASQ Z1.4, general level II, AQL 2.5 major, AQL 4.0 minor, critical 0 unless buyer specifies otherwise. Destructive handle failures are major or critical depending on retailer policy. Factory to retain failed samples with order number, lot, operator line, machine, material roll and failure photo.

For buyers comparing 600D Oxford constructions against other picnic mat builds, useful references are 600D rPET Oxford picnic mats with 5 mm XPE foam core, 420D Oxford 2 mm EPE foam picnic mats and camping ground mat construction.

Frequently asked

Is ISO 13934-1 the correct standard for a finished picnic mat handle? No. ISO 13934-1 is a textile fabric tensile test for maximum force and elongation. It can be used for 600D Oxford fabric, and its principles can be adapted for full-width webbing if the lab and buyer agree the method. A finished carry handle needs a separate buyer-defined assembly pull test with real carry direction, fixture, pull rate, minimum force and failure rules.

What pull strength should I specify for a 600D Oxford picnic mat carry strap? For many commercial picnic mats, indicative finished-handle targets are 120–150 N for light promotional mats under about 1.0 kg, 180–250 N for standard retail mats around 1.0–1.6 kg, and 250–350 N for heavier padded mats. These are commercial benchmarks, not standards-based limits. Calculate static force as kg × 9.81, then apply a safety factor suitable for the channel and misuse risk.

Should we use polypropylene or polyester webbing? Polypropylene can be acceptable for light, low-cost promotional mats if the finished handle passes the agreed pull test and the edge does not become brittle or sharp. Polyester is better for heavier retail mats, visible handles, outdoor exposure and products with warranty risk. Specify width, thickness, tensile force, colour fastness and heat-cut edge condition rather than only naming the fibre.

How should a rolled picnic mat handle be tested? Test it in the packed condition that consumers use. Close the flap to the approved hook-and-loop overlap, support the roll without clamping the flap shut, engage the handle with a rounded 20–30 mm mandrel, and pull in the real carry direction at about 100 ± 20 mm/min. A flat-panel test may help diagnose stitching, but it does not replace a packed-roll assembly test.

What are automatic failures in a handle pull test? Before or during the target force hold, automatic failures should include webbing rupture, thread break, stitch pullout, shell fabric tear, coating or lamination delamination spreading beyond the agreed limit, seam slippage beyond the agreed limit, flap opening, reinforcement patch separation, or fixture damage that invalidates the result. The specification should define the exact limits, such as delamination over 10 mm or seam movement over 5 mm.

What AQL should be used for bulk picnic mat carry straps? Many buyers use ISO 2859-1 or ANSI/ASQ Z1.4, general inspection level II, AQL 2.5 for major defects and AQL 4.0 for minor defects, with critical defects at 0. Handle pull testing is destructive, so add a separate 3–5 piece destructive sample per inspection lot or an agreed special sampling plan. Do not pass a lot by averaging a failed handle with stronger handles.
