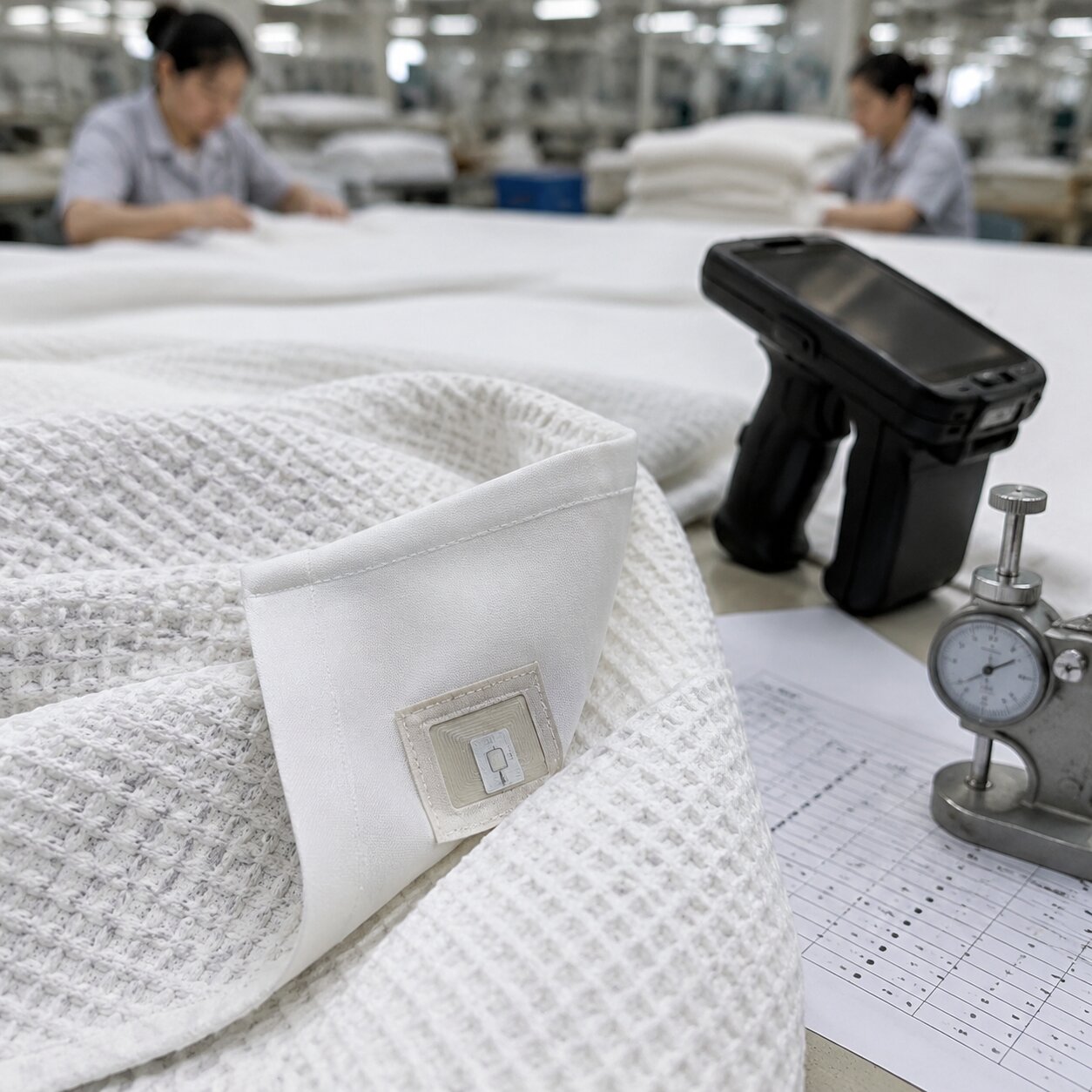

Close view of a white polyester waffle blanket corner with a sewn RFID laundry tag during factory inspection

Specify RFID as part of the blanket construction

For hotel rental programs, RFID hotel blanket laundry tags should be specified before sampling, not added after blanket production. On a 320gsm polyester waffle blanket, the raised cells, hem thickness and elastic recovery all influence tag comfort and durability. A stiff tag sewn into the wrong corner can create a hard spot, distort the waffle texture, crack under extraction pressure or become the first seam failure after tunnel washing.

A typical 320gsm polyester waffle blanket for hotel use is commonly made from textured polyester yarn, with finished GSM tolerance around ±5% when the mill controls knitting or weaving, finishing and relaxation properly. Common finished sizes include 150 x 200 cm, 180 x 230 cm and 200 x 240 cm. Edge constructions are usually double-turn hem, bound edge or overlock plus coverstitch depending on price point and handfeel. The RFID pocket must be compatible with that edge construction, not treated as a loose accessory.

The tag must survive the same laundry profile as the blanket: wash temperatures commonly around 60–75°C, possible thermal disinfection programs, alkaline detergent, peroxide chemistry where used, extraction pressure, tumble drying, tunnel finishing and repeated folding. The sourcing question is not whether the chip reads on a clean table. It is whether the blanket remains readable in dry and damp stacks after 25, 50 and 100 wash cycles without tag fraying, stitch breakage, chip damage or guest complaints about handfeel.

For the base blanket, align RFID development with normal hotel laundry testing: dimensional change, pilling, colour change, edge stability and lint. Useful supporting references include industrial laundry specs for 330gsm polyester waffle blankets, blanket care washing guide and blanket quality control inspection. The RFID tag improves asset control; it does not compensate for weak fabric, unstable hems or poor finishing.

Protocol and tag requirements to put on the PO

Most hotel and rental laundries use passive UHF textile RFID, normally compliant with EPCglobal Class 1 Gen 2 / UHF EPC Gen2 and ISO/IEC 18000-63. The PO should state the operating region because reader frequency bands differ: roughly 865–868 MHz for many EU systems, 902–928 MHz for the US, and other national allocations depending on destination. A tag tuned for one region may still read elsewhere, but reduced margin shows up in damp stacks and portal reads.

Specify EPC memory and encoding format. A common requirement is 96-bit EPC memory encoded as GS1 SGTIN-96 where the buyer has a GS1 company prefix, or a fixed-length internal asset ID where the laundry software uses its own structure. If user memory is required, state the minimum bytes and data map; do not assume all textile tags have usable user memory. Also state whether the supplier encodes at the factory, whether the laundry encodes on receipt, and who verifies duplicates before shipment.

A practical PO line is: passive UHF sew-in textile laundry tag, EPCglobal C1G2 / ISO 18000-63 compliant, regional tuning confirmed for destination reader band, EPC memory minimum 96 bits, unique EPC per blanket, encoding format agreed before PP sample, no duplicate EPCs within order or buyer account, kill password not used unless buyer requests, access password and lock policy agreed in writing. Many hotel programs leave EPC unlocked during pilot testing and lock after software validation; permanent locking too early makes correction difficult if the encoding map changes.

Define serialization responsibility. If the blanket mill encodes tags, the buyer should provide the EPC allocation file or numbering rule, and the mill should return an as-built CSV with carton number, blanket SKU, EPC, visible barcode if used, and production lot. If the laundry encodes tags, the mill should sew blank tags and protect them from mixed-lot substitution. In either workflow, duplicate EPC prevention needs a scan gate before packing and a reconciliation report, not a manual spreadsheet typed after shipment.

Ask for the approved tag model and component source by description, not just a generic phrase such as “RFID label”. The supplier file should include tag format, chip family or equivalent, antenna design, dimensions, sewing margin, datasheet temperature ratings and laundry-chemical compatibility statement. If the tag model is changed after approval, require buyer sign-off because read distance, stiffness and failure mode can change even when the outside size looks similar.

Tag format, encapsulation and heat claims

For 320gsm waffle blankets, the usual starting point is a flexible textile or soft encapsulated UHF tag around 55–75 mm long and 10–15 mm wide. Smaller tags feel better but usually have shorter read distance and more orientation sensitivity. Larger tags improve RF margin but can feel stiff in a medium-weight blanket and may print through the hem after pressing. PPS hard laundry tags are durable but often too rigid for guest-facing blankets unless hidden in a carefully designed label stack or corner pocket.

Thermal claims must be copied from the tag datasheet with the same conditions. Separate continuous operating temperature, wash temperature, tumble dryer air temperature, short peak exposure, press or tunnel contact temperature, contact pressure and dwell time. A tag advertised as surviving 200°C may mean a short dry exposure without pressure, not 200°C wet heat for repeated cycles. For many hotel blanket programs, a realistic validation profile is washing at 60–75°C, drying air up to about 120–140°C, and short tunnel or press exposure only if the laundry uses that process.

Chemical compatibility should also be documented. Industrial laundries may use alkaline detergent, oxygen bleach, sour neutraliser, softener and disinfectant additives. The tag maker should confirm compatibility in general terms, but the blanket pilot should use the actual laundry formula where possible. Strong oxidising chemistry can embrittle some textile tag coverings, fade printed human-readable codes and weaken pocket fabric before the chip itself fails.

Common tag failures are antenna fatigue from flexing, chip fracture from extraction pressure, textile edge fraying, delamination of encapsulation, stitch perforation through the antenna zone, and poor reads when damp folded goods detune the antenna. Avoid dense bartacks through the active antenna section unless the tag maker marks a safe sewing area. The operator needs a visible sewing margin and a placement jig; otherwise needle lines drift during bulk production.

For companion labels, woven information generally survives industrial washing better than low-grade heat-transfer print. If a barcode or data matrix is printed beside the RFID tag, specify wash-resistant ink or woven/printed label stock validated through the same cycle test. Related label durability trade-offs are covered in heat-transfer and woven labels on 230gsm microfleece blankets.

Best tag position on a 320gsm waffle blanket

The preferred position for most rectangular hotel waffle blankets is near one short-side corner, set inside the hem or behind a care-label carrier, typically 80–120 mm from the side edge and 60–100 mm from the bottom edge. This keeps the tag away from the exact corner point, gives sewing operators a repeatable reference and reduces the chance that guests feel a hard insert in the sleeping area.

Do not sew the tag into the corner tip. Corners take the highest abrasion during washing, drying, folding and staff handling. They also become thick pressure points in double-turn hems, increasing skipped stitches, puckering and chip cracking. On waffle fabric, a stiff insert at the corner can distort raised cells and make the label look like a repair patch rather than a planned construction detail.

A good construction is a polyester twill pocket or woven care-label carrier stitched into the hem allowance. For a 55 x 12 mm flexible tag, a finished pocket around 70 x 22 mm is a reasonable starting point, then adjusted after shrinkage and handfeel review. The pocket should prevent tag migration but not bend the tag sharply. Leave clearance around the chip and antenna according to the tag maker’s sewing diagram.

Keep tag orientation consistent across the full lot. If the tag long axis is parallel to the short edge in the approved PP sample, keep it that way in bulk. Random rotation reduces portal read consistency and makes troubleshooting difficult. Avoid metallic yarn, foil labels, conductive trims and thick wet folds over the tag. Polyester waffle has no metal by default, but damp textile stacks still reduce UHF performance.

The pre-production file should include a placement diagram with two edge measurements, tag orientation, pocket size, stitch type, SPI, thread type, visible label position and tolerance. For example: RFID pocket centre 100 ±10 mm from right edge and 80 ±10 mm from bottom edge; tag long axis parallel to bottom hem; lockstitch 301 at 8–10 SPI; polyester core-spun thread; no needle penetration through marked antenna zone. Similar placement discipline is used for other blanket decoration work, such as embroidery placement on 300gsm sherpa blankets.

Fabric, seam and pocket testing

Separate base fabric strength from tag-pocket durability. ASTM D5034 is a grab strength method for textile fabric; it can help compare the base waffle fabric before and after laundering, but it is not a seam slippage method and should not be presented as proof that the RFID pocket seam will survive. If used, state it clearly as fabric grab strength only.

For the RFID pocket, use a seam-specific evaluation. Depending on lab capability and construction, buyers can request seam strength by ASTM D1683 or ISO 13935-2 for sewn seams, plus visual inspection after wash cycling for stitch breakage, seam opening, puckering, fraying and tag migration. For some knitted waffle constructions, a custom pull test on the pocket may be more meaningful than a standard woven seam slippage method; define the specimen and pass/fail criteria before sampling.

Base textile checks should include dimensional change using ISO 6330 washing procedures with ISO 5077 measurement principles, or a buyer-approved industrial laundry cycle if ISO domestic cycles do not represent the service condition. Colour fastness to washing can be checked under ISO 105-C06 or equivalent. Pilling and surface change can be evaluated using ISO 12945 methods, but waffle texture needs visual grading because raised cells flatten differently from fleece.

A reasonable seam acceptance target for the pocket is no open seam, no loose tag, no more than minor edge fuzzing, and no stitch breakage longer than 5 mm after the agreed cycle count. If a lab performs seam strength, agree the minimum force with the buyer and construction because a lightweight label pocket will not behave like a garment side seam. The more important field result is that the tag stays flat, readable and comfortable after laundering.

Needle and thread matter. A common starting point is lockstitch 301 or a neat label-stitch operation at 8–10 SPI using polyester thread. Too many stitches perforate the tag carrier and stiffen the pocket; too few allow migration. Needle size should penetrate the hem cleanly without cutting yarns or leaving visible holes. Inspect the first 20 pieces of each line start for skipped stitches, distorted waffle cells and pocket alignment before allowing continuous production.

Read-rate acceptance: test the way the laundry scans

Open-air read distance is not enough. A loose UHF laundry tag may read several metres under ideal conditions, while the same tag can fail in a damp folded stack or mixed linen cart. For a single dry 320gsm polyester waffle blanket, a medium flexible tag may read at roughly 1.5–4 m with a suitable handheld or fixed reader. That range is only a screening number. The acceptance test must match the laundry’s hardware, cart density, folding method and moisture condition.

Define the reader setup in the test report: handheld or fixed portal reader, antenna type, reader power setting, antenna distance, conveyor speed if applicable, software version and environment. A practical handheld test may use a UHF EPC Gen2 reader at the buyer’s normal power setting, scanning from 0.5 m, 1.0 m and 1.5 m with the tag face-up, face-down, edge-on and rotated 90°. A portal test should use the laundry’s actual portal or a documented equivalent, with blankets moving through in the same sack, cage or cart format used in service.

Set acceptance criteria in measurable terms. For pilot approval, a useful target is 100% reads for single dry blankets at the agreed handheld distance, at least 99% reads for dry folded stacks, and at least 98% reads for damp stacks or carts under the agreed test conditions. If the laundry’s system allows re-scan, define whether one re-pass is permitted. For high-volume rental accounting, even a 1–2% missed-read rate can create manual work, so buyers should agree the operational tolerance with the laundry before PO release.

State the load size. Example: test 50 tagged blankets folded to the production folding method; scan in stacks of 10 dry blankets, stacks of 10 damp blankets after extraction, and one cart or sack containing 50 blankets mixed orientation. For larger hotel programs, test 100 pieces across at least three cartons or production bundles. Record failed EPCs, orientation, moisture condition and whether failure follows the tag or the position in the stack.

The orientation matrix should include tag long axis parallel and perpendicular to the antenna, tag on outside fold and buried inside fold, dry and damp condition, and top/middle/bottom position in stack. If portal scanning is used, include leading edge and trailing edge orientations. The goal is not to make every impossible orientation perfect; it is to reveal the weak cases before bulk production and agree whether placement, tag size or scanning SOP must change.

Sample validation and wash-cycle protocol

For a serious hotel or laundry tender, test more than two show samples. A practical validation set is 30–50 tagged blankets from pilot production, using the approved fabric, hem, pocket, thread and tag model. For large programs, increase to 100 pieces and include multiple sewing operators or production lines. Keep control samples without RFID tags so that tag-pocket effects can be separated from normal blanket shrinkage and surface change.

Cycle checkpoints should be written into the approval plan: initial, 25 cycles, 50 cycles and 100 cycles. At each checkpoint, inspect read performance, pocket condition, stitch integrity, tag migration, fraying, dimensional change, colour change, pilling, handfeel and any hard-spot complaint. If the expected rental life is higher than 100 cycles, the buyer can extend testing, but 100 cycles is a useful filter for poor encapsulation, bad sewing margin and incompatible heat exposure.

Use the actual commercial laundry process where possible. If not available, document the substitute cycle: wash temperature, time, detergent, alkalinity, bleaching agent, bath ratio if known, extraction, drying air temperature, tunnel or press exposure and folding method. Do not mix domestic wash results with industrial laundry claims without qualification. ISO 6330 is useful for controlled comparison, but it does not automatically represent a hotel plant using tunnel washers and high-capacity dryers.

Pass/fail criteria should be explicit: no unread EPCs in single-piece dry read after each checkpoint; stack/cart read rate meeting the agreed dry and damp criteria; no duplicate EPCs; no chip cracks; no tag protrusion; no open pocket seam; no stitch breakage over 5 mm; no sharp or hard edge felt during guest handfeel review; no unacceptable puckering or distortion at the hem. If one tag fails, investigate root cause before accepting a statistical allowance because a repeated sewing or encoding error can spread through the lot.

Keep failed samples. Cut-open analysis is often necessary to determine whether the issue is antenna damage, chip fracture, water ingress, needle strike, chemical attack or software duplicate filtering. Do not let the laundry discard failed pieces during pilot testing. A photographed failure log with EPC number, cycle count and condition is more useful than a general comment such as “some tags not reading”.

Encoding, software and data security workflow

RFID is a data workflow as much as a sewing operation. Before production, confirm whether the laundry software expects GS1 SGTIN, an internal asset ID, SKU plus serial number, or another EPC structure. If GS1 SGTIN is used, the buyer must control the company prefix and item reference. If an internal ID is used, define length, allowed characters, checksum if any, and how the EPC maps to the visible label and purchase order.

Factory encoding should include duplicate prevention at three points: tag receipt scan, post-sewing scan and carton-closing scan. The mill should quarantine any unread, duplicate or wrongly encoded tag rather than overwriting it without approval. The final packing list should include EPC range or full EPC list by carton, depending on buyer software requirements. For mixed-size hotel programs, carton-level EPC files reduce receiving errors.

Decide lock and kill policy early. Many textile programs do not use the kill function in normal service because accidental killing destroys traceability. Access passwords and EPC locking may be used after validation, but locking before software acceptance can make correction slow and expensive. If privacy rules require restricted data, store only a non-personal asset ID on the tag and keep hotel, room, guest or movement data inside the laundry system, not in tag memory.

Laundry software compatibility should be tested with the buyer’s actual reader middleware. A tag can be technically ISO 18000-63 compliant and still cause workflow issues if the EPC length, prefix, filter value or file format does not match the software import rule. Test with a small encoded file before bulk sewing, then confirm that receiving, issue, return, wash count and retirement events work correctly.

For replacement tags, define the procedure. If a blanket returns with a failed tag but usable fabric, the laundry may replace the tag and assign a new EPC or re-associate the old asset record. The PO should state whether spare tags are supplied, how many are included, who encodes them, and how replacements are marked in the database. A common spare allowance is 1–2% of order quantity, adjusted by program size and laundry maintenance practice.

Procurement details buyers should not leave vague

The quotation should state whether RFID tags are included in the blanket unit price or billed separately. If billed separately, list tag cost, encoding cost, sewing cost, spare tag cost and any data-file preparation cost. This avoids disputes when the buyer later asks for factory encoding, carton-level EPC files or replacement-tag packs.

Ask for the approved tag model, dimensions, chip/antenna description, datasheet, regional tuning, temperature profile and safe sewing area before PP sample approval. If the tag supplier changes chip, antenna, encapsulation or textile carrier, require re-validation. “Equivalent RFID tag” is too broad for laundry programs because equivalence must include read performance, wash resistance, stiffness and software compatibility.

Clarify warranty language. A blanket mill can warrant sewing workmanship and conformance to approved materials, but chip survival may depend on the tag maker’s datasheet and the laundry’s actual process. A practical warranty statement ties coverage to the approved wash profile and excludes unapproved press temperatures, chemical concentrations or mechanical damage. If the buyer requires a wash-cycle warranty, define cycle count, claim method, failed-tag return process and evidence required.

Define the replacement policy. State whether failed tags during incoming inspection are replaced by the mill, whether in-service failed tags are handled by the laundry, and whether spare tags are shipped encoded or blank. If spare tags are encoded, they need their own EPC list and should not duplicate blanket EPCs. If blank, the laundry must have encoding authority and software permissions.

For inspection, combine normal blanket AQL with 100% RFID functional scanning where feasible. Visual blanket inspection may use a general AQL such as 2.5 for major defects and 4.0 for minor defects, subject to buyer agreement, but RFID uniqueness and readability are usually not good candidates for random sampling only. At minimum, every tagged blanket should pass a post-sewing read and carton-closing read before shipment. AQL guidance for blanket inspection is discussed in AQL inspection for throw blankets.

PO and specification checklist

Use the following checklist as a compact buyer specification. Adjust the numbers to the approved tag datasheet, laundry process and reader system rather than copying them blindly into every program.

Factory inspection points before shipment

During inline inspection, check the first pieces from each sewing operator against the placement diagram. Measure distance from two edges, confirm orientation, inspect stitch tension and verify that the pocket is not too tight. A tag that is forced into a short pocket may read at first but fail after repeated flexing.

During final inspection, check both textile quality and RFID function. Textile checks should cover shade, GSM, finished size, skew, hem width, pocket appearance, loose threads, stains, holes, pilling tendency and handfeel. RFID checks should include read status, EPC format, duplicate scan, carton reconciliation and comparison with the buyer’s encoding file.

For AQL inspection, classify RFID-related defects carefully. An unread tag, duplicate EPC, wrong EPC format, missing tag, wrong tag location or exposed tag should normally be treated as a major defect, and for some rental programs as critical because it breaks asset tracking. Minor pocket puckering may be acceptable only if it does not affect guest comfort, scan performance or durability.

Ask the inspector to scan cartons after packing, not only loose blankets on the table. Packing compression, folding and mixed orientation can expose marginal reads. If the buyer will receive by carton scan, the factory should simulate that workflow before shipment. For FOB or CIF shipments, keep EPC files aligned with carton marks because repacking after inspection can break traceability.

If vacuum compression is used for freight reduction, validate that compression does not bend the tag sharply or distort the pocket. Compression can reduce CBM on plush blankets, but RFID-tagged hotel waffle blankets usually need moderate packing pressure and flat folding. If a buyer is comparing packing methods, the same caution applies as in vacuum-compressed blanket costing: freight saving should not create product damage or receiving errors.

Common failure modes and how to prevent them

Unread tags after wash cycling usually come from antenna fracture, chip damage, water ingress, chemical attack, needle strike or poor encoding workflow. The prevention is not one action; it is a controlled combination of approved tag model, correct pocket size, safe sewing margin, laundry-cycle validation and 100% scan gates during production.

Duplicate EPCs are a workflow failure, not a textile failure. They happen when blank tags are encoded twice, EPC files are reused, software imports are not checked, or failed tags are replaced without retiring the old record. Prevent duplicates by assigning EPC ranges before production, scanning after encoding, scanning after sewing and reconciling at carton close.

Guest handfeel complaints usually come from tags that are too large, too stiff, placed too close to a corner grip point, or trapped inside a thick hem fold. A 320gsm waffle blanket is medium weight; it does not hide hard components as easily as a heavy sherpa or mink blanket. Always review handfeel after wash cycling because a pocket can harden or curl after heat exposure.

Fraying and pocket opening come from raw-edge label fabric, weak thread, poor stitch density, pocket too small for the tag, or abrasion at the corner. Use a stable polyester twill or woven label carrier, avoid raw exposed edges, and keep the pocket away from the exact corner. If the blanket uses white fabric, also inspect for shadowing or visible tag outline after drying and pressing.

Poor bulk reads can be caused by tag size, orientation, damp load density, reader antenna layout or software filtering. Do not solve every read issue by increasing reader power; that can create stray reads from nearby carts. First confirm tag placement consistency, EPC format, antenna distance and the actual damp-stack test matrix. Then decide whether a larger tag, different orientation or changed scan SOP is needed.

Frequently asked

What RFID protocol should be specified for hotel waffle blankets? Specify passive UHF EPCglobal Class 1 Gen 2 / ISO/IEC 18000-63 unless the laundry has a different installed system. Confirm the regional frequency band, such as 865–868 MHz for many EU installations or 902–928 MHz for the US, and validate with the laundry’s actual readers.

How much EPC memory is enough for a blanket laundry tag? Many programs use 96-bit EPC memory with GS1 SGTIN-96 or an internal asset ID. If the laundry needs user memory, state the required byte length and data map. Do not assume every textile tag has usable user memory.

Where should the RFID tag be sewn on a 320gsm waffle blanket? A practical location is near one short-side corner, usually 80–120 mm from the side edge and 60–100 mm from the bottom edge, behind a care-label carrier or in a small polyester pocket. Avoid the exact corner point because it receives high abrasion, folding pressure and handling stress.

What read rate should buyers require? For pilot approval, specify the test setup and then require 100% single-piece dry reads, at least 99% dry stack reads and at least 98% damp stack or cart reads under agreed conditions. The exact acceptance level should match the laundry’s operational tolerance and whether re-scan is allowed.

How many samples should be wash tested before bulk production? For a meaningful pilot, test 30–50 tagged blankets made with the approved fabric, hem, pocket, thread and tag. For larger tenders, 100 pieces is safer. Checkpoints at 25, 50 and 100 wash/dry cycles catch many tag, seam and heat-resistance problems before shipment.

Is ASTM D5034 the right test for the RFID pocket seam? ASTM D5034 is a fabric grab strength test. It can be used to compare base fabric strength, but it is not a seam slippage test. For the pocket seam, use a seam-specific method such as ASTM D1683 or ISO 13935-2 where suitable, plus visual inspection after wash cycling.

Should the factory or laundry encode the RFID tags? Either can work. If the factory encodes, the buyer must provide the EPC structure or allocation rule, and the factory should return an as-built EPC file by carton. If the laundry encodes, the factory should sew blank approved tags and prevent tag model mixing. Duplicate EPC prevention is required in both workflows.

Should RFID tags be included in the blanket unit price? The quotation should state this clearly. If RFID is separate, list tag cost, sewing cost, encoding cost, spare tag cost and data-file preparation cost. Ambiguous RFID costing often causes disputes after PP sample approval.
