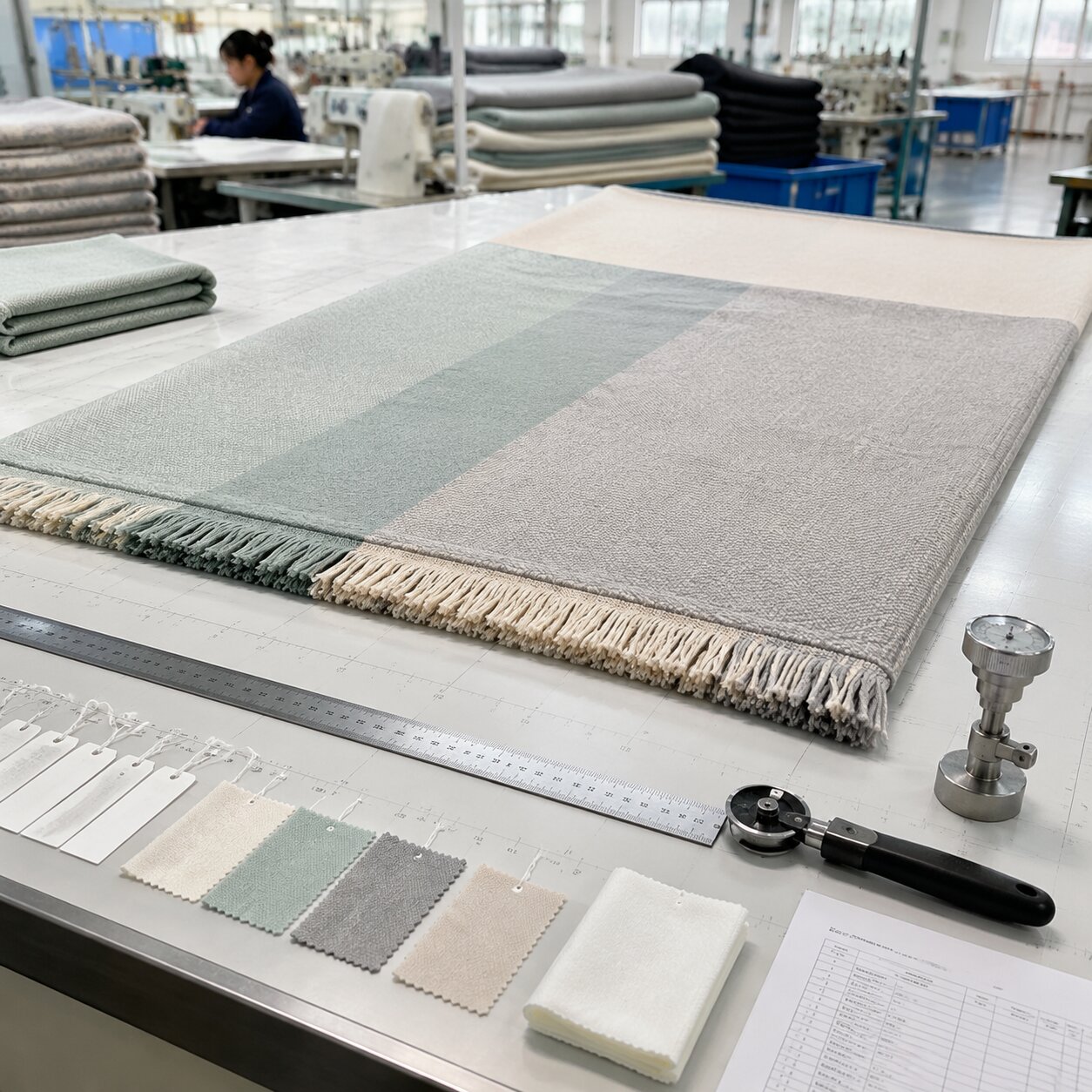

QC table with 260gsm cotton-poly knit throw marked for dimensional change measurement after tumble drying

Why dimensional change is a retail cost, not just a lab number

For hotel spa retail buyers, a 260gsm cotton-poly knit throw sits between home textile and light hospitality use. It must feel softer and more breathable than 100% polyester fleece, but it is still expected to tolerate guest washing, housekeeping handling and occasional tumble drying if the care label allows it. Cotton gives the dry, natural handfeel. Polyester helps drying time and stabilises part of the structure. The common failure mode is not tearing; it is progressive dimensional change: length loss, width tightening, edge curling, spirality, twisted hems and a care label that no longer matches the real product.

A common retail size is 130 x 170 cm or 50 x 60 in, with finished GSM around 250-270 after production relaxation. If the length direction loses 7% after washing and tumble drying, a 170 cm throw becomes about 158 cm. That is visible on a spa bed, guest room chair or retail display shelf. If width loss is uneven, the throw may look torqued even where the average tape measurement passes. FIELDLOOM treats dimensional change on cotton-poly knit throws as a development and costing item, not a final-inspection afterthought.

ISO 5077 does not control the whole test sequence. Use the standards for their correct jobs: ISO 3759 covers preparation, marking and measurement of textile specimens for dimensional-change tests; ISO 6330 specifies domestic washing and drying procedures; ISO 5077 gives the calculation and reporting of dimensional change after treatment. Conditioning is normally specified separately, commonly to ISO 139. The buyer and supplier must agree the laundering method, number of cycles and pass/fail limits.

The ISO 5077 calculation is simple but must be reported direction by direction: dimensional change (%) = ((dimension after treatment - original dimension) / original dimension) x 100. Negative values mean shrinkage. Positive values mean growth. A result of length -4.2% and width +0.5% should not be averaged into a single number. It tells the mill that the course and wale directions behaved differently.

Finished-product testing is preferable for this category. Fabric-panel testing is useful during development, but the finished throw includes hems or binding, sewn labels, cutting direction, edge tension and possible edge curling. These details can change the result. If both fabric panels and finished throws are tested, state separate limits for each; do not assume a fabric-panel pass guarantees finished-product performance.

Cost drivers behind a stable 260gsm cotton-poly knit

Shrinkage control starts before the lab. For spa throws we commonly see cotton-poly blends around 60/40, 50/50 or 40/60, using ring-spun or compact-spun cotton/poly yarns in roughly 21s-32s Ne, depending on gauge and construction. A higher cotton share improves absorbency and natural touch but raises relaxation-shrinkage risk. A higher polyester share improves dimensional stability and drying speed, but the hand can move closer to synthetic fleece if brushing or softening is overdone.

At 260gsm, the structure may be single jersey, interlock, jacquard knit, rib/waffle knit or a plated construction. Single jersey gives good drape and lower yarn consumption, but it is more prone to curling and spirality. Interlock is flatter and usually more stable, but consumes more yarn and knits slower. Waffle and thermal structures sell well for spa retail, but their raised geometry can tighten noticeably after tumble drying if the stitch length is loose. A soft showroom sample may lose 5-8% in one tumble-dry cycle if it has not been relaxed and compacted properly. A firmer engineered construction may hold within 3-5%, but the hand is less lofty.

Those ranges are not ISO requirements. They are commercial benchmarks from typical development experience with cotton/poly knits and from third-party lab reports we see during sourcing. Each mill, yarn count, dye route and finishing line can shift the result. A buyer asking for -3% maximum shrinkage on a cotton-rich waffle throw should expect development trials, not an instant bulk quote.

Heat-setting helps mainly where the fibre content and dyeing/finishing route permit. It is useful for the polyester component and for stabilising some knit geometry, but it is not a magic fix for cotton-rich shrinkage. For cotton/poly blends with a dyed cotton component, excessive heat can shift shade, flatten handfeel, change residual shrinkage and reduce the natural recovery of an elastomer-free knit. Cotton movement still depends on wet relaxation, compacting, yarn twist, stitch length, loop geometry, finishing tension and the actual laundering condition.

A practical route may include knitting, scouring/dyeing, softening, controlled drying, heat-setting where suitable, compacting or tumble relaxation, cutting, sewing, label attachment, conditioning and final measurement. Extra pre-relaxation can add handling cost and one to three production days, but it is usually cheaper than remaking goods after a shipment test failure. For colour control on cotton-rich blends, pair dimensional-change work with wash-fastness planning; see our related note on ISO 105-C06 wash fastness for cotton-rich hotel spa throws.

Realistic limits to put on the PO

Do not write “no shrinkage”. Cotton-poly knit fabric moves. ISO 5077 will report that movement; it will not decide whether the product passes. The acceptance limit must be written into the PO, technical file or approved sample agreement.

For a 260gsm cotton-poly knit throw intended for hotel spa retail, we usually discuss three commercial levels. Standard retail-safe: dimensional change after one specified ISO 6330 wash/dry cycle within -5.0% / +2.0% in both length and width. Better retail: within -4.0% / +2.0% after one cycle. Premium controlled: within -3.0% / +2.0% after one cycle, only where yarn, stitch length, density and finishing route are engineered from sampling. For three cycles, a realistic cumulative target is often within -5.0% to -6.0% / +2.0%, depending on construction and care label.

These -5%, -4% and -3% figures are not ISO limits. They are sourcing limits used to balance consumer appearance, repeatability and price. They are also partly risk-based: a spa throw is usually seen flat and folded, so small size loss is more visible than on a stretch garment. If the product is sold as a decorative throw and line-dry only, -5% after one wash may be acceptable. If it is for hotel retail with guest laundering and tumble dry allowed, -4% is a safer commercial target. If the buyer wants a premium retail promise or strict shelf-size control, -3% may be specified, but the mill must build that requirement into yarn selection, knitting density and finishing.

The benchmark changes by construction. Single jersey cotton/poly throws may need a -5% first-cycle limit unless the buyer accepts firmer handfeel and compacting cost. Interlock can often be specified at -4% with fewer disputes if yarn and finishing are controlled. Waffle or rib structures should be treated carefully: the face texture can tighten and recover unevenly, so -5% after one tumble-dry cycle and -6% after three cycles may be more realistic for mass retail. Cotton-rich blends, for example 60/40 cotton/poly, usually need more allowance than 40/60 cotton/poly. Tumble drying generally gives higher shrinkage risk than line drying.

Report length and width separately. On knitted goods this usually means wale direction and course direction, but confirm the cutting direction on the pattern. A result of -3.0% length and -6.0% width is not the same as an average of -4.5%. Buyers should also add a separate criterion for skew, spirality or torque because ISO 5077 dimensional-change percentages alone may not capture a visibly twisted throw.

Skew or spirality on a finished rectangular throw is normally handled as a buyer-defined commercial inspection criterion unless the nominated lab proposes a recognised textile method suitable for the construction. Do not describe it as part of ISO 5077. A practical commercial limit for a 130 x 170 cm throw is maximum edge or corner displacement of 3.0 cm on the 170 cm direction, or 2.0% of the measured length, whichever is lower, after the same laundering, drying and conditioning cycle. For bound or hemmed edges, also specify that no corner shall rotate enough to prevent square folding to the approved pack size.

The drying procedure can change the result more than the wash temperature. Line drying usually gives lower compaction stress. Tumble drying can tighten cotton-rich loops and expose poor relaxation. If the sold care label allows tumble drying, test tumble drying. If the sold care label says line dry only, do not approve the product using a tumble-dry failure standard unless that is an extra durability requirement you are willing to pay for.

Specify ISO 6330 details so two labs can reproduce the test

Avoid vague PO text such as “40°C normal process” or “tumble dry low heat”. Factories and labs need the exact ISO 6330 edition and procedure. ISO 6330 procedures differ by edition: machine type, programme numbering, detergent options, ballast and drying designations may not match older reports. The supplier, buyer and lab must use the same edition and the certificate must report it.

Before bulk approval, ask the nominated lab to confirm the exact test sheet. The buyer should lock at least these items: ISO 6330 edition; washing machine type; programme code and table reference; nominal wash temperature; detergent reference, for example IEC A* or another detergent agreed by the lab; whether perborate or optical brightener is included; total dry load mass; ballast fabric type and quantity; number of cycles; drying procedure; tumble-dryer temperature setting; drying endpoint; cooling time; and conditioning atmosphere before measurement.

A concrete example for a warm-wash, tumble-dry spa throw specification could read: “Dimensional change to ISO 5077:2007 after preparation and marking to ISO 3759:2011, laundering to ISO 6330:2021. Use Type A horizontal-axis reference washing machine, 4N normal programme at 40°C, IEC A* reference detergent without optical brightener unless lab protocol requires otherwise, total dry load 2.0 kg including polyester/cotton ballast to ISO 6330, one complete wash cycle followed by tumble drying to ISO 6330 procedure F, normal temperature, to dry endpoint. Condition specimens to ISO 139 at 20 ± 2°C and 65 ± 4% RH for minimum 4 hours before final measurement. Report original and final dimensions, percentage change by length and width, washer type, programme, detergent, ballast, total load, drying procedure and number of cycles.”

The example above is a starting point, not a universal care condition. Some buyers will use 30°C, three cycles, line drying, flat drying or a different tumble setting. The correct condition is the one that matches the sold care label unless the buyer separately specifies an enhanced durability stress test. A line-dry spa throw should not be rejected only because it fails a tumble-dry test that was never declared as a product requirement.

If the buyer wants a tighter technical call-out, do not copy a programme code from an old report without checking the lab’s ISO 6330 edition. Programme names and drying designations can be interpreted differently across editions and lab equipment. Ask the lab to issue a pre-test confirmation before samples are submitted. The report should identify the machine type, programme, detergent, ballast/load, drying method and number of cycles, not only say “ISO 6330”.

For US retail, align the test condition with the actual care instruction required under the FTC Care Labeling Rule, 16 CFR Part 423. The practical buyer action is to require the supplier to propose care instructions supported by testing. Do not simply impose a care label after production and then ask the lab to prove it. If the care label says “Machine wash warm, tumble dry low”, the ISO 6330 programme and drying procedure should be a reasonable technical match to that instruction. If the care label says “Machine wash cold, line dry”, a 40°C tumble-dry cycle may be used as an internal stress test, but it should not be the only basis for consumer care wording. Care-symbol wording should also be aligned with ISO 3758 where applicable; see ISO 3758 care labelling guidance.

Finished-goods measurement protocol for a 130 x 170 cm throw

For disputes, the measurement protocol must be written before testing. Finished throws should be conditioned, laid on a flat table, smoothed by hand without stretching, and allowed to relax. Do not pull corners to force the nominal size. Do not steam, press or manually square the sample before measurement unless that is part of the agreed consumer-care condition.

For a 130 x 170 cm throw, use ISO 3759 marking principles but adapt the layout to the finished article. Place gauge marks at least 100 mm from hems, bindings, overlocked edges, labels, corners or distorted zones. On a hemmed or bound throw, 150 mm from the edge is safer if the border is heavy or curled. Mark at least three length gauge pairs: left third, centre and right third. Mark at least three width gauge pairs: top third, centre and bottom third. Record each gauge distance before laundering. After treatment and conditioning, measure the same gauge distances again and calculate dimensional change for each direction.

Where the edge itself is a commercial size requirement, measure finished outer dimensions separately from ISO 3759-style gauge marks. For example, record outer length at left edge, centre and right edge, and outer width at top edge, centre and bottom edge. Use a steel rule or calibrated tape laid flat, with 1 mm readability where practical. Do not include loose tassels, pompoms or decorative fringe unless the retail size claim explicitly includes them.

Curled edges must not be stretched flat by force. If a single-jersey edge rolls, first record the condition as edge curling, then measure the relaxed visible dimension and the internal gauge marks. For bound edges, measure from the outer edge of binding for retail size but keep shrinkage gauge marks inside the bound zone. For throws with a brushed face and smoother back, take measurements on the face side unless the protocol says otherwise; use the same side before and after laundering.

For skew or torque, use a simple buyer-approved grid. Before washing, mark a centreline in the length direction and a perpendicular width line at mid-length. After laundering, drying and conditioning, place the throw flat without stretching and measure displacement of the centreline from the perpendicular reference, plus corner rotation if visible. This is a commercial visual-performance check, not an ISO 5077 calculation. Photograph the sample with a ruler after measurement for dispute evidence.

Sample quantities: development, pre-shipment and dispute testing

One sample is useful for early screening but weak for pass/fail. Cotton-poly knit throws can vary across knitting rolls, dye lots and finishing batches. Sample plans should state whether results are judged on each individual throw or on the average, and how an outlier is handled.

For development sampling, test at least two finished throws per colour or per construction. If colours use different dye classes or finishing routes, do not assume the white sample represents navy, black or yarn-dyed melange. Keep one unwashed control sample and one washed sample set. For new yarn, new knitting construction or premium -3% target, three pieces is safer.

For pre-production approval, test three finished throws from the pilot lot or salesman sample lot. FIELDLOOM normally wants the average of three to meet the limit, with no individual throw exceeding the limit by more than 1.0 percentage point. Example: if the limit is -4.0%, the average must be no worse than -4.0% and no single throw should be worse than -5.0%. If the buyer wants every individual piece to pass the limit exactly, state that clearly and expect more conservative production settings.

For pre-shipment or bulk-lot verification, select at least three finished throws from packed goods, spread across cartons and production dates where possible. For orders above several thousand pieces or mixed colours, test one set per colour family or per dye lot if the risk is high. Where third-party lab cost is a concern, internal factory wash tests can screen each lot, with external lab testing reserved for nominated colours or the first shipment.

For dispute testing, retain sealed counter samples. A fair dispute protocol is six pieces: three from buyer-retained goods and three from factory-retained goods, tested by the nominated lab under the PO method. If one piece is an extreme outlier caused by an obvious sewing defect, measurement error or wrong sample selection, the lab should report it rather than silently discard it. The PO should say whether retesting is allowed and who pays if the retest confirms failure.

Inspection controls before the lab result

Dimensional change should be controlled through production, not discovered after packing. A useful factory control plan for cotton-poly knit spa throws includes incoming greige relaxation, fabric GSM, stitch density, finished width, compacting settings, sewing tension, finished-size checks, internal laundering and carton traceability.

Incoming fabric should be relaxed before cutting. A typical internal check is to let knitted rolls relax flat or on loose rolls for 12-24 hours after finishing, longer if the fabric arrived under high tension or after compacting. Measure roll width and GSM after relaxation, not only immediately off the finishing line. A 260gsm target might be controlled as 250-270gsm finished unless the buyer specifies a tighter range. If the fabric drops below target GSM after relaxation, the throw may feel thin and still shrink because the loop structure is open.

Finished-size tolerance before wash must include expected residual shrinkage. For a 130 x 170 cm labelled throw with -4% allowed shrinkage, do not cut bulk exactly at the minimum retail size unless the buyer accepts smaller after washing. A practical pre-wash finished tolerance might be 132 x 173 cm ±2 cm, but this depends on pack size, edge finish and target after-wash dimension. The PO should state both pre-wash finished size and after-wash dimensional-change limit.

Keep wash-test retention samples by lot. At minimum, retain one unwashed and one internally washed sample per colour/lot until shipment acceptance. For higher-risk colours or constructions, retain three unwashed pieces. Attach records showing roll number, cutting table, sewing line, carton range and internal wash-test result. If cartons from two dye lots are mixed without traceability, a failed lab result becomes much harder to isolate.

Final inspection can use AQL for visual and dimensional defects, but AQL sampling does not replace lab shrinkage testing. Use AQL 2.5 for major defects and AQL 4.0 for minor defects if that matches the buyer’s quality manual, with critical defects at 0 acceptance. Major defects should include wrong finished size beyond tolerance, severe skew, twisted binding, broken stitching, wrong care label and shade lot mixing. For a broader checklist, see blanket quality control inspection and AQL inspection for throw blankets.

MOQ and cost impact of tighter shrinkage limits

A tighter shrinkage limit changes the product, not only the test report. Moving a 260gsm cotton-poly knit throw from a -5% limit to a -3% limit may require a different yarn blend, tighter stitch length, higher fabric density, compacting, tumble relaxation, additional sampling and more fabric allowance. The buyer may gain better after-wash size stability but lose some loft, drape or low-price advantage.

Yarn choice is the first cost lever. Compact-spun yarns, lower hairiness yarns or better-controlled cotton lots usually cost more than commodity open-end yarns. A 40/60 cotton/poly blend may stabilise better than 60/40 but changes handfeel and marketing copy. If recycled polyester is requested, confirm lot consistency and certification scope separately; dimensional stability still depends on yarn and finishing, not the recycled claim alone. For recycled sourcing documentation, see GRS documentation guidance for recycled blankets.

Construction is the second lever. Interlock or denser waffle may need more yarn per square metre than single jersey. If the buyer fixes 260gsm but asks for lower shrinkage, the mill may need to tighten stitch length and rebalance finishing, which can reduce bulk. If the buyer fixes handfeel first, GSM may need to rise slightly to keep the same perceived weight after compacting.

Finishing time is the third lever. Relaxation, compacting and controlled drying reduce risk but reduce line speed and raise handling cost. Extra test washes take calendar time: one ISO-style wash and drying cycle can consume a day including conditioning and measurement; three cycles can push approval by several days. For urgent retail launches, build this into the sampling schedule. General timing factors are covered in custom blanket lead times and shipping.

MOQ can rise when tighter limits require special yarn purchase, dedicated knitting settings or separate finishing trials. A commodity cotton/poly throw may be practical at a lower MOQ if the mill can use existing yarn and standard finishing. A premium -3% shrinkage programme may need several hundred kilograms of yarn per colour or construction to run efficiently, plus trial wastage. Small orders can still be made, but the unit price may include development cost, lab cost and higher cutting allowance. Buyers planning small launches should compare this with low MOQ blanket sourcing before locking a premium shrinkage target.

PO-ready wording for dimensional-change control

The following wording is practical for a cotton-poly spa throw PO. Adjust edition numbers and procedures to match the nominated lab’s confirmation before order release.

Product specification: “260gsm nominal cotton/poly knit spa throw, size 130 x 170 cm, finished GSM tolerance 250-270gsm after production conditioning, blend and construction as approved sample. Finished pre-wash size tolerance: length and width ±2.0 cm unless otherwise approved. Care label to match validated laundering condition.”

Test method: “Dimensional change shall be tested on finished throws according to ISO 5077 after marking/preparation to ISO 3759 and laundering/drying to ISO 6330:2021, using the exact washer type, programme, detergent, ballast, loading mass, drying procedure, number of cycles and conditioning condition stated in the approved lab pre-test sheet. Specimens shall be conditioned to ISO 139 before final measurement. The test report must state ISO editions used.”

Acceptance limit: “After one specified wash/dry cycle, dimensional change shall be within length -4.0% / +2.0% and width -4.0% / +2.0%, calculated separately. Average of three tested finished throws must pass. No individual throw may exceed the shrinkage limit by more than 1.0 percentage point. Edge curling, skew or torque shall not exceed 3.0 cm over the 170 cm length or 2.0% of measured length, whichever is lower.”

Retest rule: “If the first test fails, one retest may be conducted only where sample selection, lab handling or reporting error is reasonably suspected. Retest shall use six finished throws from sealed retained bulk samples, tested by the buyer-nominated lab. If retest confirms failure, supplier shall submit corrective action and buyer may reject, rework, relabel care instructions where legally and commercially acceptable, or renegotiate shipment at buyer’s discretion.”

Lab nomination and cost: “Testing shall be performed by the buyer-nominated third-party laboratory or another laboratory approved in writing before testing. Supplier pays routine approval testing unless otherwise agreed. If dispute testing confirms failure, supplier bears retest cost and any agreed corrective cost. If dispute testing passes, buyer bears retest cost unless the contract states otherwise.”

Traceability: “Supplier shall retain unwashed and internally washed reference samples by colour and production lot. Bulk cartons shall be traceable to colour, dye lot, fabric roll range and sewing date. Goods shall not ship until dimensional-change test report and internal wash-test records are approved.”

Common failure modes and corrective actions

Length shrinkage beyond limit usually points to fabric relaxation, stitch length, finishing tension or drying compaction. Corrective actions include longer greige relaxation, adjusting stitch length, compacting, controlled tumble relaxation before cutting or revising the care label to line dry if the product is not suitable for tumble drying.

Width growth with length shrinkage can occur when a knit relaxes from production tension. The throw may become shorter and wider, making the retail fold look squat. The correction is not always to cut narrower; the mill should review knitting width, finishing overfeed and compacting balance.

Skew and spirality come from yarn twist, loop distortion, fabric tension, cutting misalignment or single-jersey instability. Corrective actions include using balanced yarn, changing construction to interlock or plated knit, relaxing fabric before cutting, aligning cutting direction, reducing sewing tension and avoiding asymmetric binding pull.

Edge curling is common on single jersey and some lightweight plated structures. A heavier hem can hide it but may shrink differently from the body. Binding can stabilise the edge but adds sewing cost and can torque the throw if applied under uneven tension. If a flat spa-bed presentation is critical, do not approve a raw or lightly overlocked single-jersey edge without wash testing.

Shade and shrinkage can interact. Dark colours may be processed differently from light colours, with longer dye cycles, different softener pick-up or different drying tension. Navy, black and saturated spa colours should be tested separately if they use a different dye route. For rubbing and colour transfer risk on dark textile goods, buyers can also review ISO 105-X12 rubbing fastness and AATCC 8 crocking risk control.

Buyer checklist before approving bulk

Confirm product: blend, yarn count range, construction, nominal GSM, finished size, edge finish, face/back identification and care label.

Confirm test sequence: ISO 3759 marking, ISO 6330 edition and exact wash/dry procedure, ISO 5077 calculation, ISO 139 conditioning, number of cycles and nominated lab.

Confirm limits: length and width limits separately, plus skew/torque and edge-curling criteria if appearance matters.

Confirm sampling: number of finished throws, colours/lots covered, average versus individual pass rule, outlier handling and retained samples.

Confirm inspection: incoming fabric relaxation, GSM control, finished-size tolerance before wash, internal wash records, AQL defect classification and carton traceability.

Confirm commercial impact: whether the target is -5%, -4% or -3%; whether the buyer accepts firmer handfeel or higher GSM; whether extra sampling, lab cost and lead time are built into the order.

FIELDLOOM can build cotton-poly knit spa throws to different commercial shrinkage levels, but the target must be chosen before yarn and knitting are locked. The cheapest soft sample and the tightest after-wash dimension are rarely the same product.

Frequently asked

Does ISO 5077 set the pass/fail shrinkage limit for cotton-poly throws? No. ISO 5077 gives the calculation and reporting method for dimensional change. The buyer must specify the laundering method, drying method, number of cycles and acceptance limit in the PO or technical file.

What shrinkage limit is realistic for a 260gsm cotton-poly spa throw? For many 260gsm cotton-poly knit throws, -5% after one specified wash/dry cycle is a practical standard retail limit, -4% is a better retail target, and -3% is a premium controlled target requiring engineered yarn, construction and finishing. These are commercial benchmarks, not ISO requirements.

Should the test use tumble drying? Only if the sold care label allows tumble drying, or if the buyer separately specifies tumble drying as an enhanced durability stress test. A product labelled line dry only should be tested against the line-dry care condition for consumer-care validation.

How many samples should be tested before shipment? For pre-production approval, three finished throws is a practical minimum. For pre-shipment verification, select at least three finished throws from packed goods, spread across cartons and production lots. High-risk colours, new constructions or premium shrinkage limits may need more samples.

Can fabric-panel shrinkage testing replace finished-throw testing? No. Fabric-panel testing is useful during development, but the finished throw includes hems, binding, labels, cutting direction and sewing tension. For retail approval, finished-product testing is safer.

Is skew or spirality part of ISO 5077? No. ISO 5077 reports dimensional change percentages. Skew, torque or spirality should be specified as a separate buyer-defined commercial criterion, or tested by a recognised method nominated by the lab if suitable for the product.

Why do two lab reports sometimes give different shrinkage results? The usual reasons are different ISO 6330 editions, washer types, programmes, detergent, ballast, loading mass, drying procedure, number of cycles, conditioning time or measurement layout. The PO should lock these details and require the lab to report them.

Does tighter shrinkage control increase MOQ or price? Often yes. A tighter limit may require better yarn, denser construction, compacting, relaxation, additional trial runs, higher cutting allowance and extra lab testing. It can also increase MOQ if special yarn or dedicated finishing is needed.
